Name: Surveying Equipment 2 SOUTH NTS 362R Total Station
Brand: SOUTH
Price: 1 USD

Home > Vacuum Equipment >

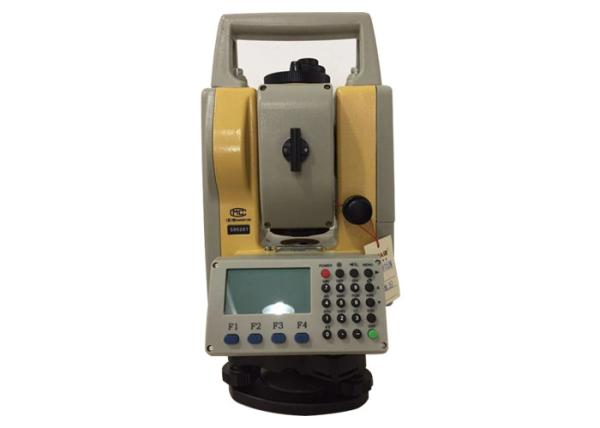

Surveying Equipment 2" SOUTH NTS 362R Total Station

Categories	Total Station Survey Instrument
Brand Name:	SOUTH
Model Number:	NTS-362R6LNB
Place of Origin:	China
MOQ:	1PC
Price:	USD
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100pcs per month
Delivery Time:	two weeks after confirmation
Packaging Details:	plastic case + carton box
color:	Yellow/Gray
accuracy:	2"
prismless range:	600m
compensator:	dual axies compensator
water/dust proof class:	IP54
battery:	rechargeable lithium battery

Contact Now

Add to Cart

Company Info.

GEO-ALLEN CO.,LTD.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

SOUTH Brand NTS-362R6L with 2" accuracy Total station for surveying equipment

Model	NTS362R6L
Distance Measurement
Max.Range		Reflectorless		600m
		Single prism		5.0km
		3 prism		8.0km
Accuracy		Reflectorless	Fine	5+2ppm
			Tracking	10+2ppm
		Reflector	Fine	2+2ppm
			Tracking	5+2ppm
			IR-sheet	5+2ppm
Reading				Max:99999999.9999 m Min:0.1 mm
Measuring Time		Reflectorless		Fine mode: <1.2s ; Tracking mode:0.5s
		Reflector		Fine mode: <1.2s ; Tracking mode:<0.5s IR sheet mode:<1.2s
Atmospheric Correction				Manual input, Auto correction
Prism Constant				Manual input, Auto correction
ANGLE MEASUREMENT
Measuring method				Absolute continuous
Diameter of Raster Disk				79mm
Minimum reading				1″/ 5″Selectable
Accuracy				2"
Detection method				Horizontal:Dual /Vertical:Dual
TELESCOPE
Image				Erect
Tube length				154mm
Effective aperture				45mm,(EDM:50mm)
Magnification				30×
Field of view				1°30′
Minimum Focusing Distance				1m
Resolving Power				3″
AUTO COMPENSATOR
System				Dual axis Liquid-electric
Working range				±3′
Accuracy				1″
VIAL
Plate vial				30″/2mm
Circular vial				8′/2mm
OPTICAL PLUMMET
Image				Erect
Magnification				3×
Focussing range				0.5m~∞
Field of view				5°
ON-BOARD BATTERY
Type				Rechargeable Li-on battery
Voltage				DC 6v
Continuous operation time				8 hrs
OTHERS
IP stand				IP 65
Display				LCD,6 lines,digital
Data storage		Internal memory		2M,ready for 17,000 data blocks
		External memory		SD card 2GB, ready for approx,17,000,000 data blocks
Temperature				-20°~+50℃
Dimension and Weight				160×150×330mm, 5.2kg
