| Categories | Conveying Hoisting Machine |
|---|---|
| Place of Origin: | Henan, China |
| Brand Name: | ZTIC |
| Supply Ability: | 100.0 Set/Sets per Month |
| Packaging Details: | Standard packing or according to customer's requirement |
| MOQ: | >=1 Sets |
| Price: | $5,000.00 |
| Model Number: | Conveying Hoisting Machine |
| Certification: | ISO/CE |
| Name: | Inclined Bulk Material Belt Conveying Hoist |
| Capacity: | 40-1200t/h |
| Applicable Industries: | Manufacturing Plant, Construction works , Energy & Mining |
| Local Service Location: | Viet Nam, Indonesia, Australia, Argentina |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Belt width: | 400-1200mm |
| Belt speed: | 1.3-2m/s |
| Warranty: | 1.5 years |
| Port: | qingdao, tianjin, shanghai |
| Company Info. |
| Luoyang Zhongtai Industries CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

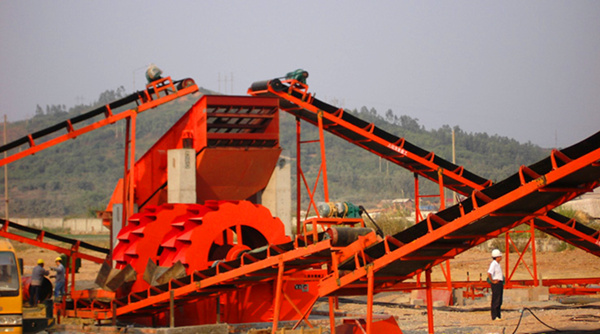

Belt Conveyor Description:
This series belt conveyor series has a feature of large capacity,
simple structure, easy maintenance, standardized components. It is
widely used in mining, metallurgy industry to transport both of
bulk materials and end products.
According to different technology it can be used in single,
multiple or combined with other equipment to form horizontal or
incline transportation system to satisfy different production line
arrangement needs. It works with environment temperature range
-20-+40oC, material temperature below 50oC.
Belt Conveyor Features:
Large capacity, simple structure, easy maintenance
| Belt Width (mm) | Belt Length/Power (m/kw) | Belt Speed(m/s) | Capacity (t/h) | ||||
| 1L/KW | 11L/KW | 111L/KW | |||||
| B400 | ≤12/1.5 | 12-20/2.2-4 | 20-25/3.5-7.5 | 1.3-1.6 | 40-80 | ||
| B500 | ≤12/3 | 12-20/4-5.5 | 20-30/5.5-7.5 | 1.3-1.6 | 80-190 | ||
| B650 | ≤12/4 | 12-20/5.5 | 20-30/7.5-11 | 1.3-1.6 | 130-320 | ||
| B800 | ≤6/4 | 6-15/5.5 | 15-30/7.5-15 | 1.3-1.6 | 280-550 | ||
| B1000 | ≤10/5.5 | 10-20/7.5-11 | 20-40/11-12 | 1.3-2 | 440-850 | ||
| B1200 | ≤10/7.5 | 10-20/11 | 20-40/15-30 | 1.3-1.6 | 660-1200 | ||

|   |
