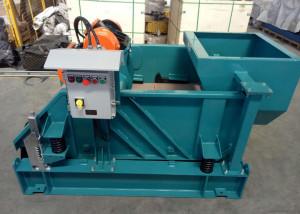

Energy Field Hunter Angle Adjustment Drilling Shale Shaker

Aipu Hunter Angle Adjustment Shale Shaker On Tank For Civil Or Energy Field

Why Aipu Hunter series shale shaker is your optimal choice

• Italy's brand motor, standard brand is OLI, Martin, or Ital-Vibras motor as an option.
• Max G force reaches to 7.5G, G force adjustable depending on drilling mud conditions.
• Heat treatment of shaker deck for steady working, Stainless Material for shaker deck bottom.
• Heavy anticorrosive painting on shaker service, 3 layer painting.
• Wedge type screen and hook strip screen both available to suit client requirements.
• Mechanical deck angle adjustment for steady and reliable performance.
• Standard options: IECEX, ATEX, UL, DGMS, CE, Gost.
• Top brand of the electrical control panel, Siemens/Schneider brand main components.
• Composite material screen available for longer service life.
• Shaker screens have got to the API RP 13C compliance test. The only one supplier in China with an API RP 13C compliance test report.

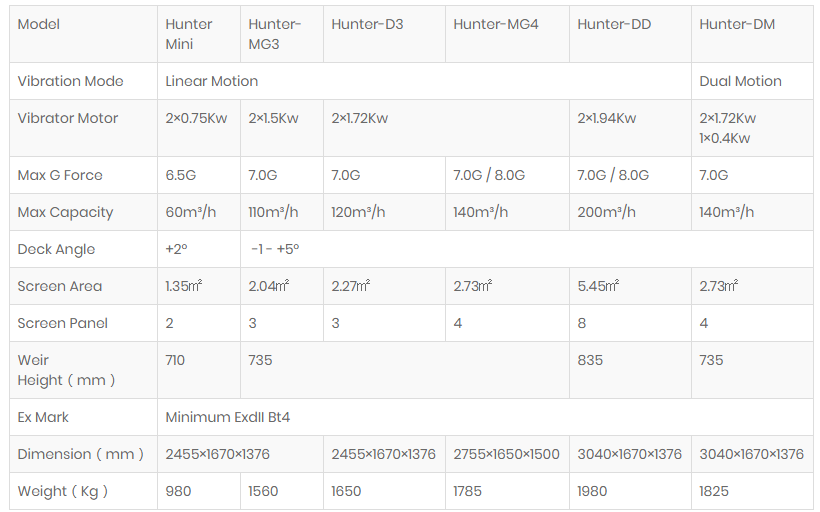

Technical parameters of Aipu Hunter shale shaker

The Core spare parts of shale shaker

The screen for shaker can be a normal one made from S.S wire cloth, which also can be the polyurethane panel. The polyurethane screen panels can provide better water or fluids separation effect. Polyurethane screens last longer than the stainless steel screen panel, too
Screen opening size or the aperture is flexible to select. Ranged from 1mm to o.053mm. Furthermore, the screens can be fit by pins or the hook on the shaker.

Shale shaker is the kernel device in any solids removal program. Screens as the most cost spare part of shale shakers are very concerned by engineers. For maximum efficiency, the solids on the screen surface must travel in a predetermined pattern "spiral, elliptical, orbital or linear motion" in order to increase particle separation efficiency and reduce blockage of the screen openings. So both screen cloth and frame must be reliable to fit different solids in various drilling circumstances. Generally, the materials of screen cloth are stainless steel and polyurethane. There mainly has two materials component screen frame: steel, composite frame.
We, Aipu solids control has 18 years of experience manufacturing shale shaker screen. Our Screen has been tested under API RP13C. We are only a China screen manufacturer who got an API RP13C compliance report. Trust the accurate cut point will lead to better performance and longer service life of the screen. Contact us directly for any shaker screen, customized or interchangeable with another famous brand.

Shale Shaker spring types and features

Most of the spring is made of high-quality special spring steel. However, some of the springs or we call it as float amount/absorber is made of rubber or combined rubber and steel. For example, ️ shakers and cleaners will be mounted with a rubber. While NOV Brandt and M-I SWACO utilize the steel spring.
Even for springs made of the same material, there are different types. Such as steel springs φ76x180x6mm thickness, and φ85x150x8mm. For springs made of rubber, there are springs installed lateral or vertical and rubbers with different hardness.

Please feel free to contact Aipu for any solids control demand, you'll get the optimal solution

AIPU Solids control is professional manufacturer on solids control equipment and system. The solution for drilling mud process as well as the drilling waste management, and the oli sludge treatment system.

All items can be used in oil and gas drilling, the oil sludge treatment, the HDD mud recycling, the civil construction micro tunnelling, the piling and so on. The main equipment inlcuding solids control system, shale shaker, mud cleaner, centrifgue decanter, degassers, agitator, mud gun, centrifugal pumps, mud tank, cuttings dryer, the mud cooling system and so on.

Pleased to say AIPU products have been delivered to many regions and conturies around the world. Including Germany, Russia, USA, UK, Kuwait,  UAE, India, Indonesia, Malaysia, Singapore, Taiwan, and so on.

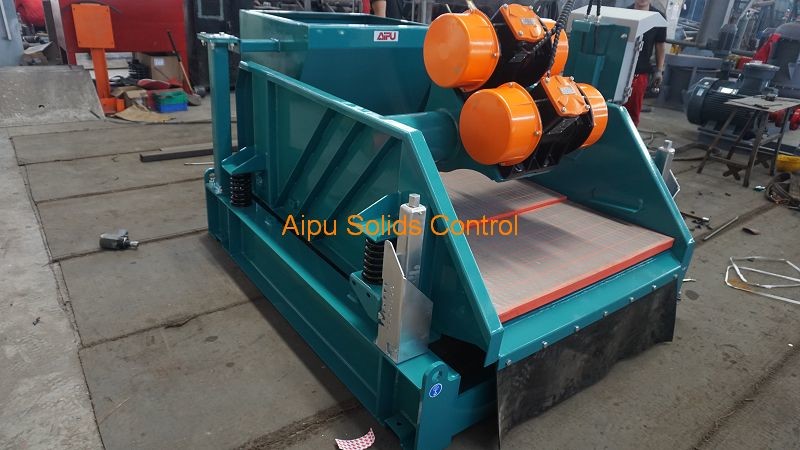

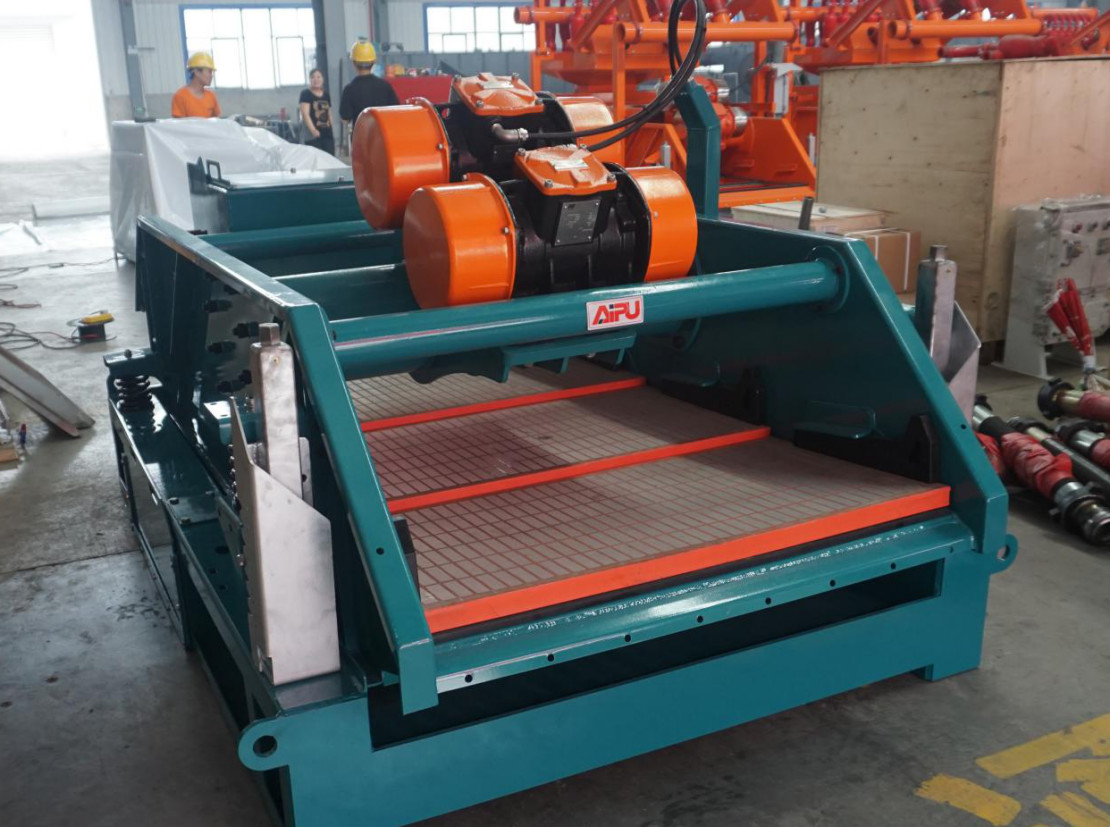

Our hot sales product Hunter series shale shaker is rather popular with all of our clients. The Hunter-MG and Hunter-D shale shakers can be configured as linear motion, BEM or the dual motion. For the decks, they can be double deck. For the base, they can be dual tandem or triple tandem

Another hot sales products Hunter seires mud cleaner is maintained all the good features of Hunter series shaker. And the hydrocylones are all made of high quality polyurethane. Another feature is the cones are interchangeable with famous brand ones.

Besides the shale shaker and mud cleaner, there are centrifugal pumps, mud agitators and so on equipment appreciated by our clients. New innovated mud cooling system for land oil drilling is a patented products used in SINOPEC drilling site. The performance surprised end users.
