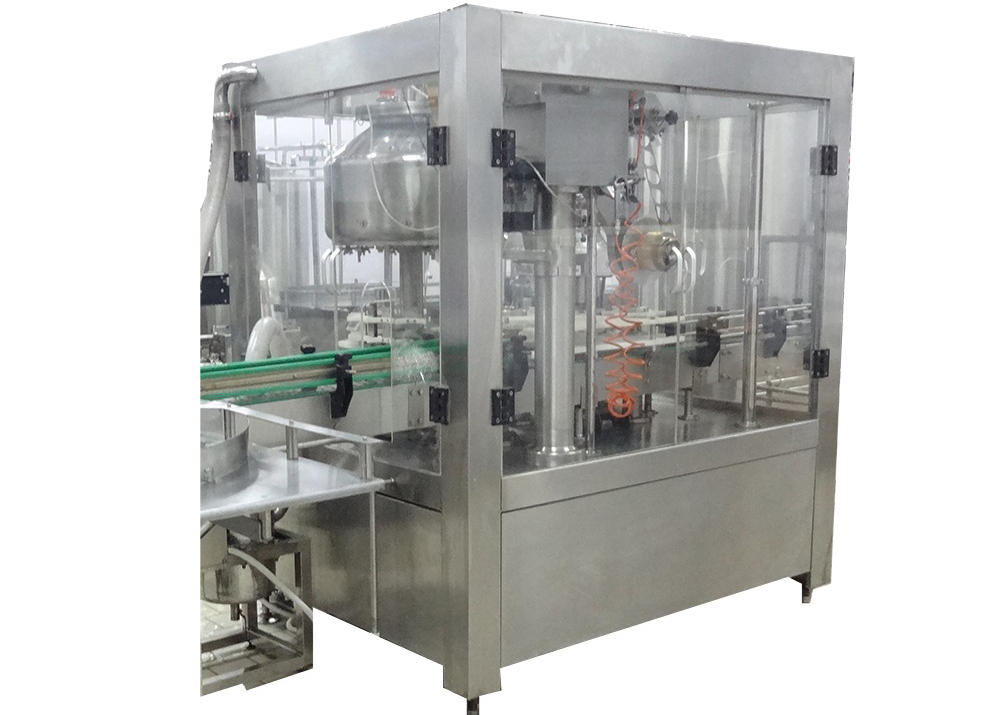

5000-30000 BPH Automatic Washing Filling Capping Machine

High Speed Aseptic Juice Filling Machine / Automatic Washing Filling Capping Machine

General description:

The machine is mainly used for washing/filling/capping PET bottle juice, tea drinks and all kinds of energy drink for hot filling. Only need to change a few spare parts, that can suitable for filling pure water and mineral water.

Features:

1. Highly effective spraying nozzles equipped on the rinsing-clamp can rinse every side of inner bottle and save water.
2. Accessories which contact with material are all made of stainless steel, no dead angles and easy to clean up.
3. Bottling volume can be controlled by membrane adjusting valves to ensure accurate filling.
4. Valve on-off system is driven by hydraulic cylinder, which starts on bottle signals.

5. Juice production line with compact structured, good-looking, easy to operate and highly automated.
6. Air conveyor is directly linked with feed-in starwheels, making it easier to change bottles without screws and conveyor chains.
7. Bottles are transferred in the manner of hanging neck. Bottles can be changed through some replacement, which instead of adjusting the height of machine.
8. Rinsing-clamp which special design is strong and endurable, no contact with bottle-mouth, to prevent pollution.
9. Highly effective cap sorting and feed in system is protective for feed in and cap absence.
10. Equipped with overload system to safeguard machine and operators.
11. Touch screen operated.
12. High-speed and highly accurate bottling valves ensure no loss of liquid at high speed.
13. Equipped with CIP clean-in-place return pipeline.
14. Bottom splint which fixed in the feed-out starwheel goes down in the manner of screw. Bottles can be changed without adjustment of height of conveyor chain.
15. Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage.
16. Main electronic components ( touch screen, PLC and frequency inverter) are imported products.

Structure:

1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing pump.
2. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
3. Capping system: Combined with capper, cap sorter and cap falling track.
4. Driving system: Combined with main motor and gears.
5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
6. Electrical controlling system: This part is frequency inverted, PLC controlled and touch screen operated.
