| Categories | Shutter Door Roll Forming Machine |
|---|---|
| Brand Name: | OEM |
| Certification: | CE;ISO |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
| Delivery Time: | 40days |
| Packaging Details: | Standard Export Packing |
| Machine Size:: | 5.6*1.2*1.5m |
| Thickness of matrial: | 0.5-1mm |
| Forming steps: | 12 steps |
| Control system: | PCL program |
| name: | Roller Shutter Door Roll Forming Machine |
| Warranty: | 12 month |

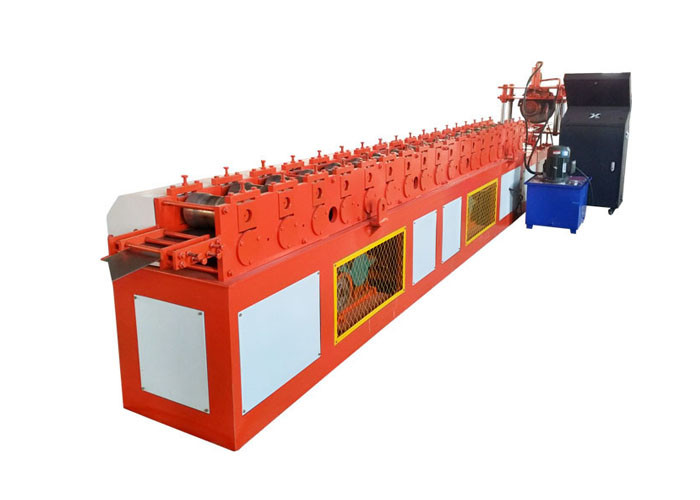

12mm Side Board Automatic Rolling Shutter Machine , Door Panel Roll
Forming Machine
Description
---- Cr 12 cut blade, controlled by PLC through hydraulic cylinder.
---- 12mm side board to ensure accuracy of production.
---- The roller is made of high graded 45# steel, with hard chorme
plating.
---- PLC control box can programing the length and quantity of the
slat you want to produce.
parameters
| Suitable Material | Colored Steel plate, Galvanized Board, Aluminum Plate | |
| Thickness | 0.3-0.8mm | |
| Color | As you like | |
| Appearance size (About) | 5.0*0.8*1.3m | |
| Rows of rollers | 12 rows | |
| Rolling material | 45# steel,roller surfaces polishing, hard plating | |
| Diameter of shaft | 38mm | |
| Total power | 4 KW | |
| Productivity | 15-20m/min | |
| Cutter material | Cr12 Heat Treatment | |
| Electronic control system | PLC, Touch Screen, Encoding counter | |
| Machine Components | ||
| No. | Name | QTY |
| 1 | Manual uncoiler | 1 set |
| 2 | Feeding and leveling device | 1 set |
| 3 | Roll forming system | 1 set |
| 4 | Hydraulic punching and cutting | 1 set |
| 5 | Product support frame | 1 set |
| 6 | PLC Control System | 1 set |
Our service
1. Warranty :One year,and we will provide technical support for
whole life of the equipment
2. Delivery time: Within 30 days after deposit receipt your payment
3. Guarantee period: 12months free service
4. Installation and training
If buyers visit our factory and check the machine, we will teach
you how to install and use the machine and also train your
workers/technician face to face
Without visiting,we will send you user manual and video to teach
you to install and operate.
If buyer needs our technician to go to your local factory,please
arrange board and lodging and other necessary things
|
