| Categories | Brazed Inserts |
|---|---|
| Brand Name: | OEM |
| Model Number: | customized |
| Certification: | ISO9001 |
| Place of Origin: | Zhuzhou City, Hunan Province, China |
| MOQ: | 10 pcs |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 50,000 pcs per month |
| Delivery Time: | 5-20 working days, to be negotiated |
| Packaging Details: | plastic box inside and paper box outside |
| Material: | Tungsten Carbide |
| Type: | Milling inserts |
| Grade: | YP730, YP731 |
| Coating: | PVD |
| OEM: | Accepted |
| ODM: | Accepted |
| Color: | Light Purple |
| Use: | Finishing, Semi Finishing For Stainless Steel Machining |

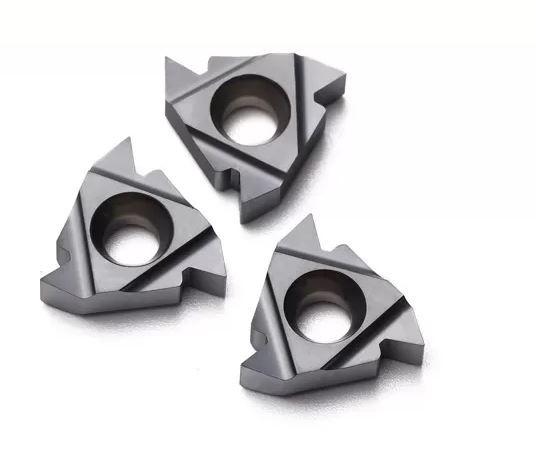

What is tungsten Carbide threading inserts?
Carbide threading inserts are the most common material type, as they allow for higher
cutting speeds than tool steel and can retain a sharper cutting edge. Available as external
or internal threading inserts, they usually fit into a right-hand toolholder that is specifically
designed to accept inserts.
| Type | Dimensions(mm) | |||||
| ISO External Threading | ||||||
| Right hand inserts | Left hand inserts | Pitch | S | φI.C | φd | |
| 16ER-0.50ISO | 16EL-0.50ISO | 0.50 | 3.52 | 9.53 | 4.4 | |
| 16ER-0.75ISO | 16EL-0.75ISO | 0.75 | 3.52 | 9.53 | 4.4 | |
| 16ER-1.00ISO | 16EL-1.00ISO | 1.00 | 3.52 | 9.53 | 4.4 | |
| 16ER-1.25ISO | 16EL-1.25ISO | 1.25 | 3.52 | 9.53 | 4.4 | |
| 16ER-1.50ISO | 16EL-1.50ISO | 1.50 | 3.52 | 9.53 | 4.4 | |
| 16ER-1.75ISO | 16EL-1.75ISO | 1.75 | 3.52 | 9.53 | 4.4 | |
| 16ER-2.00ISO | 16EL-2.00ISO | 2.00 | 3.52 | 9.53 | 4.4 | |
| 16ER-2.50ISO | 16EL-2.50ISO | 2.50 | 3.52 | 9.53 | 4.4 | |
| 16ER-3.00ISO | 16EL-3.00ISO | 3.00 | 3.52 | 9.53 | 4.4 | |
| 22ER-3.50ISO | 22EL-3.50ISO | 3.50 | 5.56 | 12.7 | 5.5 | |
| 22ER-4.00ISO | 22EL-4.00ISO | 4.00 | 5.56 | 12.7 | 5.5 | |
| 22ER-4.50ISO | 22EL-4.50ISO | 4.50 | 5.56 | 12.7 | 5.5 | |
| 22ER-5.00ISO | 22EL-5.00ISO | 5.00 | 5.56 | 12.7 | 5.5 | |
| 22ER-5.50ISO | 22EL-5.50ISO | 5.50 | 5.56 | 12.7 | 5.5 | |
| 22ER-6.00ISO | 22EL-6.00ISO | 6.00 | 5.56 | 12.7 | 5.5 | |
| Wyeth External Threading | ||||||
| 16ER-8W | 16EL-8W | 8 | 3.52 | 9.525 | 4.4 | |
| 16ER-9W | 16EL-9W | 9 | 3.52 | 9.525 | 4.4 | |
| 16ER-10W | 16EL-10W | 10 | 3.52 | 9.525 | 4.4 | |
| 16ER-11W | 16EL-11W | 11 | 3.52 | 9.525 | 4.4 | |
| 16ER-12W | 16EL-12W | 12 | 3.52 | 9.525 | 4.4 | |
| 16ER-14W | 16EL-14W | 14 | 3.52 | 9.525 | 4.4 | |
| 16ER-16W | 16EL-16W | 16 | 3.52 | 9.525 | 4.4 | |
| UN External Threading | ||||||
| 16ER-8UN | 16EL-8UN | 8 | 3.52 | 9.525 | 4.4 | |
| 16ER-10UN | 16EL-10UN | 10 | 3.52 | 9.525 | 4.4 | |
| 16ER-12UN | 16EL-12UN | 12 | 3.52 | 9.525 | 4.4 | |
| 16ER-14UN | 16EL-14UN | 14 | 3.52 | 9.525 | 4.4 | |
| 16ER-16UN | 16EL-16UN | 16 | 3.52 | 9.525 | 4.4 | |
| 16ER-18UN | 16EL-18UN | 18 | 3.52 | 9.525 | 4.4 | |
| 16ER-20UN | 16EL-20UN | 20 | 3.52 | 9.525 | 4.4 | |
| Partial Propfile 55° 60° External Threading Inserts | ||||||
| Right hand inserts | Left hand inserts | Pitch(inch) | S | φI.C | φd | a° |
| 16ER-A60 | 16EL-A60 | 0.5-1.5(48-16) | 3.52 | 9.525 | 4.4 | 60 |
| 16ER-G60 | 16EL-G60 | 1.75-3.0(14-8) | 3.52 | 9.525 | 4.4 | 60 |
| 16ER-G60P* | 16EL-G60P* | 1.75-3.0(14-8) | 3.52 | 9.525 | 4.4 | 60 |
| 16ER-AG60 | 16EL-AG60 | 0.5-3.0(48-8) | 3.52 | 9.525 | 4.4 | 60 |
| 16ER-N60P* | 16EL-N60P* | 3.5-5.0(7-5) | 5.56 | 12.7 | 5.5 | 60 |
| 16ER-A55 | 16EL-A55 | 0.5-1.5(48-16) | 3.52 | 9.525 | 4.4 | 55 |
| 16ER-G55 | 16EL-G55 | 1.75-3.0(14-8) | 3.52 | 9.525 | 4.4 | 55 |
| 16ER-G55P* | 16EL-G55P* | 1.75-3.0(14-8) | 3.52 | 9.525 | 4.4 | 55 |
| 16ER-AG55 | 16EL-AG55 | 0.5-3.0(48-8) | 3.52 | 9.525 | 4.4 | 55 |
| 16ER-N55P* | 16EL-N55P* | 3.5-5.0(7-5) | 5.56 | 12.7 | 5.5 | 55 |
| YP730 | For finishing and semi finishing of stainless steel and high temperature alloy. | PVD coating |
| YP731 | It's universal and suitable for the processing of stainless steel and high temperature alloy. | PVD coating |
1. Produced with advanced equipments and process
2. High quality with competitive price.
3. Large stock available.
4. Small order is also welcomed.
5. We have more than 10 years experience.
6. 100% inspection before shipment to make sure qualified products and no more or less than order
7. Quality control and delivery on time.
8. Offer together with tool holder
|
