G Series Visible Spectrophotometer Visible Spectrophotometry Instrument

Categories	Laboratory Test Equipment
Brand Name:	AI
Model Number:	G Series
Certification:	ISO
Place of Origin:	China
MOQ:	1 set Visible Spectrophotometer
Price:	Negotiable
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20 sets per month
Delivery Time:	20 days
Packaging Details:	Visible Spectrophotometer packed in Plywood case
Test method:	Visible spectrophotometry
Wavelength Range:	200 ~ 1000nm
Wavelength Accuracy:	±2nm
Spectrum Bandwidth:	5nm/2nm/4nm
Display:	LCD
Power supply:	AC220V±10%/50HZ
Warranty:	1 Year
Color:	White

Contact Now

Add to Cart

Company Info.

Advanced Instruments Co.,Limited

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

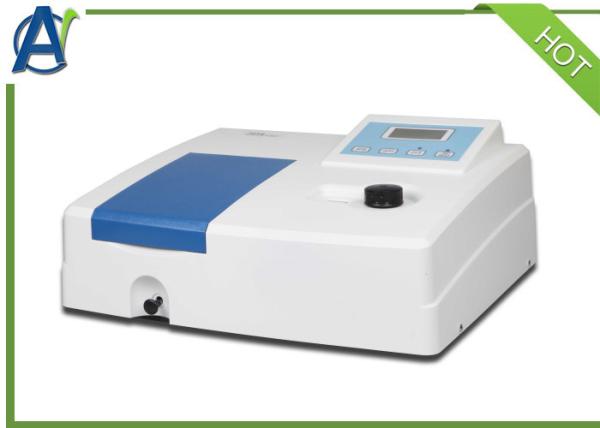

G Series Visible Spectrophotometer

Advantages

APPLICATIONS

G series economic visible spectrophotometer is being widely used in colleges and enterprises for general quantitative

analysis and experiments based in absorbance measurements.

COMMON FEATURES

High quality silicon photometric diode detector and 1200 lines/mm diffraction grating ensure the high quality accuracy and precision.
Backlit LCD display for an easy readout.
Automatic 0A and 100%T. Easy switching of transmittance, absorbance and concentration modes, just by pressing one key.
Direct concentration read-out and concentration factor setting function.
Large sample compartment, which can accommodate 5mm to 100mm path length cuvettes with optional holders.
The visible spectrophotometer is easy to change the halogen lamp or deuterium lamp by the user himself

STANDARD ACCESSORIES

Technical Specifications

Models	721G	721G-100	722G		752G
WL range	340-1000 nm		325-1000 nm		200-1000 nm
WL accuracy	±2nm
WL repeatability	±1nm
Spectrum bandwidth	5nm		5nm	2nm	4nm
Transmittance accuracy	±0.5% (t) (NBS930D)
Transmittance repeatability	£0.2% (t)
Transmittance measuring range	0-100T
Absorbance measuring range	0-2A
Stray light	£0.5% (t)(at 360nm, NaNO₂)				£0.3% (t)(at 220nm, NaI)
Drift	£0.5% (t)/3min
Signal noise	0.2T%
RS232	including
Cell holder	50mm	100mm	50mm		50mm
Power supply	220V 50Hz (220V/110V optional)
G.W.	13.5kg				15kg
Package Dimensions	560 x 480 x 290mm 0.078M3

OPTIONAL ACCESSORIES

Thermal printer

10mm cuvette holder

50mm cuvette holder

100mm cuvette holder

UV WIN7 software

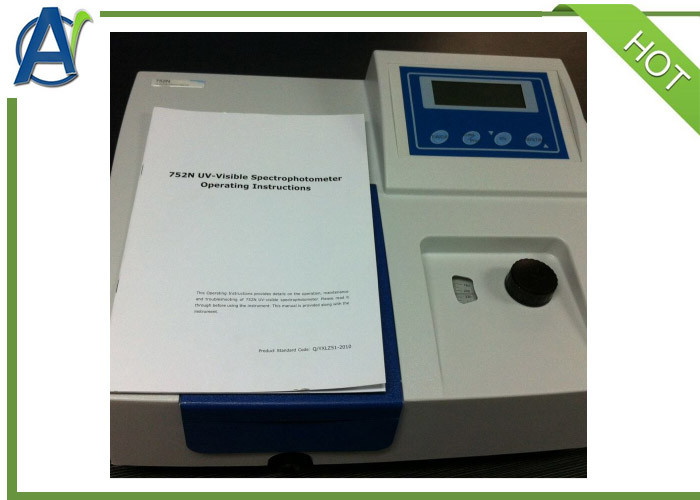

Package of G Series Visible Spectrophotometer Visible Spectrophotometry Instrument
