Melting Furnace Medium Frequency Power Source Low Water Pressure Protection

Medium Frequency Power Source Voltage Heating Induction Equipment

Production Description of Medium Frequency Power Source Voltage Heating Induction Equipment

1) Turn on and turn off easily,and power failure.

2) Adopt constant power to control the circuit, maintain constant power while malting, and keep faster melting rate.

3) Set up over voltage, over current and water deficient protector, and run safely.

4) The motherboard adopts CAD technology, integrated circuit board, low-fault-rate, easy-manipulating,effortless maintenance.

5) Zero voltage starts up softly, high initial over, no impact for the electric network.

6) Apply to melting ferrous metal and non-ferrous metal like copper, aluminum, brass, steel,iron,stainless steel etc...

Technical Parameter of Medium Frequency Power Source Voltage Heating Induction Equipment:

APPLICATIONS of our Medium Frequency Power Source Voltage Heating Induction Equipment:

Preheating of forging, Heat treatment, Brazing, Melting, Shrink-fit and preheating of pipe bending,Elbow Pushing,Pipe Expanding

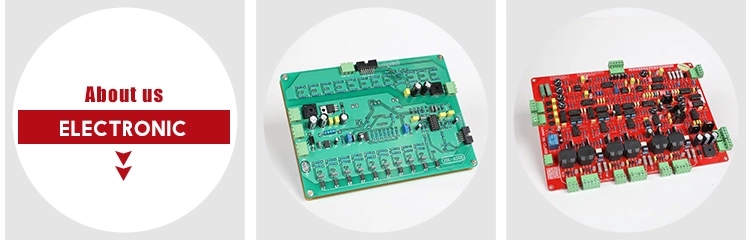

Electric Board

The main control circuit board is the core component of the machine.high quality. We have many stocks.

Features of the our Medium Frequency Power Source Voltage Heating Induction Equipment :

• Easy operation:

A full time operator specially for power supply is not needed .There is only one switch for turning on or off and one power adjustment knob. After started, the only thing that needs to be done is rotating the power adjustment knob to the largest location, others are controlled by the device itself.

• Safety protection functions of induction melting furnace:

1. The main circuit and short circuit protection

2. SCR overvoltage protection

3. Main circuit phase fault protection

4. The main circuit phase loss protection

5. Low water pressure protection

6. SCR overcurrent protection

• Highly reliable electrical control board

In the operation, the 3-phase current is balanced. Due to the advanced design, the 3-phase power supply's sequence could be connected randomly. Moreover there is no limit to connect to capacitor cabinet and furnace. All of these jobs can be judged to be adapted automatically by the device itself. It makes the installation and maintenance very easily.

More Products except of our Medium Frequency Power Source Voltage Heating Induction Equipment :

Advantages of Our Heiyan Medium Frequency Power Source Voltage Heating Induction Equipment

1. Energy saving:

The power factor reaches 0.99 under the condition of full power output. The integrated circuit board is adopted and the current and voltage are adjusted internally. The core components are high performance, high density and large-scale ASIC integrated circuit produced in the United States, which are digitized. The rectifier trigger part does not need any adjustment, and has the advantages of high fraud reliability, high pulse symmetry, strong anti-interference ability and fast response speed.

2. Big reactor design:

Strong filtering ability, greatly reduce harmonic pollution to the grid, suppress the current mutation, protect the transformer.

3. Large section area of current carrying discharge:

Select 8×60 copper row, large cross-sectional area, strong current carrying capacity, reduce heat.

4. Cabinet uses RITTAL brand:

Durable and beautiful

5. Appliances: SCHNEIDER brand

6. Button: IDEC brand

7. Insulating plate:Durable and high insulation grade, beautiful

8. Water segregator: Stainless steel

9. Cooling water pipe: Specially customized, high temperature and high pressure

10. Inverter increase resistance and capacity absorption: it can effectively suppress the instantaneous oscillation and high-frequency current of operating overvoltage, so that the waveform of overvoltage becomes slow, the steepness and amplitude are reduced, plus the damping effect of resistance, so that the high frequency oscillation rapidly attenuates.

NOTE:

Please do not touch any exposeed electric components and induction coils when it is starting work .Please close system if repair or moving . Refuse electrocute!
