TY1x40D Hydraulic Tensioner Deutz Air Cooled Engine Rated Tension 40kN

Categories Tension Stringing Equipment
Brand Name: Boyu
Model Number: TY1x40D-21
Certification: ISO9001
Place of Origin: China
MOQ: 1set
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 100sets/month.
Delivery Time: 15~25 days
Packaging Details: Container
Max Discontinuous Tension: 45 kN
Rated Tension: 40 kN
Corresponding Pay-off Speed: 2.5 km/h
Max Speed: 5 km/h
Bull-wheel Diameter: 1300/1500 mm
Groove Number: 5
Total Weight: 2800kg
Size(L×W×H): 4200×2000×2500
Engine: Deutz air cooled
Type: Stringing Equipment Hydraulic Tensioner
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

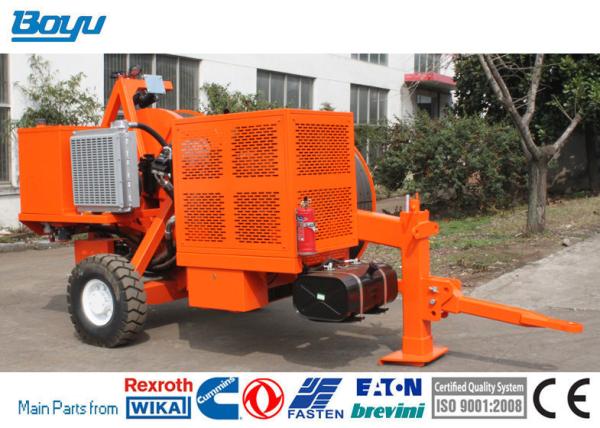

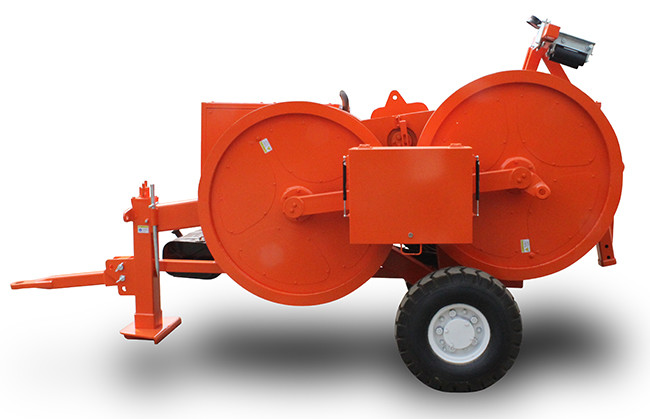

TY1x40D Hydraulic Tensioner Deutz Air Cooled Engine Rated Tension 40kN

Tension Stringing Equipment TY1x40D Hydraulic Tensioner Deutz Air Cooled Engine Rated Tension 40kN


Model: TY1x40D


Performace Parameter
Performance ContentSpecification
Max Discontinuous Tension45 kN
Rated Tension40 kN
Corresponding Pay-off Speed2.5 km/h
Max Speed5 km/h
Corresponding Tension20kN
Max Reverse Pulling Force40 kN
Max Reverse pulling Speed3km/h
Structure Parameter
Bull-wheel Diameter1500 mm
Groove Number5
Max Conductor Diameter40mm
Hydraulic power outputCan connect hydraulic lead tail car
Total Weight2800Kg
Size(L×W×H)4200×2000×2500
Structural StyleSingle bridge trailer
Main configuration instructions
EngineDeutz air cooled
Hydraulic PumpFrench HYDROLEDUC
Hydraulic MotorGerman RexrothFrench HYDROLEDUC
Speed ReducerGerman RexrothItaly BONFIGLIOLI
Main hydraulic valve partsGerman Rexroth/American SUN/Italy ATOS


History


Yixing Boyu Power Machinery Co., Ltd. was established in 1994


In 2001, the company passed ISO9001 certification and obtained AAA certificate


In 2006, it won Wuxi contract abiding and trustworthy enterprise and Wuxi famous brand products


In 2007, it won the title of high-tech enterprise and famous brand product in Jiangsu Province


In 2009, Wuxi made great achievements


In 2010, Boyu established Boset brand in cooperation with Kaiser, a famous German company


In 2010, it won the science and technology innovation program of the Ministry of science and technology of the people's Republic of China.


By November 8, 2010, Boyu enterprise had sold nearly 4000 sets of Lamar and tensioning equipment (excluding mobile ground grinding). Our products sell well in Sudan, Kenya, Angola, Pakistan, Myanmar, India, Mexico and Germany.


Founded in 1994, Yixing Boyu Electric Machinery Co., Ltd. is a high-tech enterprise in China, specializing in the R & D, production and sales of hydraulic puller, tensioner, conductor and other transmission line threading equipment and tools. Pulley, anti torsion galvanized steel wire rope and provide customers with accessories and technical services. After years of efforts, Boyu has developed into one of the largest manufacturers of threading equipment and tools in China, and currently provides more than 200 kinds of products.


At present, our annual output value exceeds 30 million US dollars. We provide more than 1000 sets of equipment for power system customers.


Our products are very popular in China. Our main customers include state grid, China power, EETC, etc. We have also been in the international market for more than 10 years, operating in more than 50 countries.
