FTTH Splitter Fiber Optical Distribution Box 4 Cores PC ABS Material Wall Mounted

FTTH Splitter Fiber Optical Distribution Box 4 Cores PC ABS Material Wall-mounted

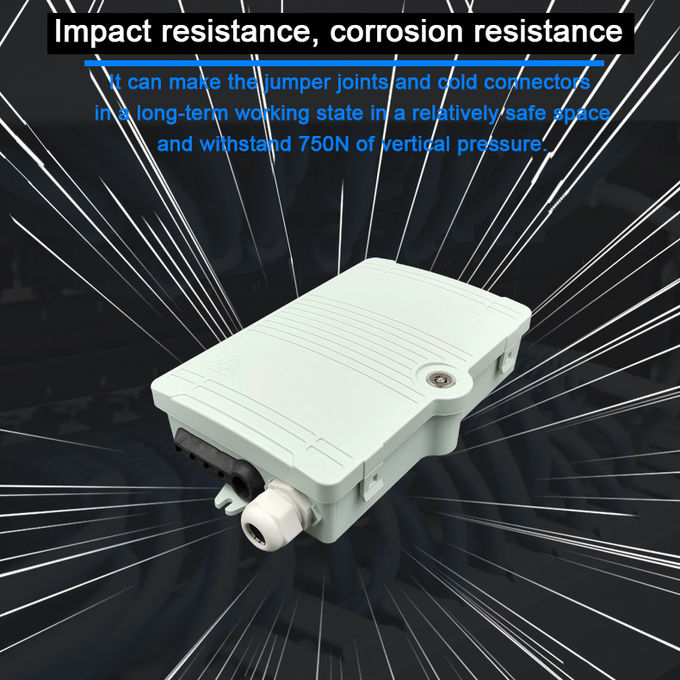

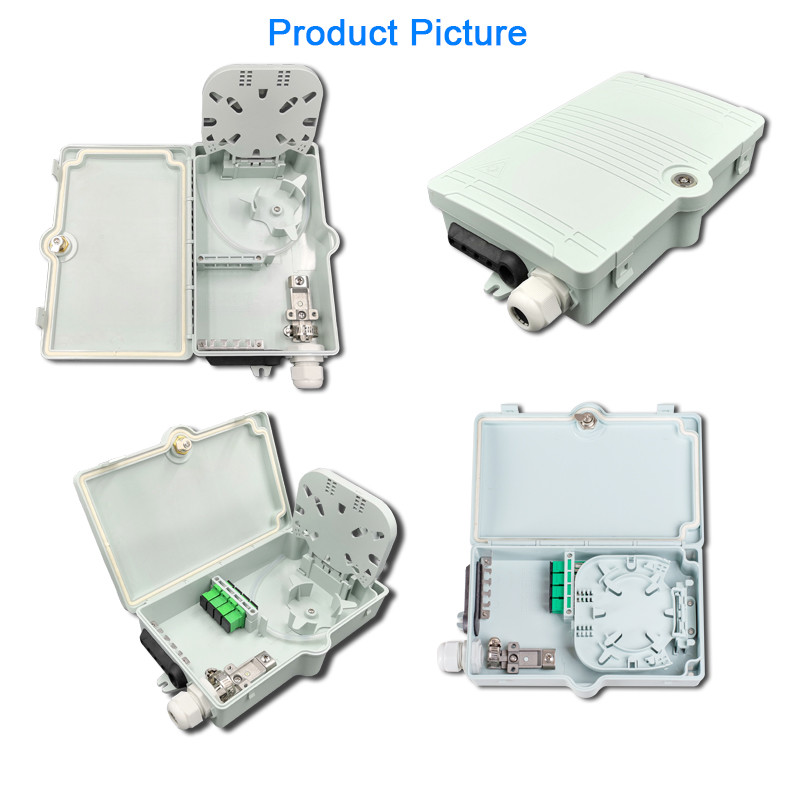

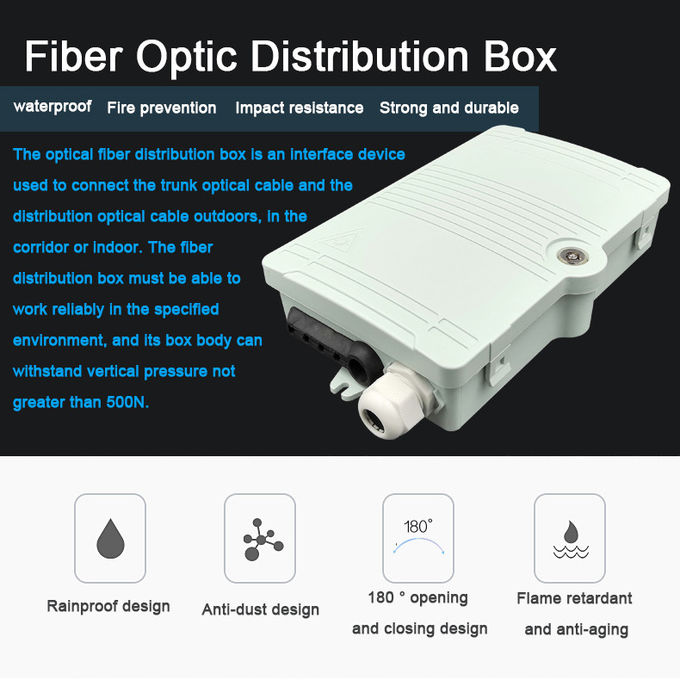

KXT-A-4B Fiber optical Distribution box is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH. Widely used in the end termination of residential buildings and villas, to fix and splice with pigtails; Can be installed on the wall; May adapt variety of optical connection styles; Optical fiber can be managed effectively. Available for 1*2/1*4 PLC Splitter.

Features:

1.1 FTTH network and CATV system application.

1.2 Available for 1*2/1*4 PLC Splitter. Design to protect PLC splitter.

1.3 Suit for both Outdoor & Indoor. IP65 Grade.

1.4 Waterproof, Anti-UV, Ultra violet resistant and rainfall resistant.

1.4 Light weight, small cubage, small installation size,realiable sealing.

1.5 Could be connected FTTH Drop cables inside. Design the splicing place for Mechanical Splice

1.6 The base and cover of the box adopts “self-clip” &”screw-clip” two times lock method, which is better to use in outdoor for high sealing and waterproof.

Adapter port :

Could be used for LC Duplex, SC ,FC Adapter;

Cable port:

Could be connected 1 inlet ports, 4 outlet ports.

Cable diameter(mm): φ7~φ10

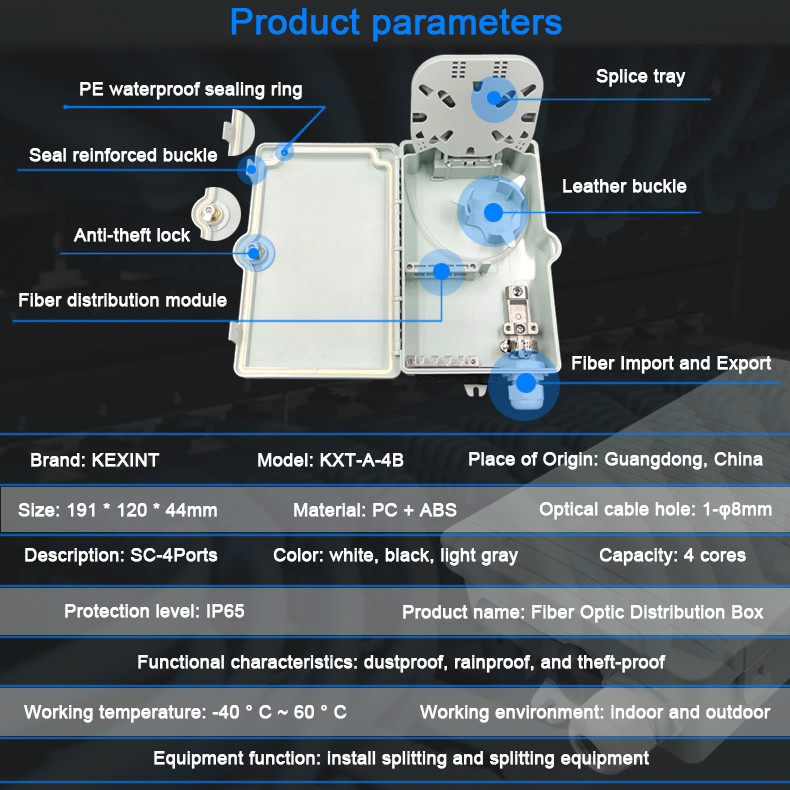

Main Technical Indexes:

2.1 Environmental Temperature:-40°C~60°C;

2.2 Max capacity: 4 fibers;

2.3 Application for outdoor, IP65 grade

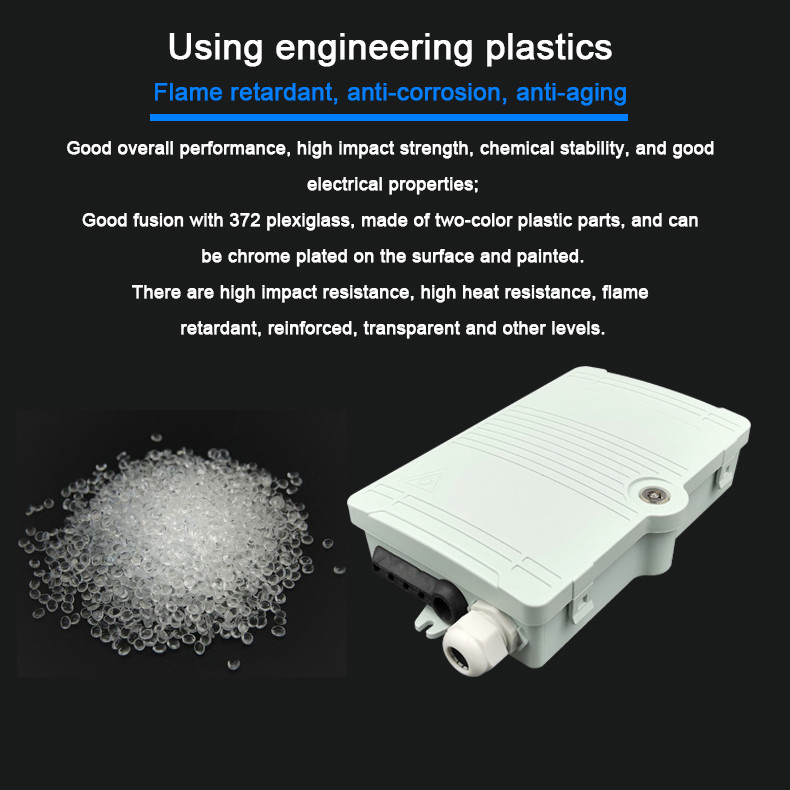

2.4 Material: High impact plastic.

We promise:

1. Are you the real factory

Yes,we are the real factory with 11 years’ history.

2. What is your fiber brand ?

Fiber brands including : NECERO,Corning,Fiberhome

3. What is your main products

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;Fiber Optic Distribution Box

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.

4. Product quality guarantee period?

25 years’ Guarantee for fiber optic cable

5. Do you have certificate for raw material ?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.

6. What is your delivery time?

Within 24 hours for 200 pcs normal kinds of fiber optic box;

2 ~5 days for fiber optic patch cords with 500 box.

7. MOQ: what is your minimum quantity

MOQ for fiber optic box: 100 pcs

There is no MOQ required for fiber optic box,as there’s stock for normal kinds.

8. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.

9. Payment:

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable.

10. Shipping & Delivery:

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services,any of which is optional.

      KEXINT which was founded in the year 2007 is a high-tech enterprise specialized in telecom communication network equipment research and development (R&D), manufacturing, marketing, and providing application solutions and technical services .

     Its main products include fiber optic cable, fiber distribution box, fiber optical patchcord , MPO/MTP , and optical splitter (PLC/FBT/WDM), fast connecter , fiber optic adapters, fiber optic attenuators ,We have more than 11 years of experience in passive fiber optic products . In 2016 , we also established OLT/ONU R&D and production. Products are widely used in telecommunications, broadcasting and other fields. Television, power engineering, and other industries. The main market distribution: Russia and other CIS, South Africa, Europe, South America, etc. The company promises: quality and integrity first

 Rich experiences in passive production of fiber optical products ensure the reliable stabilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years from customers around the earth for its short lead-time, fast delivery, and timely after-services.
