W Type Fully Automatic Pallet Strapping Machine , 40 pallets/h Shrink Film Wrapping Machine

W Type fully automatic pallet strapping machine pallet shrink film wrapping machine Tray stretch film winding machine

SUMMARY OF MACHINE

SP-YK1650H Automatic Pallet Strapping Machine is widely used for Carton boxes Strapping, Wrapping and etc…

MACHINE PHOTOS

THE MAIN FEATURES:

Controls:

1. control system under PLC Control
2. Photo-eye pallet height sensor
3. 0-9 separate top, bottom & up-down wrap count selectors
4. Photoeye sensing delay
5. Reinforce wrap allow more wrap on same location
6. Film Tension Control adjustment on the panel
7. 0-12RPM variable turntable speed by frequency changer
8. Separate variable carriage up/down speed
9. Cycle pause capability
10. Separate start, reset and emergency stop buttons
11. Manual carriage up/down switch
12. Turntable jog button
13. Conveyor Jog (for each conveyor)
14. Dust-tight Precious Metal Slip-ring for long reliable service

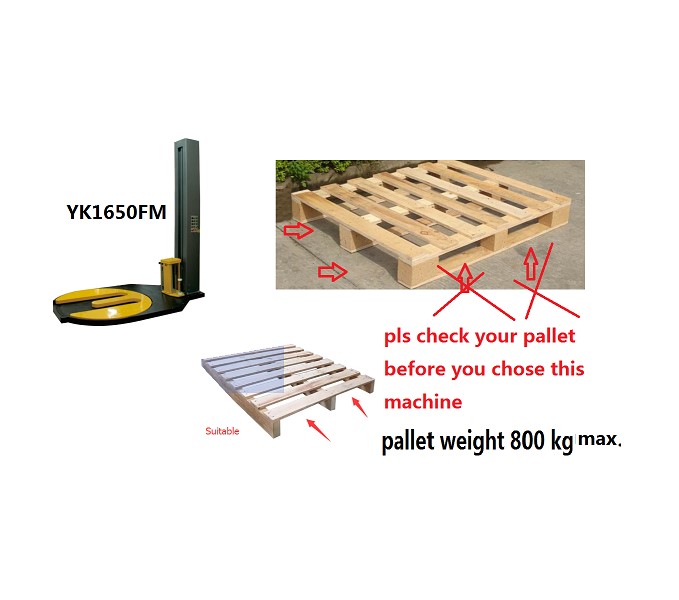

Light duty wheel and chain drive (max. load weight 800kg

Table drive by wheels and chain

Film carriage:

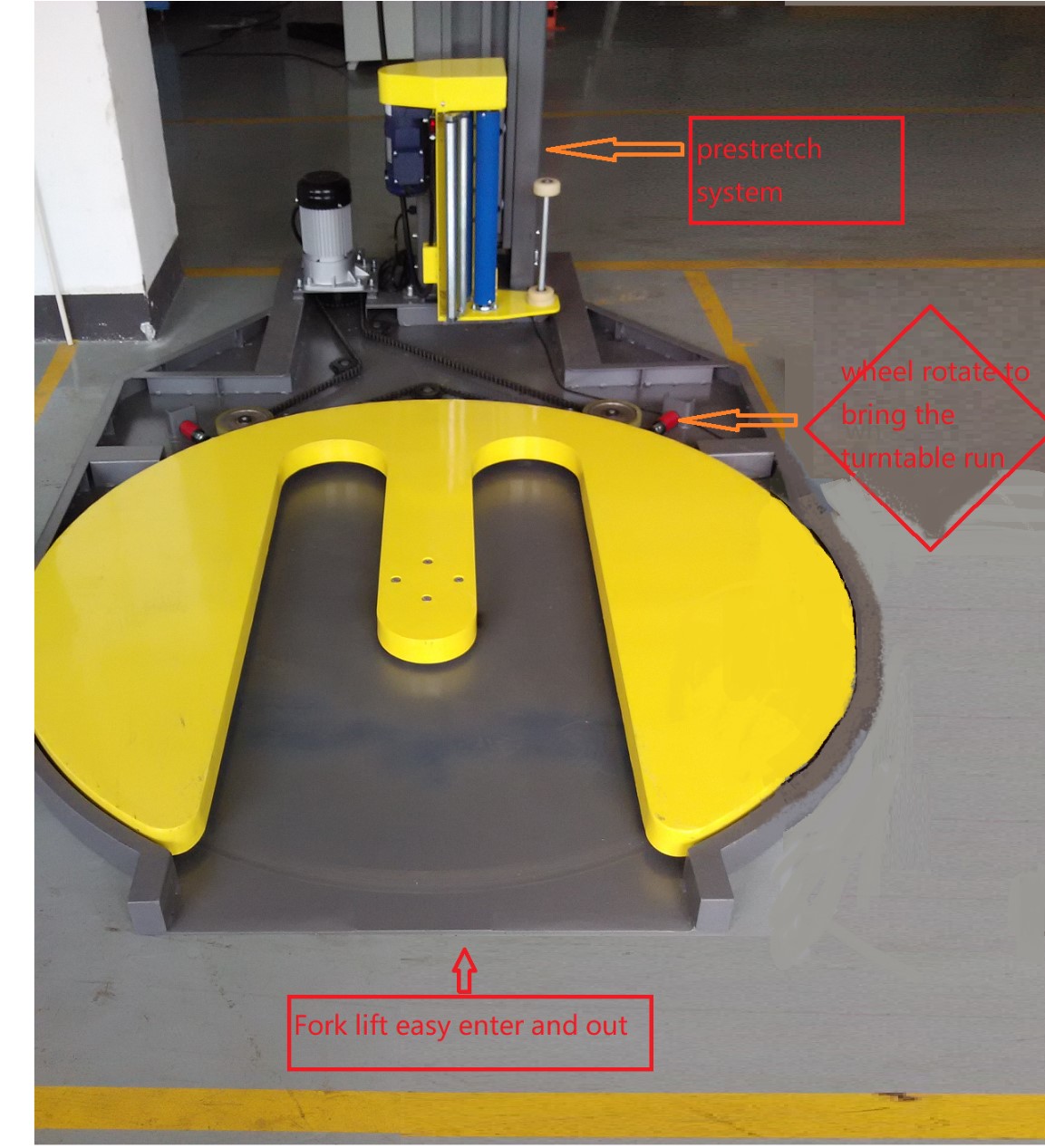

1. Powered pre-stretch system up to 300% to min film consumption (Prestretch ratio can be specially made according your requirements.)
2. Carriage door opens for effortless roll change and thread film
3. Film delivery variable speed by separate AC Drive Motor
4. Film dancer-bar with variable speed output

Top Press Plate

1. Plate diameter 500-600mm
2. Control by key the manu
3. Motor (0.35kw) or air cylinder Pressure device according to your request choose-able
4. *working capacity: 20-40 pallets / hour

MACHINE PHOTOS

THE MAIN PARAMETERS:
