| Categories | Vibration Shaker System |
|---|---|
| Brand Name: | ASLI |
| Model Number: | ES-10 |
| Certification: | CE, ISO, SGS |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100 sets per quarter |
| Delivery Time: | 40~50 days |
| Packaging Details: | strongly wooden case |
| vibration force: | 10KN |
| Controller: | VENZO |
| frequency: | 5-3000hz |
| acceleration: | 1000m/s2 |
| vibration direction: | Vertical & Horizontal |
| application: | Packaging |
| Company Info. |
| ASLi (China) Test Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

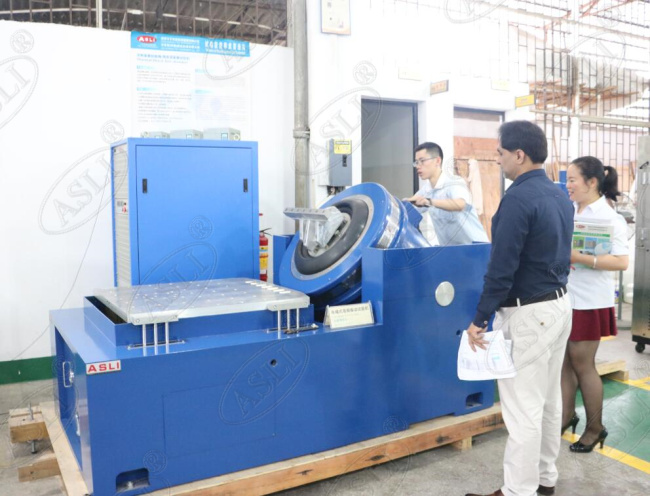

SGS 1000kg.F Vibration Shaker System High Frequency Type
Sine and random vibration table/3 axis vibration direction test machine simulates a series of controlled vibration(ocean wave, wind blow, earthquake, rain...), produced by nutural or human-made.Testing products withstands transportation and vibration environment in lifelong period, consequently control product quality and design best products. It is widely applied to national defense, aviation, aerospace, communications, electronics, automotive, home appliance, etc.
Features
1. Light armature, high stiffness, 4000 HZ frequency.
2. Computer connecting line control, immediately store materials.
3. Display controlling chart.
4. Low resistance and high performance design, high efficiency, low cost.
5. High reliability, low fault.
| Electrodynamics Type Vibration Test Machine | |||
| Model | ES-3 | ES-6 | ES-10 |
| Rate sine force(N) | 2940 | 5880 | 9800 |
| Radom force(N) | 2940 | 5880 | 9800 |
| Shock force(bmx) | 5880 | 11760 | 19600 |
| Frequency(Hz) | 5-3500 | 5-3000 | 5-3000 |
| Max acceleration(m/s2)) | 980 | 980 | 1000 |
| Tated sppeed(m/s) | 1.6 | 1.5 | 2.0 |
| Max.displacement(MMp-p) | 25 | 25 | 25 |
| Max load(kg) | 120 | 200 | 120 |
| Comsumption power(KVA) | 7.5 | 17 | 22 |
Horizontal Stand features:
Within small loading bench to realize higher acceleration and
working frequency, to improve the loading capacity and performance
of whole machine bench.
Horizontal bench and vibration bench are integral type, with
perfect structure, convenience to install and adjust.
Static pressure track, V-shape, with capacity of slope-resistant
and bias-loading resistant.
Built-in oil pump, good structure and easy operating.
technical parameters of horizontal expander:
| Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
| LT0303 | 300×300×22 300×300×26 300×300×30 | 5-1000 5-1500 5-2000 | 6.6 7.8 9.0 |
| LT0404 | 400×400×22 400×400×26 400×400×30 | 5-l000 5-1400 5-2000 | 11.2 13.2 16.0 |
| LT0505 | 500×500×25 500×500×30 500×500×35 | 5-1000 5-1500 5-2000 | 19.3 23.1 27.0 |
| LT0606 | 600×600×25 600×600×30 600×600×40 | 5-1000 5-1200 5-2000 | 27.5 33.0 45 |
| LT0707 | 700×700×25 700×700×30 700×700×35 | 5-800 5-1000 5-1500 | 36.8 44.2 52 |
| LT0808 | 800×800×30 800×800×40 800× 800×45 | 5-1000 5-1500 5-2000 | 57.7 76.9 86.5 |
| LT 1010 | 1000× 1000×30 1000× 1000×40 1000× 1000×50 | 5-1000 5-1300 5-1500 | 89.1 118.8 147 |
| LT 1212 | 1200× 1200×30 1200× 1200×40 1200× 1200×50 | 5-800 5-1100 5-1400 | 126 168 210 |
If you need more information about Electromagnetic Type Vibration test systems with 100g Acceleration, please don't hesitate to send your inquiries.
|
