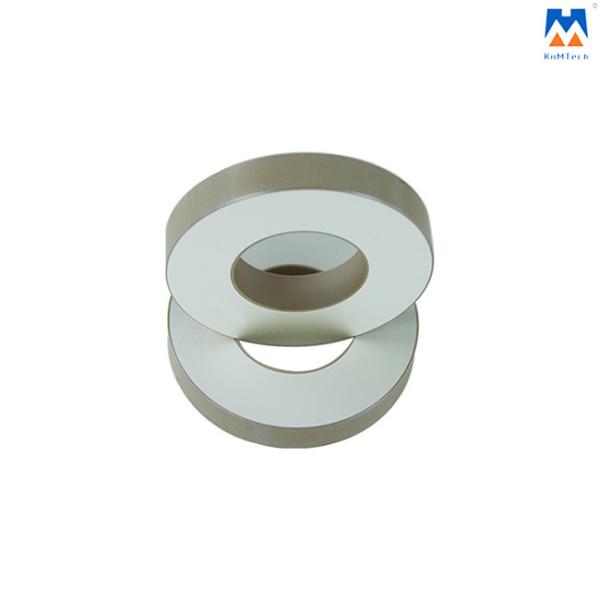

Piezoelectric Ceramic Disc 10mm Piezo Vibration OD60mm Ultrasonic Transducer

Piezoelectric Disc Pzt Material 60*30*10 Ultrasound Ceramic Piezo Elements

The working principle of an ultrasonic transducer is to effectively convert electrical energy into mechanical motion through a set of specially designed piezoelectric ceramics. The ceramics' size, shape, and type will influence the frequency at which conversion happens and the amplitude of the generated mechanical vibrations.

As the piezoelectric ceramic transducer material, the performance of the PZT series is more stable and the piezoelectric effect is significant in a larger temperature range. PZT series has good piezoelectric property, high mechanical strength, high coercive field, low dielectric loss in strong fields, which is widely used for ultrasonic welding and cleaning.

Our piezoelectric ceramic discs use PZT8 materials which are proved to be with high mechanical strength, high sensitivity, high vibration efficiency, high coercive field, and low dielectric loss.

Technical parameters:

Features:

* Good stability

* High sensitivity

* Low heat

* High vibration efficiency

Application:

Piezoelectric ceramic discs can be used for ultrasonic welding transducers, ultrasonic cutting transducers. ultrasonic cleaning transducers and so on.

If you need other sizes of piezoelectric ceramic discs, feel free to contact us.

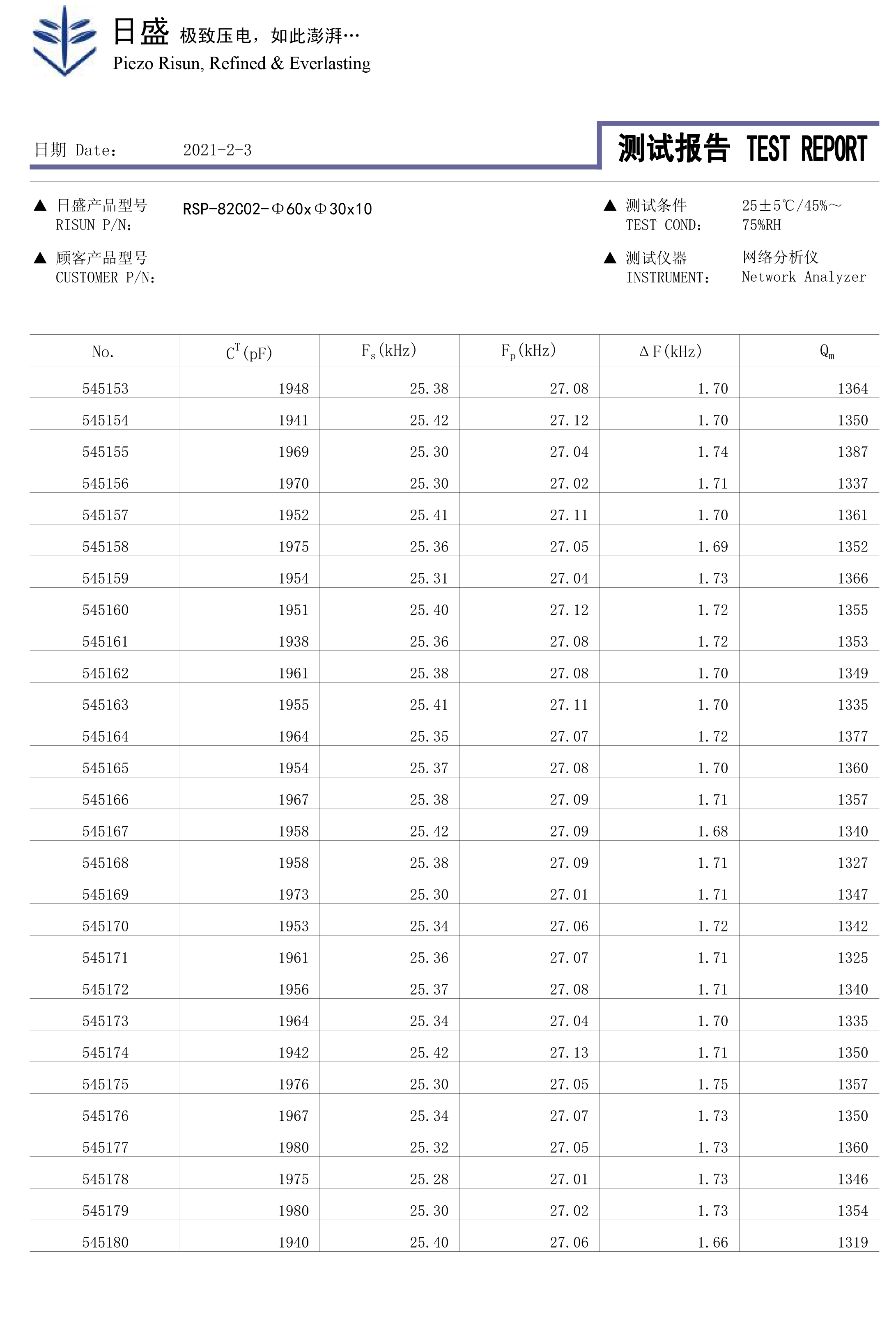

Before shipment, we always test each ceramic disc one by one to make sure it can pass the quality control, and every ceramic disc has its testing report as shown:

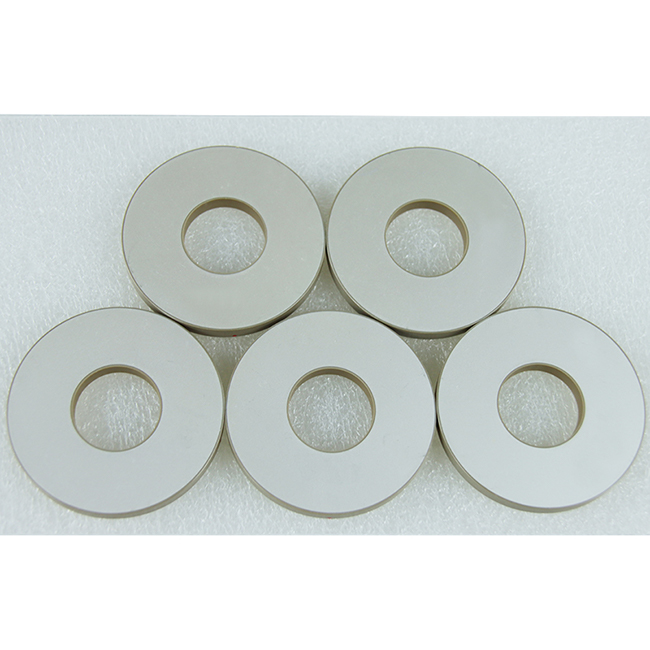

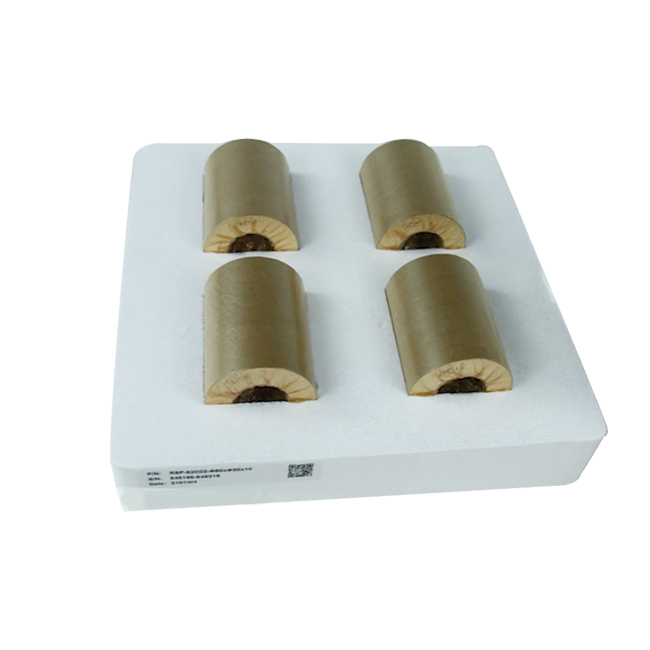

Detailed Photos:

Incorporated in 2015, K& M Technologies Ltd is one-stop solution provider in plastic welding business, especially in ultrasonic plastic welding, ultrasonic non-woven fabric sealing and cutting, hot plate welding, water filter welding lines...

From June 2021, We started the cooperation with a famous brand Dongho Ultrasonics, and co-established a new company Sincere Sonics to handle the overseas market of Dongho brands ultrasonic welding machines.

We have the professional team for the design of the equipment based on over 25 years' experience of the main staff in this industry.

We have sold to more than 100 countries in the world in the past years, including coutries from Asia, Europe, South America, North America, Oceania and Africa.

Our product series include QD series, ME series, SS series and Dongho Series for ultrasonic welding machines; AY series for filter welding machines and hot plate welding machines.

Now we have agents in Turkey, India, Ukrane, Maylasia, Vietnam and we are looking for more agents or distributors around the world who can take good care of the aftersales services in the country or territory.
