| Brand Name: | NL |
| Model Number: | EFSD |
| Certification: | FDA |
| Place of Origin: | Shanghai, China |
| MOQ: | 40 Meter/Meters (Min. Order) |
| Price: | $29.00 - $129.00 / Meter |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10000 Meter/Meters per Week |
| Delivery Time: | Quantity(Meters) 1 - 100 Est. Time(days) 10 |
| Packaging Details: | Standard packing. If you have any special requirement, please tell us in time. |
| Size: | 1"~4" |
| Length: | 40m/roll |
| Thickness: | 6~8mm |
| Material: | EPDM |
| Temp. Range: | -40℃~+ 140℃ |
| Processing Service: | Moulding, Cutting |
| Color: | Blue |
| Company Info. |
| Shanghai New Lasting Co., Ltd. |
| View Contact Details |
| Product List |

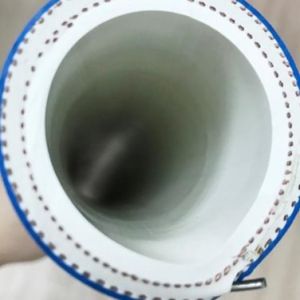

EPDM Food Suction and Delivery Hose
Applications:
Suction and delivery of liquid foodstuffs such as fruit juice,
drinks, wine, potable water and alcohol up to 96%. Also for liquid
foodstuff tankers. Contains no phthalate.
Construction:
Tube: White EPDM, heat resistant, smooth
Reinforcement: Synthetic textile with embedded steel helix.
Cover: Blue EPDM, weather resistant, fabric impression.
Temperature range:
Water: - 40℃~+ 165℃
Standard/Approval:
FDA 21 CFR 177.2600
| Part no. | ID | OD | Bending radius | Work pressure | Bursting pressure | Vacuum | Weight | Length | |
| inch | mm | mm | mm | bar | bar | bar | kg/m | m | |
| EFSD025 | 1" | 25.4 | 37.0 | 50 | 10 | 30 | 0.9 | 0.97 | 40 |
| EFSD032 | 1-1/4" | 31.8 | 44.5 | 65 | 10 | 30 | 0.9 | 1.15 | 40 |
| EFSD038 | 1-1/2" | 38.0 | 52.0 | 75 | 10 | 30 | 0.9 | 1.32 | 40 |
| EFSD051 | 2" | 50.8 | 66.0 | 125 | 10 | 30 | 0.9 | 2.33 | 40 |
| EFSD064 | 2-1/2" | 63.5 | 79.5 | 160 | 10 | 30 | 0.9 | 2.5 | 40 |
| EFSD076 | 3" | 76.2 | 92.0 | 225 | 10 | 30 | 0.9 | 3.60 | 40 |
| EFSD089 | 3-1/2" | 89.0 | 106.0 | 320 | 10 | 30 | 0.9 | 4.10 | 40 |
| EFSD102 | 4" | 101.6 | 118.5 | 400 | 10 | 30 | 0.9 | 4.5 | 40 |
Packaging & Shipping
FAQ
1. Are you manufacture?
We started business from trading, but now we have invested and holded several factory in china.
2. Can you ship to my country?
We can ship to all the countries around the world by air or sea.
3. How much is the shipping charge to my country?
It depends on your country located and the weight of goods.
4. What's the price term?
EXW, FOB, CIF, CFR
5. What's your payment?
T/T, L/C, Western Union
|
