Automatic Servo Drive Touch Screen Sleeve Shrink Can Bottle Labeling Machine

Categories Bottle Labeling Machine
Brand Name: BOTTLING MACHINERY
Model Number: TB-150 / 250
Certification: CE/ISO9001-2008
Place of Origin: Zhangjiagang city Jiangsu provice China
MOQ: 1
Price: 10000-11000USD
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10sets per month
Delivery Time: 20-25 working days
Packaging Details: Sea shipping Wooden case
Name: Single head 150BPM / 250BPM sleeve labeling machine
TB-150 Speed: 150bottles per minute
TB-250 Speed: 250bottles per minute
Lable type: Sleeve label
Material of label: PVC、 PET、 OPS
Diameter of bottle: ∮28mm-∮125mm
Length of label: 30mm-250mm
Voltage of Host machine: AC220V, 50/60HZ, 1.5-2.5KW, single-phase
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Automatic Servo Drive Touch Screen Sleeve Shrink Can Bottle Labeling Machine

Description of Automatic Servo Drive touch screen sleeve shrink can bottle labeling machine

Equipment list of automatic Single head 150BPM / 250BPM sleeve labeling machine:

ItemsDescriptionModelSize(mm)Qty
Single head 150BPM sleeve labeling machine set
1.1Sleeve applicatorTB-1502000*850*20001set

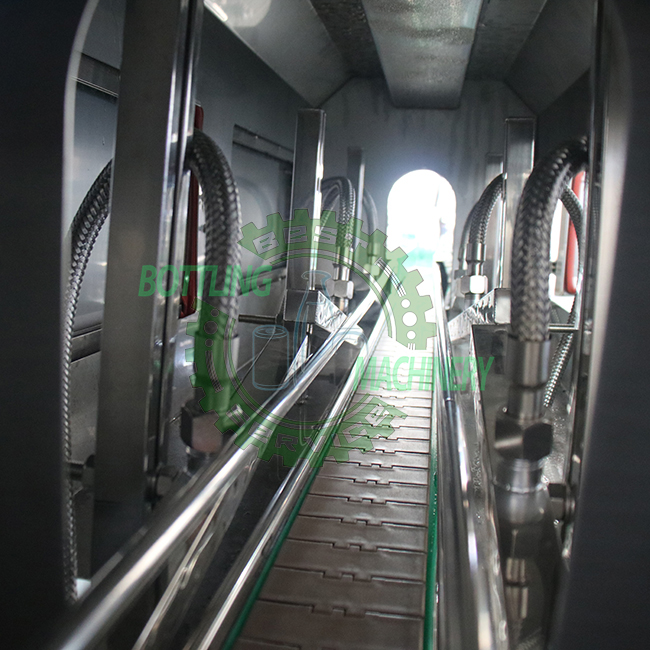

1.2Sleeve shrink tunnelSB-15001500*700*20001set
1.3Steam generator18KW760*570*10301set
1.4Connection conveyor system//4m
1.5Spare parts//1suit
Single head 250BPM sleeve labeling machine set
2.1Sleeve applicatorTB-2502000*850*20001set
2.2Sleeve shrink tunnelSB-20002000*700*20001set
2.3Steam generator24KW760*570*10301set
2.4Connection conveyor system//5m
2.5Spare parts//1suit

Parameters of automatic Single head 150BPM / 250BPM sleeve labeling machine:

Voltage:Host machines;AC220V, 50/60HZ, 1.5-2.5KW, single-phase

TB-150 Speed: 150BPH

TB-250 Speed: 250BPH, speed slightly faster when label is shorter

Diameter of bottle body: ∮28mm-∮125mm

Length of label: 30mm-250mm

Thickness of label: 0.035mm-0.045mm

Material of label:PVC, PET, OPS

Applicator size:L2000MM*W850MM*H2000MM


Configuration table of machine parts:

1. Bottle separating mechanism1set7. Label carrier drive mechanism1set
2. Bottle positioning mechanism1set8. Cutter mechanism1set
3. Single material putting place1set9. Synchronous label brush-off mechanism1set
4. Fiber-optical electric eye controlling1set10. Automatic platform elevating mechanism1set
5. Center guide pin1set

11. Man-machine interface of operation control panel


1set
6. Hairbrush1set

The main configuration table and function of automatic sleeve labeling machine

NameFunction
Material offering groupOffer motor for label carrier
Shelf groupInstall volume label device
Platform elevating groupAdjust the height of host automatically according to the bottle shapes
Brush-off groupBrushing the cut-ted label on the bottle
Cutter groupCutting off the labels which are sent to Center guide pin
Cutter controlling groupControl the cutter operational site
The back drive groupOffer motor for label of center guide pin
The front drive adjusting groupGrasping the center guide pin
Frame of Electric eye groupAdjust the best cutting position of the label
Electric eye of bottle lighting detecting groupAdjust the sleeve labeling position of bottle body
Hairbrush groupBrush the label which cannot sleeve properly to the right place
Bottle positioning groupMake bottle stable, control sleeve labeling position
Center guide pin groupMake volume label distracted for transfer and cut easily
Bottle entering screw boltsSeparate bottle on equal distance in order to sleeve labeling accurately
