| Categories | SMT Pick and Place Machine |
|---|---|
| Brand Name: | Charmhigh |
| Model Number: | CHM-860/861/863 (6/8/10 heads) |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 50 per month |
| Delivery Time: | 6-9 working days |
| Packaging Details: | wooden box |
| Heads: | 6/8/12 heads (with nozzle auto-change position) |
| Feeder: | Support 100pcs electric feeder |
| Component: | 0201,0402,-5050, SOP/QFP/QFN/BGA/LED.. |
| Maximum component height: | 12mm |
| Camera: | IC camera+Flying camera+ MARK camera |
| PCB delivery: | 3 pieces auto delivery with rails, width can be adjusted by software |
| Feeder type: | Fuji NXT electric feeder |
| PCB thickness: | 0.6-3.5mm |
| Preicision: | ±50μm /3σ (CPK≥1.0); QFP: ±40μm /3σ(CPK≥1.0) |
| Comes with: | computer, USB mouse , keyboard |
| Company Info. |
| CHARMHIGH TECHNOLOGY LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
Charmhigh 3 types Vertical SMT pick and place machine PCB assembly line, for BGA, 0201
Full In-line SMT Pick and place Machine, new smart software
PCB assembly line - for batch production
1. Model number: CHM-860/ 861/ 863 (Updated new smart software)
2. Brand: Charmhigh
3. Main configuration: Vertical type + PCB auto delivery +
Panasonic servo motor + nozzle changer + THK Grinding screw
4. Feeder: NXT Electric feeder (purchase separately)
5. Comes with computer & keyboard & mouse with Windows system
6. Component: 0201, 0402-5050, SOP, QFN, TQFP, BGA... etc.
7. Lead time: 7-9 working days
8. Delivery: by sea / pick up from our factory directly / send to
China warehouse
9. Payment method: wire transfer (T/T)
10. Packing: plywood box
CHM-861 introduction video: www.youtube.com/watch?v=kFchN0IbqJE&t=3s
CHM-860:
| Dimension | 1320mm(L) x 1440mm(W) x 1530mm(H) |
| Net weight | 1100Kg |
| Voltage & Power | AC220V(50Hz/60Hz) 3.0KW |
| Vacuum Generation | Japan PISCO vacuum generator |
| Air compressor | 0.5~0.7 M pa |
| Head | 6 heads (go down to pick up at the same time) |
| Components supported | 0201/0402/0603~5050/SOT/SOP/QFP/QFN/BGA,etc.(resistor/capacitor/diode/triode/LED/IC,etc.) |
| Nozzle | Samsung nozzle |
| Nozzle library | 31-hole nozzle library (nozzle auto change) |
| Feeder type | FUJI NXT electric feeder- 60 standard feeder slots (also suitable for IC tray and stick feeder) |
| PCB delivery | 3-section-rail automatic conveying, PCB support |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Control accuracy | 4μm |
| Drive system | X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | X&Y axis adopting TBI ground ball screw and HIWIN linear guide (Y axis with double screws) |
| Camera | Fly camera×6 (component size applicable: 16mm×16mm) IC camera×1 (component size applicable: 36mm×36mm) |
| Fiducial camera | One million pixels x 2 cameras |
| Mounting accuracy | ±50μm@μ±3σ/chip |
| Mounting speed | 22000 CPH (optimal) |
| Max component height | 12mm |
| PCB thickness | 0.6~3.5mm |
| PCB Size | Min: 50mm(L) x50mm(W) ~ Max:400mm(L)x350mm(W) / 800x 350mm (2 options) |
CHM-861
| Dimension | 1600mm(L) x 1430mm(W) x 1530mm(H) |
| Net weight | 1600Kg |
| Voltage & Power | AC380V(50Hz/60Hz) 3 phase, 4.5kw |
| Vacuum Generation | Built-in vacuum pump |
| Air compressor | 0.5~0.7 M pa |
| Head | 8 heads(go down to pick up at the same time) |
| Components supported | 0201/0402/0603~5050/SOT/SOP/QFP/QFN/BGA,etc.(resistor/capacitor/diode/triode/LED/IC,etc.) |
| Nozzle | Samsung nozzle |
| Nozzle library | 37-hole nozzle library (nozzle auto change) |
| Feeder type | FUJI NXT electric feeder-100 standard feeder slots (also suitable for IC tray and stick feeder) |
| PCB delivery | 3-section-rail automatic conveying, PCB support |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Control accuracy | 4μm |
| Drive system | X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | X&Y axis adopting TBI ground ball screw and HIWIN linear guide (Y axis with double screws) |
| Camera | Fly camera×6 (component size applicable: 16mm×16mm) IC camera×1 (component size applicable: 36mm×36mm) |
| Fiducial camera | One million pixels x 2 cameras |
| Mounting accuracy | ±50μm@μ±3σ/chip |
| Mounting speed | 30000 CPH (optimal) |
| Max component height | 12mm |
| PCB thickness | 0.6~3.5mm |
| PCB Size | Min: 50mm(L) x50mm(W) ~ 450mm(L)x350mm(W) / 1200mm(L)x350mm(W) (2 options) |
CHM-863
| Dimensions | 1600mm(L)x1430mm(W)x1530mm(H) |
| Weight | 1620kg |
| Power Supply | AC380V (50Hz, three phase), 4.5kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 12 |
| Mounting Speed | 43000cph (optimal) |
| Mounting Accuracy | ±50μm@μ±3σ/chip |
| Control Accuracy | 4μm |
| Component Height | 12mm |
| Component Type | 0201/0402/0603~5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 450mm(L)×350mm(W) (standard); 1200mm(L)×350mm(W) (optional) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support (electric lift) |
| Nozzle Change | Automatic nozzle change (37-hole nozzle library) |
| Control System | Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System | X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | X&Y axis adopting THK ground ball screw and THK mute linear guide (Y axis with double screws) |
| Feeding System | 100 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System | Fly camerax12 (component size applicable: 16mm×16mm); IC camerax1 (component size applicable: 36mm×36mm); Mark camerax2 (digital camera) |

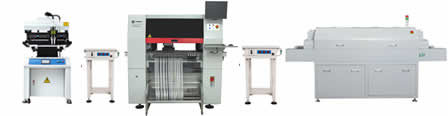

Simple SMT production line:

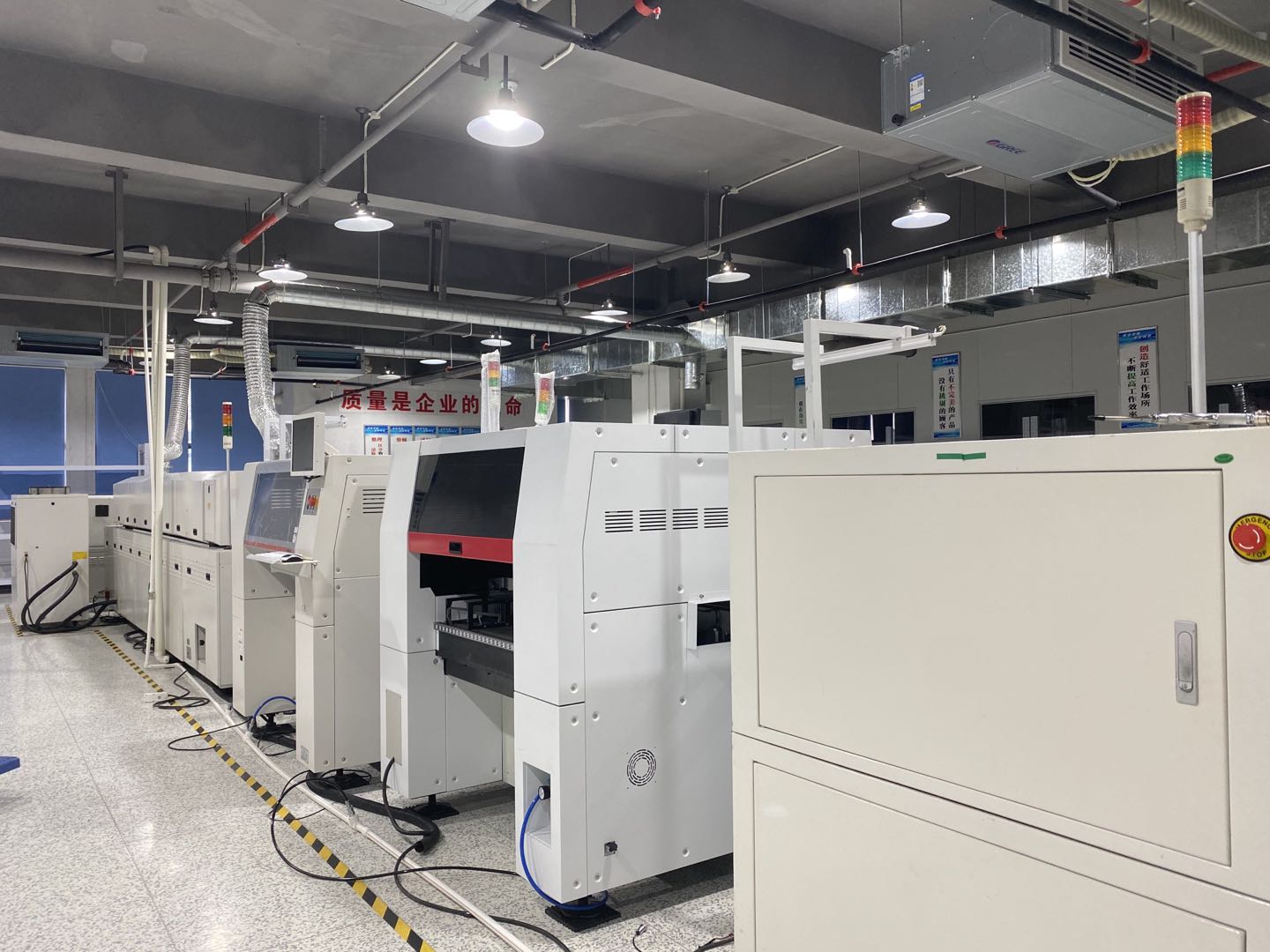

Real photo installation:
Trainning:
SMT production line/ PCB assembly line:
Packing & delivery:

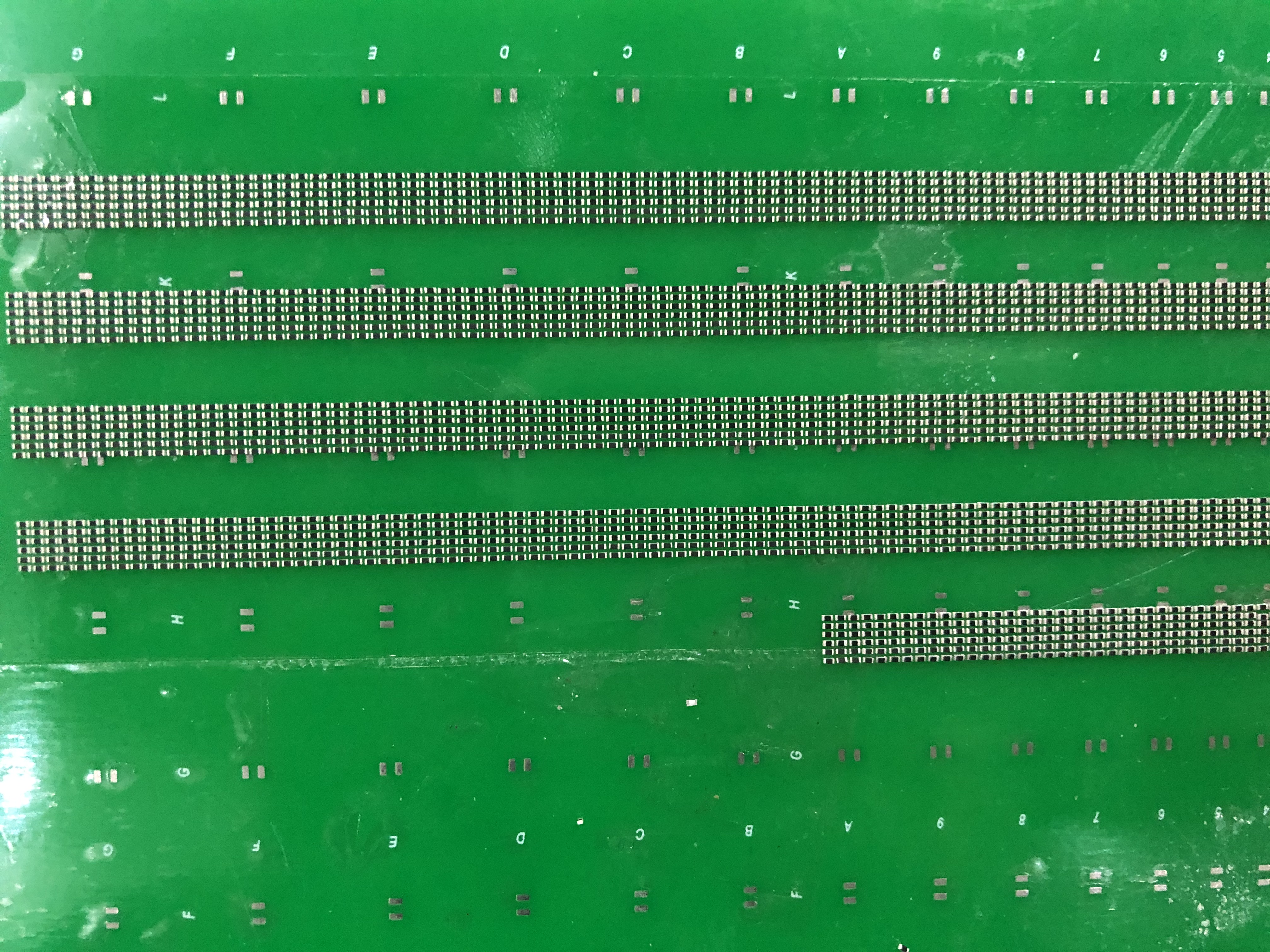

Samples (test 0201):

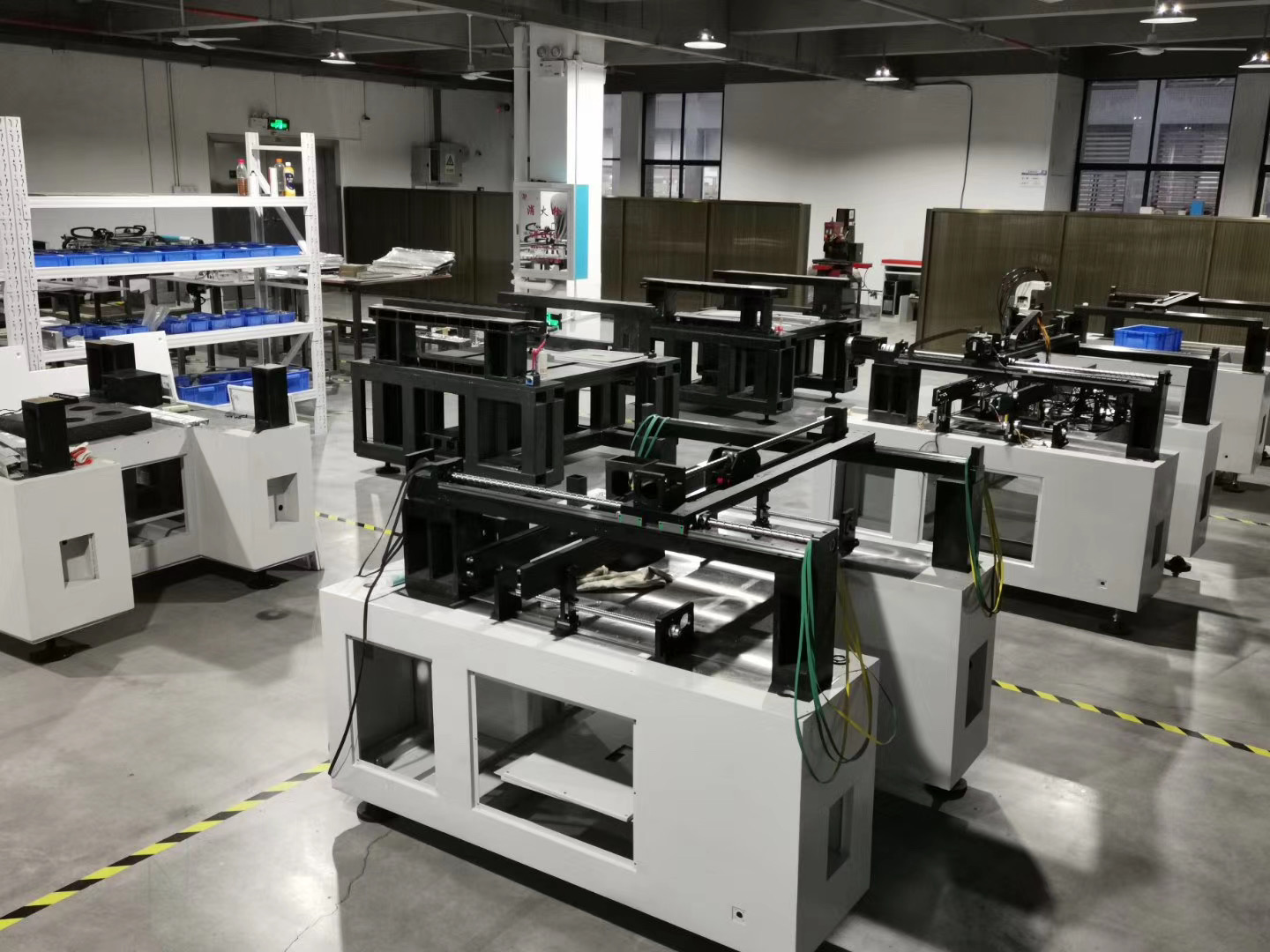

Charmhigh factory direct supply:

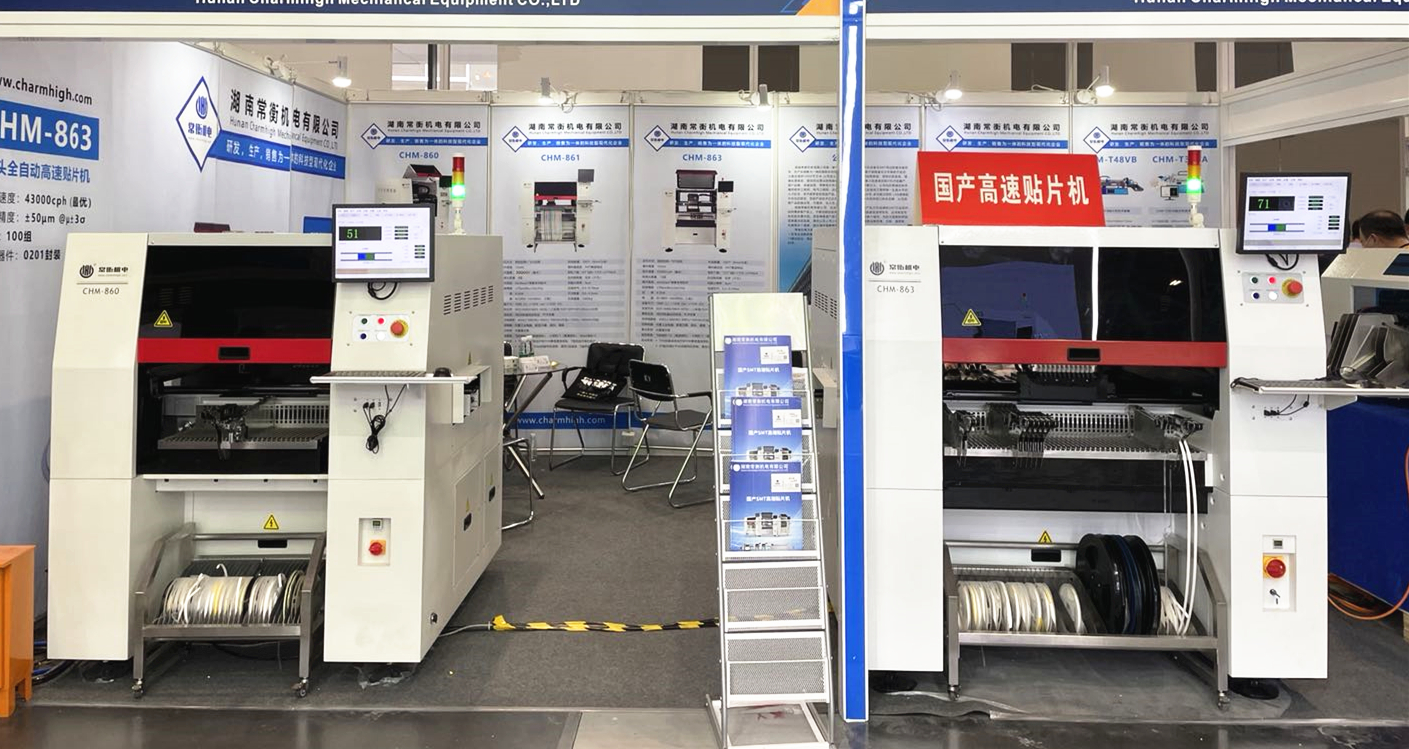

Charmhigh exhibition:
Service & Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifetime service.
We always provide spare parts of machine, factory direct supply with guarantee.
We provide online Q/A and troubleshooting support and technical advice service.
We provide one to one after-sale service. Each machine 100% tested well before ship out.
