RO4350B 4 Layers 0.8mm Multilayer Circuit Board With White Silkscreen

4 Layer High Frequency PCB Built On 2 Core of 10mil RO4350B with Immersion Gold for Wireless Antenna System

(Printed circuit boards are custom-made products, the picture and parameters shown are just for reference)

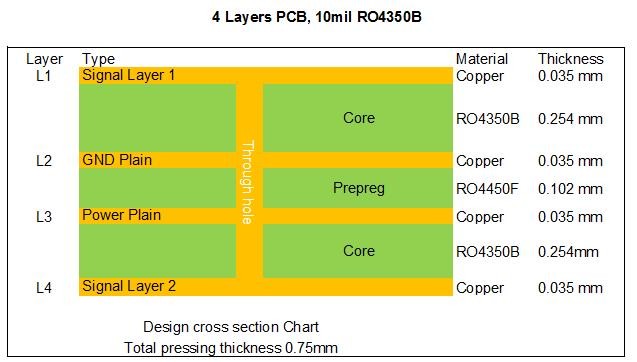

This is a 4-layer RO4350B high frequency PCB built on 2 10mil cores, bonded by 1 sheet of RO4450Fprepreg. As per the requirement of signal transmission, the prepreg can be 1 sheet (4mil), 2 sheets and 3 sheets. This board is for the application of Wireless Antenna System. It's 0.80 mm thick, white legend over green solder mask covered on both sides and immersion gold are on pads. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.

Parameter and data sheet

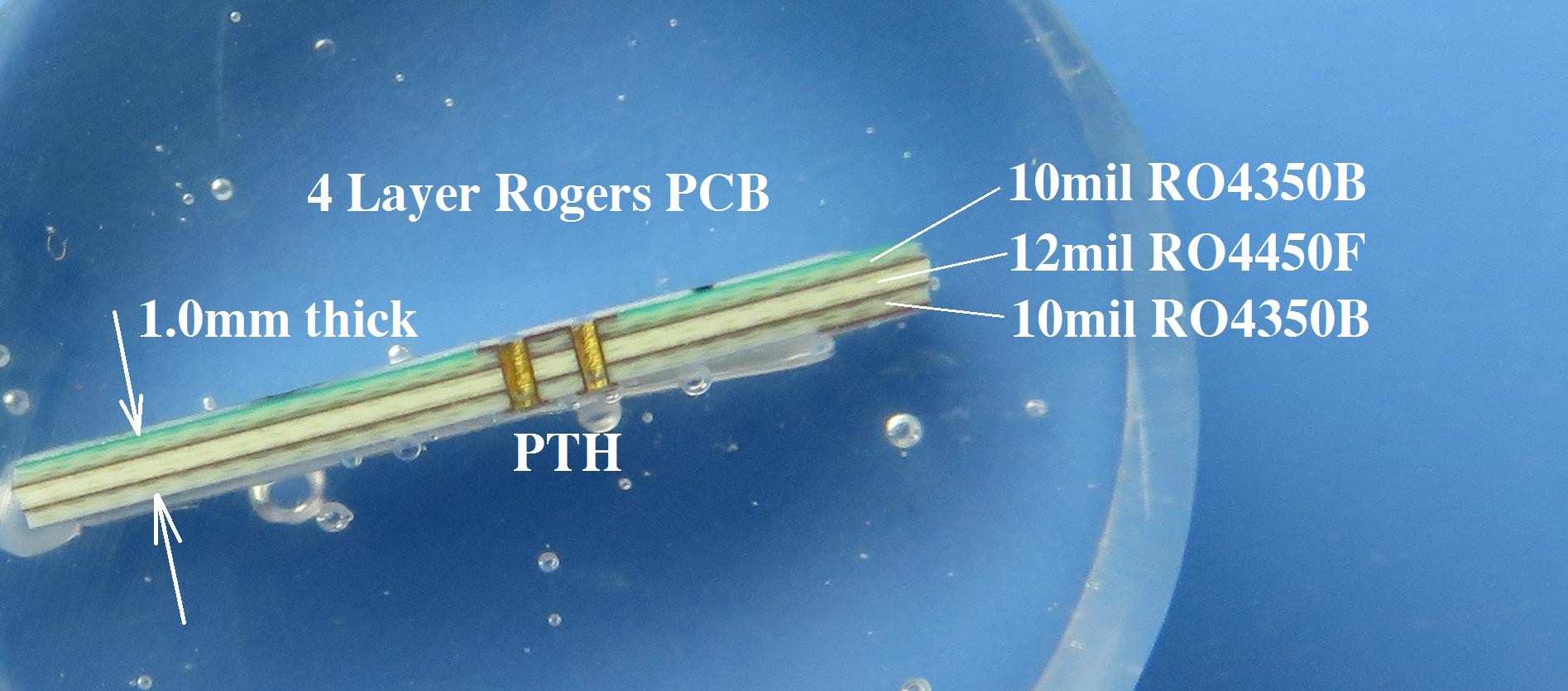

According to actual applications, the prepreg can be chosen as more plies, for example, following micro-section shows a 3-ply of RO4450F.

Features and benefits

1) RO4350B Excellent high frequency performance;

2) Low dielectric tolerance and loss;

3) ISO9000, ISO14001, IAFT16949 certified factory;

4) 30000 square meter month capability;

5) 8000 types of PCB per month;

Applications

Splitter HDMI, 3G Router, WiFi Amplifier, Bluetooth USB Dongle, Interference filter, Multi-coupler
