24Vac 200RRM Vertical Axis 200W Wind Turbine

Categories Vertical Axis Wind Turbine
Brand Name: GreeF
Model Number: Rose-2.0
Certification: CE
Place of Origin: China
MOQ: 1 Set
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400 sets per month
Delivery Time: 25-30 working days
Packaging Details: Foam + Plywooden Case
Price: Negotiable
Rated Power: 200W
Start Wind Speed: 1m/s
Rated Wind Speed: 10m/s
Rated Rotor Speed: 200RRM
Generator Type: Disc coreless Permanent Magnent Generator
Generator Material: Aluminium body+copper wire+Nd-Fe-B
Blades Number/Material: 3pcs / FRP
Optional Voltage: 12 - 24Vac
Tower Height: 6m Free Folding Tower
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

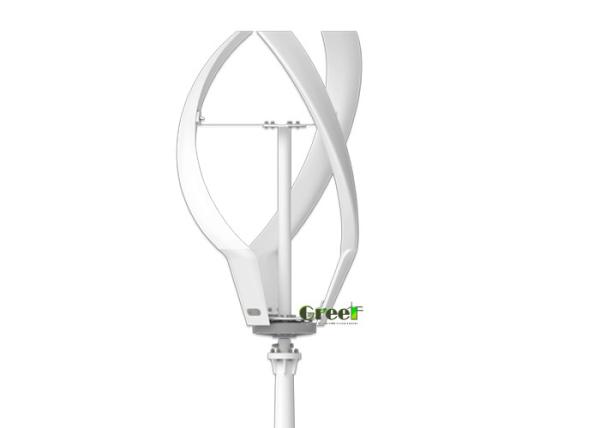

24Vac 200RRM Vertical Axis 200W Wind Turbine

200W Low Start Wind Speed Vertical Axis Wind Turbine

Wind Turbines
wind turbines enable you to use wind energy to charge off-grid battery packs. are the world's best-selling small wind turbines, which are ideal for sailboats, RVs, remote cabs and offshore platforms.
The wind turbine is equipped with a three-phase brushless permanent magnet alternator and integrated a microprocessor-based charge controller to optimize its power generation capacity. The microprocessor continuously adjusts the load of the alternator so that the turbine can run efficiently in most wind conditions.

ModelROSE-2.0
Performance
Rated Power200W
Max Power250W
Start Wind Speed1.0m/s (2.24mph)
Rated Wind Speed10m/s(22.4mph)
Working Wind Speed1-25m/s (2.24-56 mph)
Safety Wind Speed50m/s(112mph)
Physical Parameters
Blades Length1.16M(3.80ft)
Blades Rotor Diameter0.75M(2.46ft)
Blades Material &QuantityFRP /3PCS
Mill Weight33kg(11+22)
Swept Area0.90㎡
Tower Height6m(19.68ft.)
Generator Parameters
Generator TypeAxial Flux Coreless outer rotor disc permanent magnet direct drive generator
Rated Speed200RPM
Start Torque<0.1N.M
Option Voltage12-24V
Protection MethodElectromagnetic Brake +PWM
Protection GradeIP54
Working Temperature-40-50℃
Life time20 Years

Feature:
1. Using low torque starting technology, starting wind speed is 1.5~2m/s. Reason: The generator consists of 27 skew-slot stators and 12-pole rotors, which reduces the cogging torque. (Patent No.: 201020259729.8)
2. The design of the shovel blade: the shovel blade is cast into shape at one time, and the balance is up to 99%.
3. The light source (200W/300W only 7.5kg, 400W 8.5kg) makes installation easier and cheaper.
4. The tail and yaw parts of the turbine (high-strength nylon and glass fiber materials) have been reinforced with ribs to improve reliability and withstand typhoons. 5. The carbon brush is cast in one time, which can effectively reduce the contact resistance, and the service life can reach 100,000 times.
