| Categories | Palletizing Robot Arm |
|---|---|
| Brand Name: | Hulk Robot |
| Model Number: | HK5404 |
| Certification: | CE/ISO9001/IPMS |
| Place of Origin: | Suzhou China |
| MOQ: | 1 Set |
| Price: | Negotiate |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 200 sets per month |
| Delivery Time: | 21 work days |
| Packaging Details: | 1. Fill around the cardboard box with foam 2.Packing carton for 1 set : 680 * 640 * 380mm (L*W*H) |
| Product name: | Robotic arm,Industrial robot,Robot palletizer |
| Arm length: | 540mm |
| DOF: | 4 |
| Application: | Industry, Machinery manufacturing, Metallurgy, Electronics, Light industry, Food, Education |
| Net weight: | 13 kg/28.67 lb |
| Gross weight: | 20 kg/44.01 lb |
| Max Payload: | 0.01~1kg |
| I/O: | 5, can be extended by 16 I/O |
| Repeat position accuracy: | ±0.05mm |
| Voltage rating: | 220V |
| Company Info. |
| Suzhou Hulk Robot Co., Ltd. |
| View Contact Details |
| Product List |
540 Mm Arm Length 1 Kg Payload Packaging And Palletizing Robot Arm
System For Factory Automation
Product description
This 540 Mm Arm Length 1 Kg Payload Packaging And Palletizing Robot Arm
System For Factory Automation can realize loading and unloading process for many factories. It is designed with payload 1kg, arm span 540mm, repeat positioning accuracy
0.05mm, no control cabinet. It has 5 inputs/outputs,which can connect PLC to access the signal of
your production line, so that the robot and the production line can
work together.if not enough,It can be extended by 16 external
inputs/outputs modules,so that truly improve a client’s operations with marked productivity,
flexibility, and reliability.
each have specific benefits that can truly improve a client’s
operations with marked productivity, flexibility, and reliability.
Main applications
Material handling,
loading & Unloading
Machine management
Stacking
Packaging
Testing
Benefits
Single-source solution, from the planning to the world wide after
sales support
Wide range of palletizable packing units
Short cycle times, giving maximum cost-effectiveness
Gentle handling using a customized gripper
Minimized number of pallets
Maximized packing density
High level of standardization (reduction of costs)
Technical parameter
| Model | HK5404 |
| Maximum working radius | 540mm |
| Number of axis | 5 |
| Installation | Floor / desktop |
| N.W/ G.W | 13kg/20kg |
| Repeat Positioning Accuracy | ±0.05mm |
| Maximum Load | 1kg |
| Power Consume | 0.4KVA |
| Power supply | Input:Single phase 110V-240V 50Hz Output:DC 24V(400W) |
| Voltage rating | 220V 50 Hz |
| External communication | WIFI/Ethernet |
| Application | Industry, Academic, Teaching, Education |
| Safety standard | ISO 9001-2015 |
| Control software | Hulkbot Studio |
| Drive System | Steper motor |
| Working condition | -10°C~60°C |
| I/O | Input 5/Output 5,can be expanded by 16 |
Working rang of each axis
| Axis | Working Range | Max Speed |
| Axis 1 | ±160° | 360°/s |
| Axis 2 | -42°~85° | 360°/s |
| Axis 3 | -20°~100° | 360°/s |
| Axis 4 | ±165° | 500°/s |

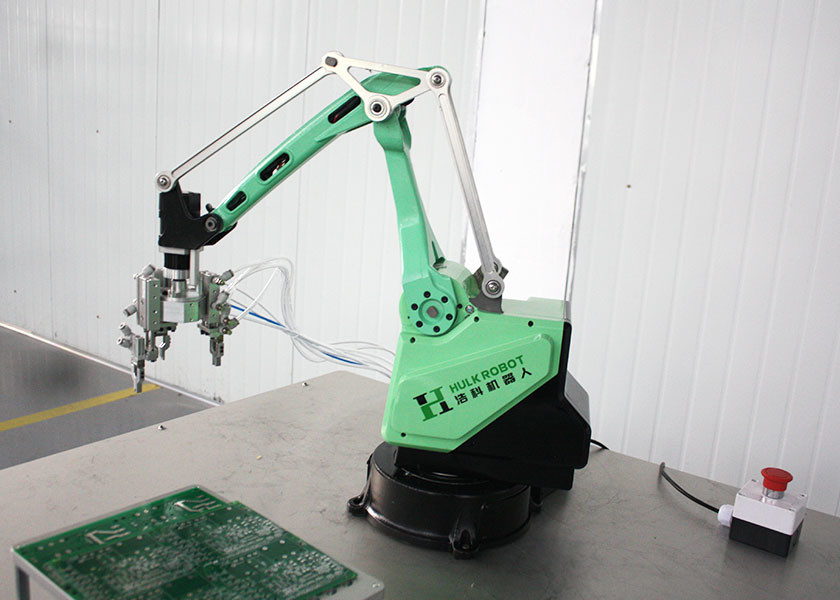

Detailed images
|
