| Categories | Bottle Filling And Capping Machine |
|---|---|
| Brand Name: | Fude |
| Model Number: | FD-F-600 |
| Certification: | CE,ISO,UL,3C |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | 5000usd-20000usd |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 |
| Delivery Time: | 7 |
| Packaging Details: | wooden case packages |
| Packaging Material:: | Plastic, Glass |
| Function: | Washing Filling Capping |
| Weight: | 12500Kg |
| Warranty: | 1year |
| Application: | Pharmaceutical, Beverage, Chemical |
| Bottle height: | 120~310mm |
| Mouth Diameter:: | 26mm~40mm |
| Filling Heads:: | 50 |
| Filling Pressure:: | 0.2~0.4Mpa |
| Capping Head:: | 12 |
| Bottle Diameter:: | 50~96mm |
| Filling Temperature:: | 85-90℃ |
| Filling Valve Flow:: | 140~160ml/s |
| Company Info. |
| Qingdao Fude Machinery Co.,Ltd |
| View Contact Details |
| Product List |

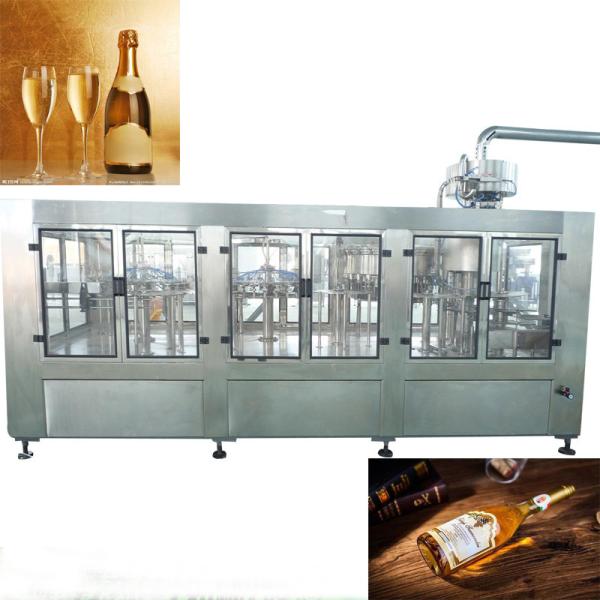

Automatic beer glass bottle filling and capping machine
China hot sale easy operating CE SGS ISO9001 semi automatic wine bottle filling machine
This series of machine is specially apply to glass bottle carbonated drink filling,it combine with the function of washing filling
capping in one machine.It is mainly used for washing,filling capping for carbonated water,cola,sparkling wine,water etc carbonated beverage.Reasonable structure,safety operation,reliable operation,easy maintenance.Transform bottle adopt block bottle neck
technology,no need to adjust equipment level when change different type bottles,simple replace with the bottle mouth,bottle diameter
related arc guide plate,dial etc.Stainless steel washer bottle clip durable,do not touch bottle screw part,to avoid secondary pollution
bottle.And material contact parts are made of food-grade stainless steel,no process corners,easy to clean.Pneumatic diaphragm valve
controls flow of material into the liquid to ensure filling accurate.Open the valve mechanism driven by the cylinder,accurate and reliable.
Tell high flow,high precision filling valve,filling fast,accurate and no liquid surface damage.Capping head adopts constant torque magnetic
and lack of cover protection devices.A complete overload protection devices,can effectively protect the equipment and operator safety.
1)This machine is used for filling, washing and sealing of beer
drinks in glass bottles with metal crown caps or easy-open caps.
2)It used sensor as speed regulator so that clients can easily
adjust machine to meet different power demand.
3)It adopts equivalent pressure filling principle and spring valve
to control the quality of beverage.
4)All portions, such as feeding valve, which contact with material
directly are made of 304 stainless steel or 316L material to meet
the demand of food hygiene.
5)This machine employs international advanced technology with
scientific design, nice appearance, complete functions, easy
maintenance and high automation. It is a top priority for small and
medium sized beer manufacturers and companies.
Technical Parameter
Model | FD 12/6 | FD 18/6 | FD 24/6 | FD 32/8 | FD 40/10 | FD 50/12 | FD 60/15 |
Filling heads | 12 | 18 | 24 | 32 | 40 | 50 | 60 |
Capping heads | 6 | 6 | 6 | 8 | 10 | 12 | 15 |
Capacity(BPH) | 2000 | 3500 | 5000 | 8000 | 12000 | 16000 | 20000 |
Power(kw) | 2.2 | 3.5 | 4.5 | 6 | 7.5 | 9.5 | 11.2 |
Dimension(mm) | 2400*1600 *2500 | 2600*1920 *2550 | 3100*2300 *2800 | 3800*2500 *2900 | 4600*2800 *2900 | 5450*3300 *2900 | 6500*4500 *2900 |
Weight(kg) | 2500 | 3500 | 4500 | 5600 | 8500 | 9800 | 12800 |
|
