Q235B Q345B Prefabricated Steel Structure Warehouse 20-300m

Categories Steel Structure Warehouse
Brand Name: Ruly Steel
Model Number: Ruly0241
Certification: SGS, BV, ISO
Place of Origin: China
MOQ: 300 Square Meter
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Delivery Time: 15 ~ 20 Days
Packaging Details: As request
Application: Light Steel Structure Warehouse
Features: Galvanized Metal Buildings
Type: Steel Structure Warehouse
Working scope: Design,Fabrication, Installation
Raw steel material: Q235B, Q355B, ASTM A36
Service life: 50 Years
Wall and Roof: Steel cladding sheet
Surface treatment: Painting
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

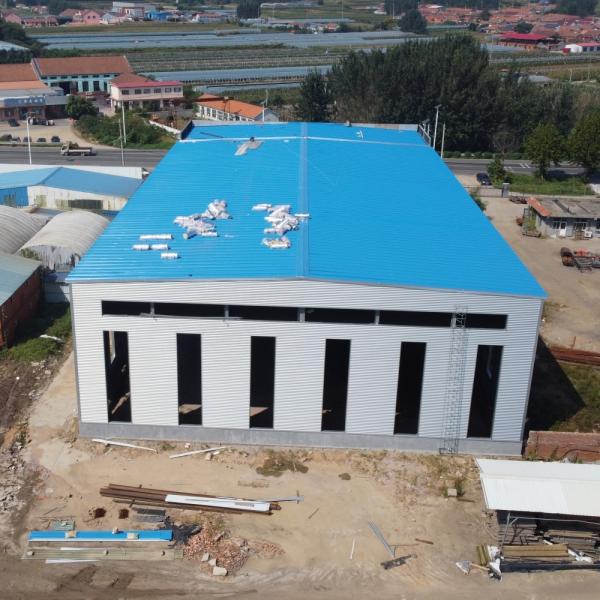

Q235B Q345B Prefabricated Steel Structure Warehouse 20-300m

Low-cost economical prefabricated steel structure warehouse

Steel structure specifications:

1. Material: Q235B or Q345B
2. Certification: CE, BV, SGS, LIoyd's
3. Project scale: length: usually 20 to 300m, width 10m to 60m; height from 2.5m to 30m, eaves height.
4. Span: single span or multiple span
5. Construction type: steel structure steel structure warehouse building, workshop building, agricultural building (horse/cow shed, poultry house), high-rise steel structure building, heavy industrial steel structure building, parking lot, aircraft hanger, steel structure hanger
6. Design: According to customer requirements or we design for customers
7. Quality control: manufacturers with higher quality control or use third parties
8. Installation: Our engineer will help guide the installation, or we will send the engineer to the construction site
9. Guarantee: The main structure is more than 35-50 years old, and the roof cladding is used as the wall: 15 years.


SPECIFICATION OF STEEL STRUCTURE MATERIAL:

Item nameSpecificationMaterial ParameterTechnical Treatment
ColumnH shape,Box,steel pipe,Hot rolled sheetQ235B,Q345BPaint or Hot dip galvanized
BeamH shape,steel Truss,Hot rolled sheetQ235B,Q345BPaint or Hot dip galvanized
BracingSteel rod,Steel pipe,Angle steelQ235B,Q345B
PurlingC or Z shape, purling Thickness:1.8mm~3.0mmQ235B,Q346BHot dip galvanized
Wall and roof panelEPS,Rock wool,Pu,Glass wool Sandwich panel or Single sheet.Steel T=0.426~0.8mm,insulation T=50~150mmAlu-zinc 150g, Fluorocarbon paint
DoorSliding or rolling doorSteel or Aluminum sheet,T=1.0~1.5mmPaint or Hot dip galvanized
Windowalloy-Glass,Aluminium alloy-shutterT=1.0~2.0mmAlloy
Lighting panelFRP, T=1.5mm or T=1.8mmCoefficient of thermal expansion:2.2x10-5/cm/cm/℃Light transmittance 85%
VentilatorTurbine ventilator, and electric typeSteel,stainless steel,PCPaint or Hot dip galvanized,304
GutterGalvanized or stainless steel plateT=2.0mmHot dip galvanized,304
DownpipePVC pipe,Color steel pipe T=0.5mmΦ110,160,200Paint
BoltOrdinary, high strength10.9S,4.8sHot dip galvanized
Anchor boltSteel rod M24,M27 M30Q235B


1. Main structure: combined or hot rolled H-shaped steel.
2. Pur strip: galvanized C lin strip and Z lin strip
3. Roof panel: EPS / rock wool / glass fiber / PU sandwich panel or corrugated steel plate
4. Wall panel: EPS/rock wool/glass fiber/PU sandwich panel or corrugated steel plate
5. Tie rod: round steel pipe
6. Wall or roof support: round rod or angel steel finish, with hot-dip galvanized or anti-rust primer
7. Pillar support and transverse support: angle steel or H-shaped steel or steel pipe
8. Knee pads: angle steel
9. Roof: Corrugated steel plate
10. Wrapping paper: color steel plate
11. Gutter: color steel plate, galvanized steel plate, aluminum plate and stainless steel plate
12. Rainwater spout: PVC pipe
13. Door: sliding sandwich panel door, rolling shutter door, high-speed shutter door or metal door
14. Window: PVC window, aluminum window or glass curtain wall
15. Connection: high-strength bolt
16. Surface treatment: hot dip galvanized or anti-rust primer coating.


Our advantages in steel structure:

1. Have experience in steel structure industry:


Our products have been exported to more than 50 countries. Such as Qatar, Russia, the United States, South America, Japan, South Korea, Australia, France, the Middle East, South Africa, India, Brazil, and other African countries.


2. Equipment and professional production line:


Such as six production lines of H-beam welding machines. 4 cutting lines, 2 C/Z pur production lines, 3 sandblasting machines, 2 CNC plane drilling machines, 3 sandwich plate machine production lines and more than 25 types of corrugated steel plate machines. Our production capacity is about 60,000 tons of steel structures per year.


With an annual output of 10,000 tons of C and Z steel, 1.2 million square meters of sandwich panels, and 8,000 tons of corrugated steel plates. Our quality control team strictly works in accordance with our inspection and testing procedures to ensure quality.


3. Steel structure products:


Our products Steel structure warehouse buildings, workshop buildings, agricultural buildings (horse/cow sheds, poultry houses), high-rise steel structure buildings, heavy industrial steel structure buildings, parking lots, airplane hangers, steel structure hangers, schools, Office buildings, prefabricated houses, container houses, truss roof warehouses, sandwich panels, corrugated steel plates, C&Z steel purlins. We can also provide different types of doors, windows and cranes related to the project.


4. Design and management capabilities:


Our engineers are familiar with various steel structure designs and all detailed drawings. Our team of engineers is an experienced and efficient team. They understand the needs of customers and give accurate designs to save customers' time.


5. Quality control:


We can provide reliable quality products and the best service and after-sales service. We have a strict quality control team to conduct online inspections to ensure quality. at the same time,


Our products have been tested and inspected by the third party SGS, LIoyd and BV.


6. We provide a professional installation team, and can also send engineers to provide installation guidance services.


Information required for design:
1. Building area: length × width × width × height? Please advise?
2. The local wind speed (Km/h) and snow volume (kg/m2)?
3. Roof and wall materials: What are your special requirements for roof and wall panels.
We provide galvanized corrugated steel plates, pre-printed corrugated steel plates and EPS sandwich panels, glass fiber sandwich panels, Rockwool sandwich panels, PU sandwich panels and other sandwich panels with thicknesses of 50mm, 75mm, 100mm, respectively, for the upper and lower panels Steel plate from 0.3-0.7mm Please let me know which type you are satisfied with?
4. Doors and windows: Do you have special requirements for the materials and dimensions of doors and windows?
5. Do you want skylights on the roof? What materials do you want?
6. Does the warehouse need a fan?
7. Crane (if any), crane span, crane lifting height, maximum lifting capacity, maximum wheel pressure and minimum wheel pressure!
8. Surface treatment of steel structure: Do you want primer (paint, what kind of paint or just a common brand?) or hot dip galvanizing?
