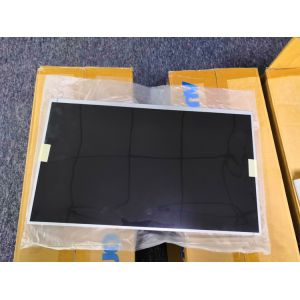

| Categories | AUO TFT LCD |
|---|---|
| Brand Name: | AUO |
| Model Number: | G238HAN01.1 |
| Certification: | ISO9001 |
| Place of Origin: | Japan |
| MOQ: | 1 |
| Payment Terms: | TT / Escrow 10 / Paypal / WesternUnion |
| Supply Ability: | 500PCS |
| Delivery Time: | 1-3 Working Day |
| Packaging Details: | With Original Factory Package |
| Size: | 23.8 Inch |
| Resolution: | 1920(RGB)×1080 (FHD) 92PPI |
| Panel Type: | a-Si TFT-LCD , LCM |
| Pixel Format: | RGB Vertical Stripe |
| Brightness: | 400cd/m² (Typ.) |
| Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on: | Symmetry |
| Display Colors: | 16.7M 70% NTSC |
| Environment: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Company Info. |
| Sapientia Display Co.,LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for
the development of every type and class of LCD, from the design
stage right through to the production phase, while guaranteeing the
highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.
2. AUO G238HAN01.1 Mechanical Details:
| Pixel Features : | Pixel Format | 1920(RGB)×1080 [FHD] | Dot Pitch | 0.0915×0.2745 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2745×0.2745 mm (H×V) [92PPI] | |
| Mechanical Size : | Display Area | 527.04×296.46 mm (H×V) | Bezel Area | 530.2×299.6 mm (H×V) |
| Outline Dim. | 543×317.4 mm (H×V) | Outline Depth | 8.4/11.65 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | - | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 2.30Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
3.AUO G238HAN01.1 Optical Details:
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 14 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 70% | sRGB | 96% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 72% coverage | |
| Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.AUO G238HAN01.1 Backlight Details:
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 18S4P | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 48.6/57.6/64.8V (Min./Typ./Max.) | Current Input | 70/77mA (Typ./Max.) | ||
| Consumption | 16.1/18.1W (Typ./.Max.) | |||||
| Interface Features : | Type | Connector | Position | Lamp Driver | No | |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| E&T | 3707K-S06N-21R | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | |
5. FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
|
