| Categories | High Viscosity Liquid Filling Machine |
|---|---|
| Brand Name: | XHL |
| Model Number: | AVF |
| Certification: | ISO/CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | USD 19999-49999 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/month |
| Delivery Time: | about 30 days |
| Packaging Details: | wood case packaging |
| Type: | filling line |
| Application: | Chemical, Pharmaceutical, Biomedicine |
| Automatic Grade: | Automatic |
| Voltage: | 220V |
| Warranty: | 1 year |
| style: | sterile |
| bottle type: | plastic or glass bottle |
| function: | filling |
| filling range: | 50-1000ml |
| bottle shape: | flat, round, and irregular |
XHL-AVF Automatic Sauce And Daily Cosmetic Cream And Liquid Filling Line
Overview

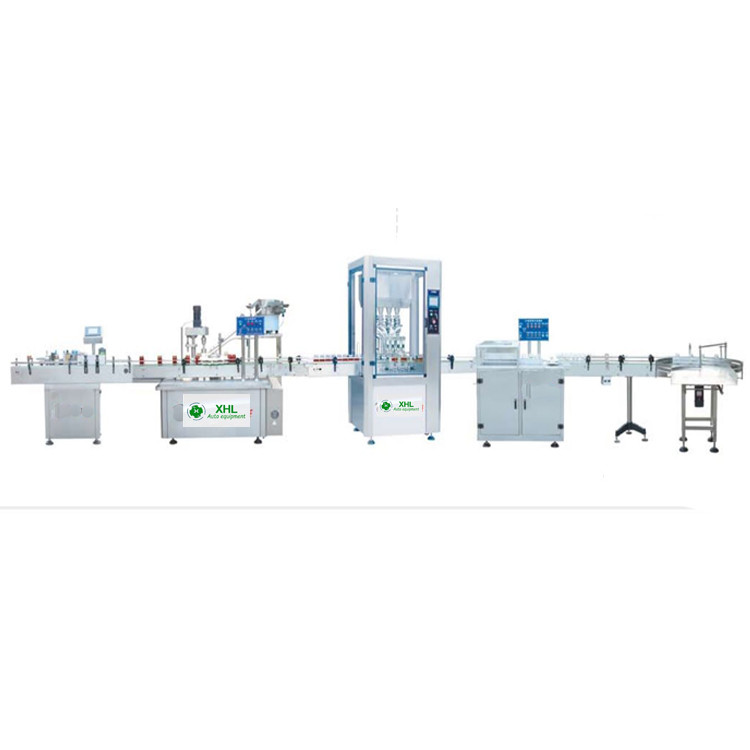

This automatic sauce bottling line is suitable to filling and packing viscosity sauce , like tomato sauce, like tomato sauce, fruit paste, and peanut sauce into glass or plastic bottle, which is often applied in foodstuff and pharmacutical industry. It is fully integrated from GP turnable, XO bottle rinser, AVF sauce filling machine, XG capping machine, LT adhesive labeling machine, complete bottling line. It is most complete featured filling line in marketplace.
Production Capacity
(e.g. 200ml)
4 heads: ≥20bpm
8 heads: ≥40bpm
12 heads: ≥60bpm
16 heads: ≥100bpm
Characteristics
- Adopt injection pump to fill high precision, large range of adjusting dosage.
-It allows to adjustment of filling volume for all filling pumps at the same time, also for minor adjustment of each filling pump to achieve fill high volume accuracy.
-This pump system don' t absorb the material, good chemical stability, It has particular advantage when filling erosive material.
-All contact parts is made of SS 316L and silicone tube, be convenient to clean by CIP.
-Filling system has the function of shrinking, no drop leak.
-Apply to fill various viscosity liquid.
-All of electric elements choose famous brand such as ltaly AT, Japan Mitsubishi and Korea AUTONICS
- Frequency conversion control seed, auto count, no bottle no fill
The whole machine is designed according to requirements of GMP.
Main Technical parameters
| Product model | AVF-4 | AVF-6 | AVF-8 | AVF-12 | AVF-16 |
| Number of filling heads | 4 | 6 | 8 | 12 | 16 |
| Filling precision | 20-1000ml: ≤±1% 1000-5000ml: ≤±0.5% | ||||
| Filling speed bottles/min | 40-60 | 60-80 | 70-90 | 80-100 | 90-120 |
| Filling range | 20-5000ml | ||||
| Air pressure range | 0.4-0.6Mpa | ||||
| Single machine noise | ≤50dB | ||||
| Power supply | 220V 50/60HZ | ||||
| Power consumption | 0.75kw | 0.75kw | 1.2kw | 2.2kw | 2.2kw |
| weight | 550kg | 900kg | 1150kg | 1500kg | 1750kg |
| Outline dimensions(mm) | 1300*1200* 1800 | 1600*1200* 1800 | 1900*1200* 1800 | 2300*1200* 1800 | 2600*1200* 1800 |

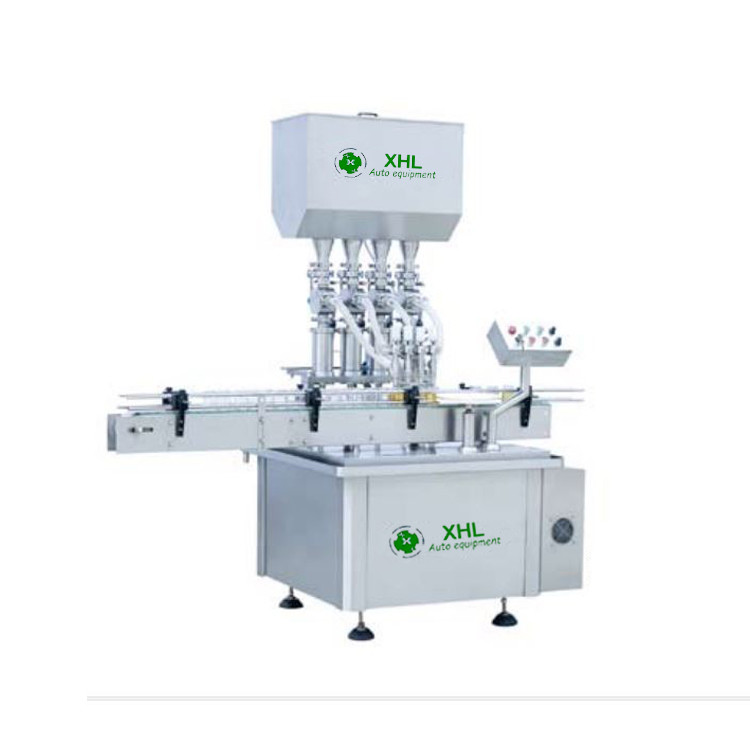

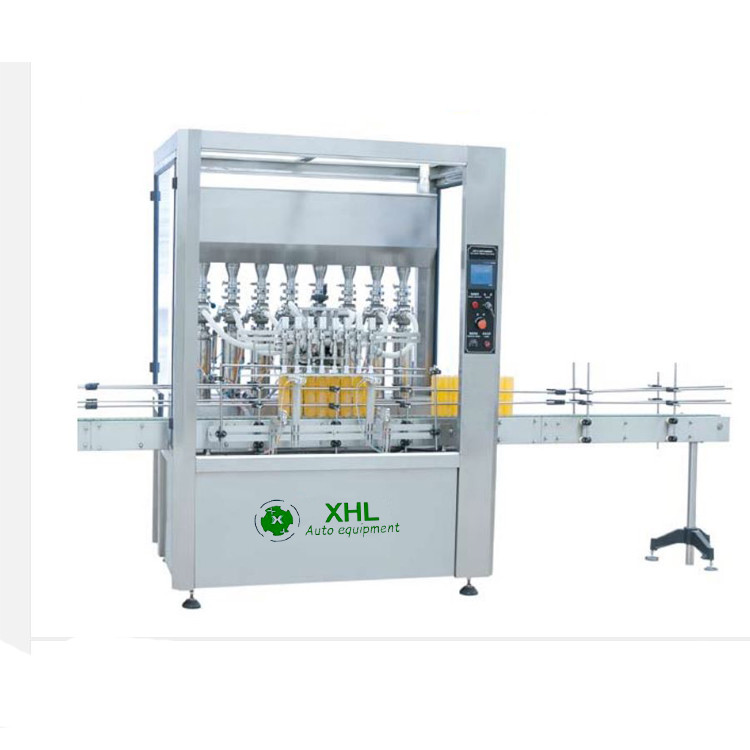

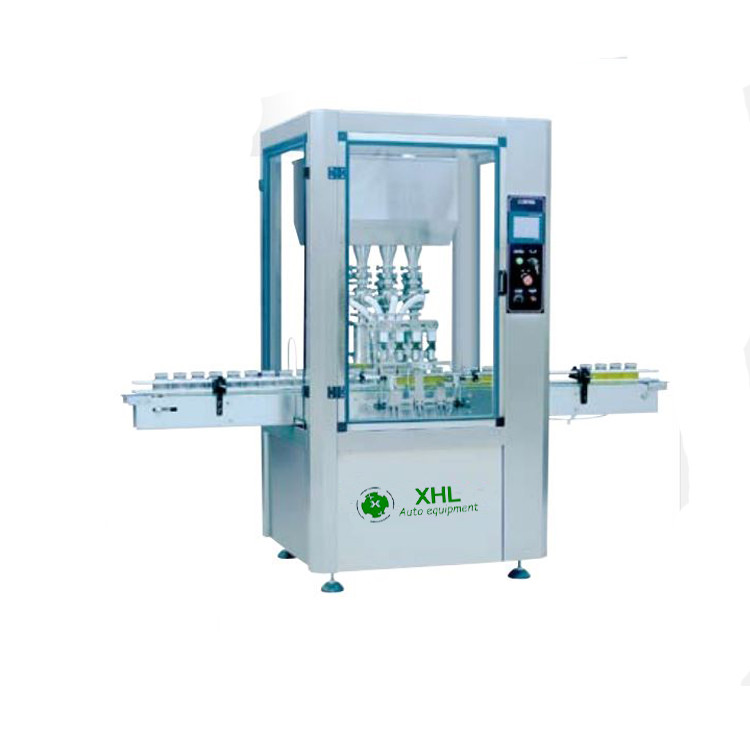

Product Images

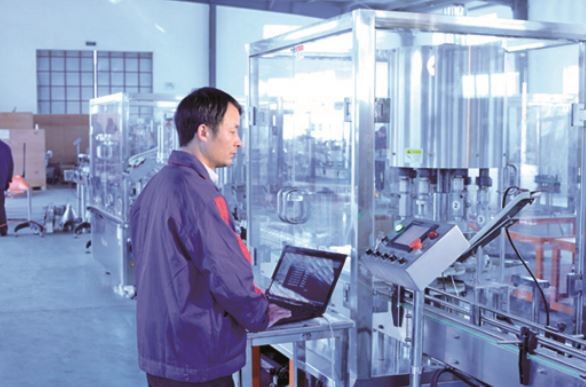

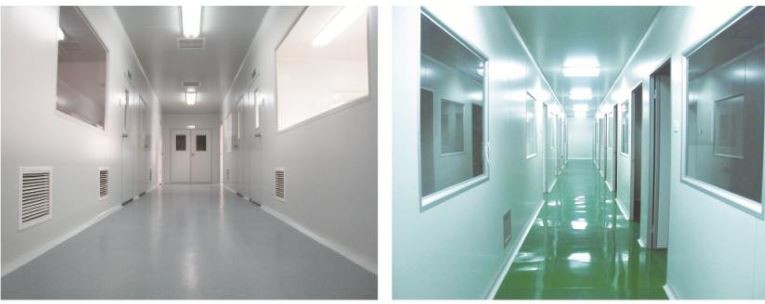

Our Factory

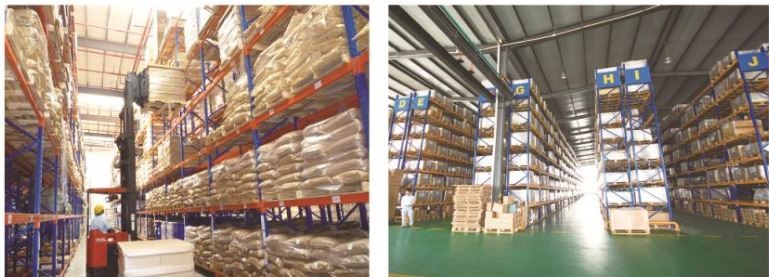

Our Warehouse
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling production line.
-Exclusive manufacturing factory of 20,000 square meters (Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Why choose us?
2. 2 years alibaba supplier
3. 100% QC inspection before shipment
4. 12 months warranty
5. Product Certificated by CE, ISO
Our Partner
Our service and warranty
1.We can customize the machine as customer requried ;
2.Available for OEM/ODM service ;
3.Offer living broadcast or video support;
4.To Door installation and training service ;
5. Offer filling line solution with customer required
6.Customer’s design are welcomed.
We can customize with your packaging materials, production capacity and demands. We will provide you with associated design solutions and case videos.
|
