| Categories | Programmable IC Chips |
|---|---|
| Brand Name: | TI |
| Model Number: | TAS5614LADDVR |
| Certification: | Original Factory Pack |
| Place of Origin: | CHINA |
| MOQ: | 2000pcs |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union,PayPal |
| Supply Ability: | 74000PCS |
| Delivery Time: | 1 Day |
| Packaging Details: | 2000/reel |
| Temperature Range: | –40°C to +150°C |
| Payment Term: | T/T, Paypal, Western Union |
| Voltage: | –0.3 to 4.2 V |
| Current: | 9mA |
| Package: | HTSSOP-44 |
| Factory Package: | 2000pcs/reel |
| Company Info. |
| Anterwell Technology Ltd. |
| View Contact Details |
| Product List |

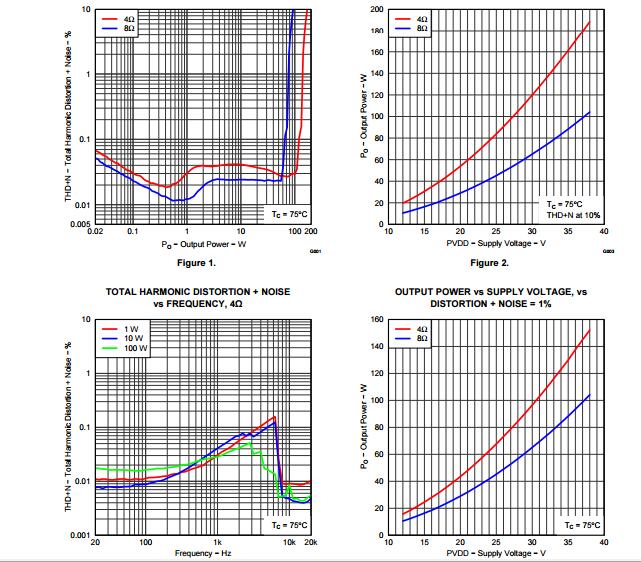

Features
• PurePath™ HD Integrated Feedback Provides:
– 0.03% THD at 1 W into 4 Ω
– >65 dB PSRR (No Input Signal)
– >105 dB (A weighted) SNR
• Pre-Clipping Output for Control of a Class-G Power Supply
• Reduced Heat Sink Size due to use of 60mΩ
Output MOSFET with >90% Efficiency at Full
Output Power
• Output Power at 10%THD+N
– 150 W / 4 Ω BTL Stereo Configuration
– 300 W / 2 Ω in PBTL Mono Configuration
• Output Power at 1%THD+N
– 125 W / 4 Ω BTL Stereo Configuration
– 65 W / 8 Ω BTL Stereo Configuration
APPLICATIONS
• Blu-ray™/DVD Receivers
• High Power Sound Bars
• Powered Subwoofer and Active Speakers
• Mini Combo Systems
| ABSOLUTE MAXIMUM RATINGS(1) |
VDD to GND, GVDD_X(2) to GND –0.3 to 13.2 V PVDD_X(2) to GND(3) , OUT_X to GND(3) , BST_X to GVDD_X(2)(3) –0.3
to 50 V BST_X to GND(3)(4) –0.3 to 62.5 V DVDD to GND –0.3 to 4.2 V AVDD to GND –0.3 to 8.5 V OC_ADJ, M1, M2, M3, C_START, INPUT_X to GND –0.3 to 4.2 V RESET, FAULT, OTW, CLIP, to GND –0.3 to 4.2 V Maximum continuous sink current (FAULT, OTW, CLIP) 9 mA Maximum operating junction temperature range, TJ 0 to 150 °C Storage temperature, Tstg –40 to 150 °C Lead temperature 260 °C Human body model(4) (all pins) ±2 kV Electrostatic discharge Charged device model(4) (all pins) ±500 V |
