| Categories | Fiber Optic Y Cable |
|---|---|
| Brand Name: | Geehe or OEM |
| Model Number: | Y Cable |
| Certification: | ROHS, REACH, UL, ISO |
| Place of Origin: | Wuhan, China |
| MOQ: | 10 PCS |
| Price: | Price Negotiable |
| Payment Terms: | Bank Transfer |
| Supply Ability: | 10,000 pcs per month |
| Delivery Time: | 7-10 days |
| Packaging Details: | plastic zip bag and carton |
| Material: | Corning cable |
| Connector: | LC/UPC Twist |
| Demo: | WBC-12-135-50-20-NA-6/2 |
| Length: | Customized |
| HS Code: | 85447000 |
| Cable Diameter: | 2.0mm |
| Fiber Mode: | Simplex |

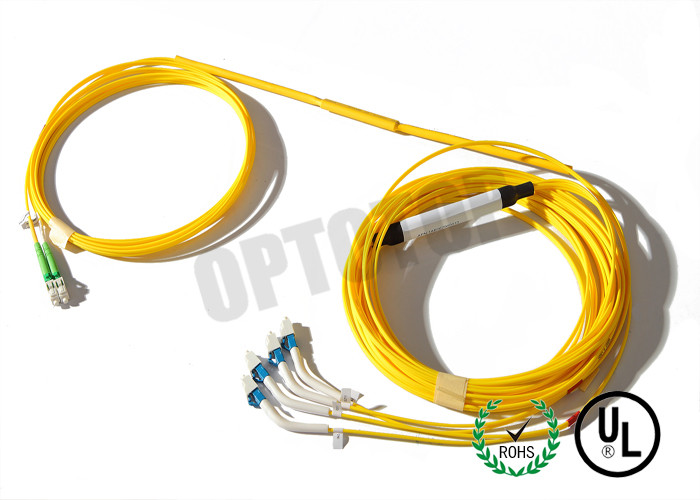

LC/UPC Fiber Optic Y Cable 2x4 LC/APC-Y Cable LC/UPC 2.0mm Fiber
Optic Coupler Module
WBC-12-135-50-20-NA-6/2
Description
Optical Fiber Y Cable is the cable with twisted Connectors
terminated on its ends respectively to release the jumping
connection of light patch.
Features
Low Insertion Loss,High Return Loss
Good repeatability and Interchangeability
Application
Long-haul,Metro and Access System
Fiber CATV and Fiber Network System
Specification
OPTIC AND/OR ELECTRIC SPECIFICATION
| Parameter | Specification | Unit | Note | |
| Operating Wavelength | 1260~1360&1471~1611 | nm | / | |
| Nominal Coupling Ratio | 50/50 | |||
| IL | COMMON IN→OUT-1 | ≤4.1 | dB | |
| COMMON IN→OUT-2 | ||||
| IN-1→COMMON OUT | ||||
| IN-2→COMMON OUT | ||||
| PDL | ≤0.2 | dB | ||
| Uniformity | ≤0.7 | dB | ||
| Return Loss | ≥55 | dB | ||
| Directivity | ≥55 | dB | ||
NOTE: All the data above include the loss of connectors.
OPERATION/STORAGE TEMPERATURE/HUMIDITY
| Parameter | Specification | Unit | Note |
| Operating temperature | -20 ~ +70 | °C | |
| Operation Humidity | 5~95 | %RH | |
| Storage temperature | -40~+85 | °C | |
| Storage Humidity | 5~95 | %RH | |
| Power Handling | 500 | mW |
Pigtail and Connector
| Parameter | Specification | Unit | Note |
| Fiber Pigtail | SMF-28e+ 1.8mm duplex tube, LSZH | ||
| Fiber Length(All Ports) | See below table | ||
| Connectors | COMMON:Simplex-LC/APC 180-degree boot IN&OUT:Simplex-LC/PC 45-degree boot | ||
| Dimension | φ13*130 | mm |
|
