| Categories | Compression Testing Machine |
|---|---|
| Brand Name: | PTE |
| Model Number: | Microcomputer Controlled Concrete Compression Testing Machine |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T, Western Union |
| Delivery Time: | wooden case |
| Packaging Details: | within 10 days after the confirmed order |
| Usage: | Testing Machine |
| standards: | ASTM, DIN, BS, JIS, GB, etc. |
| Display: | Digital |
| Driving: | Hydraulic |
| Control: | Manual |
| Column Processing: | Galvanized |
| HS Code: | 9024800000 |

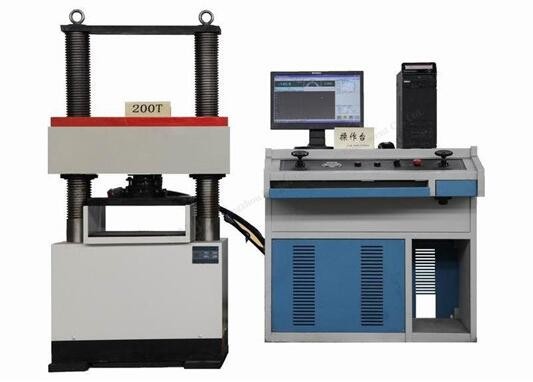

concrete compression testing machine is composed of the main
machine, the hydraulic source, the controller, and the
computer-control system. It is used in the compression test on
concrete. The activity crossbeam is driven by electric power to
adjust the test space. It has functions of automatic constant rate
loading, digital force value display, automatic data processing,
and printing of loading curve and test report. Concrete compression
testing machine is an ideal equipment foe colleges, institutions,
quality supervision department, and factories.
Concrete compression testing machine is equipped with protection
systems including position limit, automatic shut off on overload,
automatic power off on overcurrent or current leakage, emergency
switch, etc. The test space is enclosed with clear tempered glass
shield, which can prevent outburst of shattered concrete. The
Italian imported oil pump unit generates little noise, with high
oil circuit stability without impact. The Italian imported servo
control valve ensures the high precision of constant stress
loading. The double leading screw structure enables the electric
adjustment of the test space, which contributes to the compact and
reasonable layout.
Technical parameters:
| Model | PTE-1000 | PTE-2000 | PTE-3000 |
| Max. testing force | 1000 | 2000 | 3000 |
| Force range(kN) | 40~1000 | 80~2000 | 120~3000 |
| Test accuracy | ±1% | ||
| Compression space(mm) | 500 | ||
| Compressing disc size (mm) | φ220 | φ300 | φ350 |
| Distance between columns (mm) | 500 | 500 | 500 |
| Max. piston stroke (mm) | 100 | 100 | 100 |
| Adjustment method | Automatically | ||
| power | 4.5KW | 5.0KW | |
| voltage | 220V/ 380V ( Can configured with national standard voltage) | ||
| Host machine (L×W×H)(mm) | 800×580×1650 | 800×580×1650 | 800×580×1800 |
| Weight(kg) | 2000 | 2300 | 2550 |
| Computer configuration | Lenovo | ||
| Printer configuration | HP A4 colour ink-jet printer | ||
| Softer ware | English version WINDOWS XP software 1 set | ||
| Fixtures | Automatic self-aligning ball seat; | ||
Concrete compression testing machine is under the automatic control of computer and operated through the computer interface. The measurement and control systems are of high integration level and stability due to its chip integration technology and professional systems of data collection and signal amplification. The Lenovo computer is adopted to finish the stetting, data collection, calculation, data procession, result display and printing, equipped with KQL-PowerTest2001 intellectualized control software. The control software shows the testing force, force peak value, time interval, and force-time curve in real time, and completes the data processing according to national standards, and then stores the test data and prints the test report in A4 breadth. The whole software is programmed specially according to the test standard of concrete, so it is convenient for the concrete testing operation.
