1000kn/2000kn/3000kn Computerized Compression Testing Machine

Categories Compression Testing Machine
Brand Name: PTE
Model Number: 1000kn/2000kn/3000kn Computerized Compression Testing Machine
Certification: CE
Place of Origin: China
MOQ: 1
Payment Terms: L/C, T/T, Western Union
Delivery Time: wooden case
Packaging Details: within 10 days after the confirmed order
Usage: Testing Machine
standards: ASTM, DIN, BS, JIS, GB, etc.
Display: Digital
Driving: Hydraulic
Control: Manual
Column Processing: Galvanized
HS Code: 9024800000
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

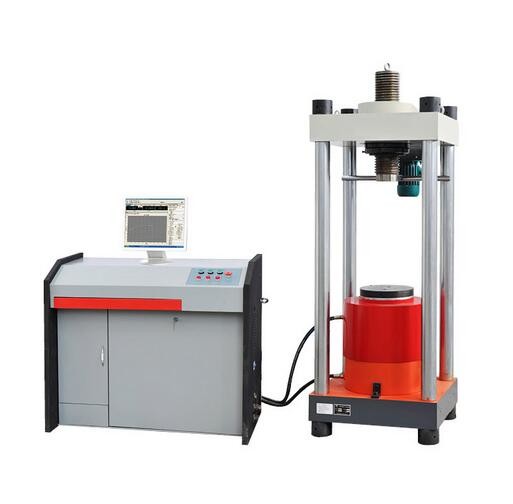

1000kn/2000kn/3000kn Computerized Compression Testing Machine

1000kn/2000kn/3000kn Computerized Compression Testing Machine
1000kn/2000kn/3000kn Computerized Compression Testing Machine

Product Description
1.Applications and features of testing machine
1) This testing machine adopts high precision hydraulic servo valve to drive precision hydraulic cylinder. Closed loop control of test force, displacement can be realized when doing compression test or other test.
2) Main machine of this testing machine adopts 4 columns structure, underneath hydraulic cylinder, high efficiency, low noise and quick response.
3) Hydraulic servo valve is installed on the independent servo control cabinet, high efficiency, low noise and quick response.
4) During test, computer can set and display test parameters, control test procedure, collecting data and save test results.
2.Spec. of testing machine
No.ItemSpec.
1ModelW1000W2000W3000
2Max. test force1000KN2000KN3000KN
3Grade of testing machinegrade 1
4Measuring range of load4%-100%FS
5Relative error of test force indicated≤±1%
6Resolution of test force0.1kN
7Compression space0-350mm (can be made to order)
8Diameter of upper compression platenφ300mm (can be made to order)
9Lower compression platen300X300mm
10Span between columns360mm
11Stroke of piston0-200mm
12Test space adjusting typeby blocks
13Loading speed0-40kN/s
14Dimension of control cabinet1100X700X940mm
15Voltage and power3 phase 4 wire, 380V±10%,50Hz,1.5kw







Three Star Service :
*First Star---Pre-service
24 Hours online service for your consult
Help choose right model,and a series of service,person,advise.
*Second Star---Middle Service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
. *Third Star---After serivce
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Provide newest software vision when update
--Remote control technical consult
--Free installation DVD
--Maintenance plan
