| Categories | Barcode Reader Module |
|---|---|
| Brand Name: | Rakinda |
| Model Number: | LV4200 Barcode Reader Module |
| Certification: | CE FCC ROHS |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1 piece |
| Price: | Negotiation |
| Payment Terms: | Western Union, T/T, paypal |
| Supply Ability: | 1000 piece for a week |
| Delivery Time: | 3-10 working days |
| Packaging Details: | package in carton; |
| Name: | Auto Code Scanner |
| Operating Voltage: | 3.0~5.5VDC |
| MOQ: | 1 piece |
| Usage: | Turnstile |
| Module: | LV4200 Qr Code Reader |

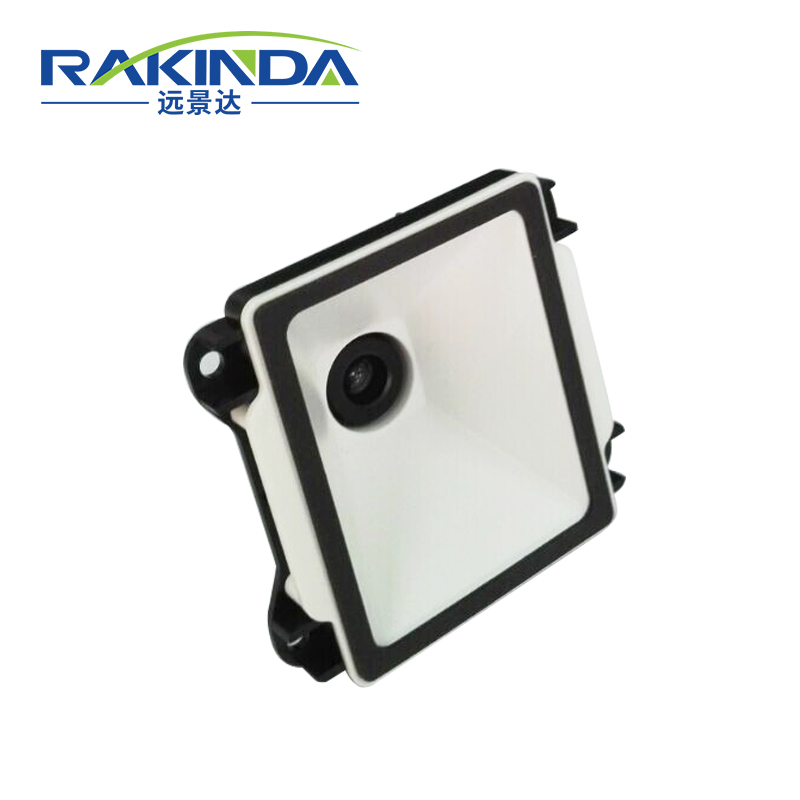

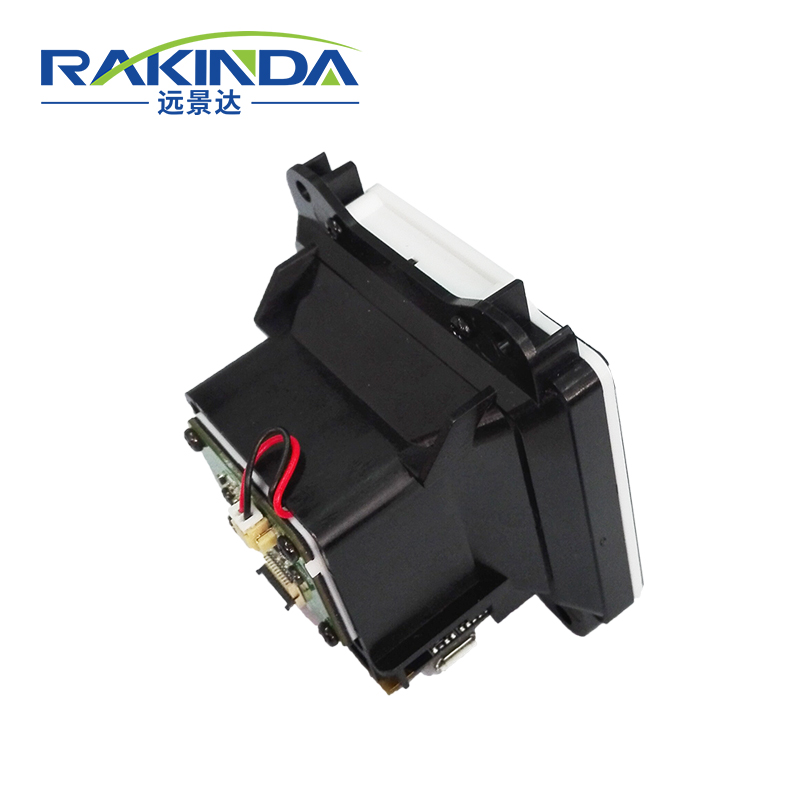

USB QR Code Raspberry Pi Barcode Scanner Module For Car Park Turnstile
Communication Interfaces
The LV4200 can communicate with the host device via its TTL-232 interface. This Interface is applicable to most system architecture. For those requiring RS-232, a TTL-232 to RS-232 conversion circuit is needed.
The LV4200’s TTL-232 interface supports baud rates from 1200 bps to 115200 bps. It does not support hardware flow control its default settings are 96000 bps, 8 data bits, no parity check and 1 stop bit.
Besides, the LV1200 can also communicate with the host device via its USB interface ( optional )
A. USB HID-KBW : Based on USB connection, the engine’s translation is simulated as USB keyboard input. It works on a plug and pay basis and no driver is required;
B. USB COM Port Emulation : THe USB Interface on the host device is emulated as a serial port with the same data transmission and configuration as a real serial port. A driver is required.
C. USB HID-POS : It is based on HID with no need for custom driver and is way more efficient in communication than keyboard emulation and traditional RS-232 interface.
| Performance | Image Sensor | 752×480 CMOS | |
| Light Source | White LED | ||
| Symbologies | 2D | PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000, | |
| 050, 080, 100, 140) | |||
| 1D | Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN, | ||
| UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, | |||
| Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11, | |||
| Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14, RSS-Limited, | |||
| RSS-Expand) | |||
| Resolution | ≥5mil | ||
| Typical Depth of Field | EAN-13 | 10mm-55mm (13mil) | |
| PDF 417 | 15mm-35mm (6.67mil) | ||
| Data Matrix 15mm-40mm (10mil) | |||
| QR Code | 10mm-50mm (15mil) | ||
| Symbol Contrast | ≥30% reflectance difference | ||
| Scan Angle** | Roll: 360°, Pitch: ±40°, Skew: ±40° | ||
| Field of View | Horizontal 80°, Vertical 56° | ||
| Mechanical/ | Interface | USB | |
| Electrical | |||
| Operating Voltage | 3.0~5.5VDC | ||
| Current@5VDC | Operating | 160mA | |
| Sleep | 12mA | ||
| Dimensions | 65.1(D)×61.1(W)×43.6(H)mm | ||
| Weight | 41.5g | ||
| EnvironmentaL Operating Temperature | -20℃~+60℃ (-4°F~140°F) | ||
| Storage Temperature | -40℃~+80℃(-40°F~176°F) | ||
| Humidity | 5%~95% (non-condensing) | ||
| Ambient Light | 0~100000lux (natural light) | ||
| Accessories | USB Cable | Used to connect the LV 4200 to a host device. | |
As one of the leading suppliers in IoT (Internet of Things),
RAKINDA, oriented by clients demand, is devoted to the development
and innovation of intelligent firmware products and enjoys rich
experience and resources in IoT and the big data area.
