| Categories | Pressure Temperature Transmitter |
|---|---|
| Brand Name: | Emerson-Rosemount |
| Model Number: | Rosemount 3051L |
| Certification: | CO |
| Place of Origin: | Singapore |
| MOQ: | 1 |
| Price: | 2000 USD |
| Payment Terms: | T/T / Paypal |
| Supply Ability: | 50 |
| Delivery Time: | 1-2 week |
| Packaging Details: | New Original Box |
| Category: | Level Transmitter |
| Max. Operating Pressure: | Up to 300 psi (20,68 bar) |
| Process Temperature Range: | -205°C-105°C |
| Seal System Type: | Direct Mount, Tuned-System |
| Rangedown Up to 150:1 Communication Protocol: | 4-20 mA HART |
| Process Wetted Material: | 316L SST, Alloy C-276, Tantalum |
| Company Info. |
| Shenzhen Wisdomlong Technology CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Pressure Transmitter Rosemount 3051L Level Transmitter Wireless
Singapore Order
Introduction:
With field-proven reliability, the Rosemount 3051L Level Transmitter is a fully-integrated level solution. This safety-certified transmitter allows for direct mounting or a Tuned-System™ assembly for optimized performance that reduces temperature effects by 10-20% and improves response time by over 80% versus traditional installations. Power advisory diagnostics enable this device to monitor electrical loop integrity and the Local Operator Interface (LOI) offers on-site commissioning.
Specifications:
| Max. Operating Pressure | Up to 300 psi (20,68 bar) |
| Process Temperature Range | Based on fill fluid - Maximum 401°F (205°C), Minimum -157°F (-105°C) |
| Communication Protocol | 4-20 mA HART®, WirelessHART®, FOUNDATION™ Fieldbus, PROFIBUS®, 1-5 V Low Power HART® |
| Seal System Type | Direct Mount, Tuned-System |
| Transmitter Connection | Transmitter Connection |
| Process Connection | Flanged: ANSI/ASME, EN/DIN, JIS |
| Process Wetted Material | 316L SST, Alloy C-276, Tantalum |
| Diagnostics | Basic Diagnostics, Power Advisory Diagnostics |
| Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NACE®, hazardous location, see full specs for complete list of certifications |
Ordering Type
3051L Wireless / Level Transmitter

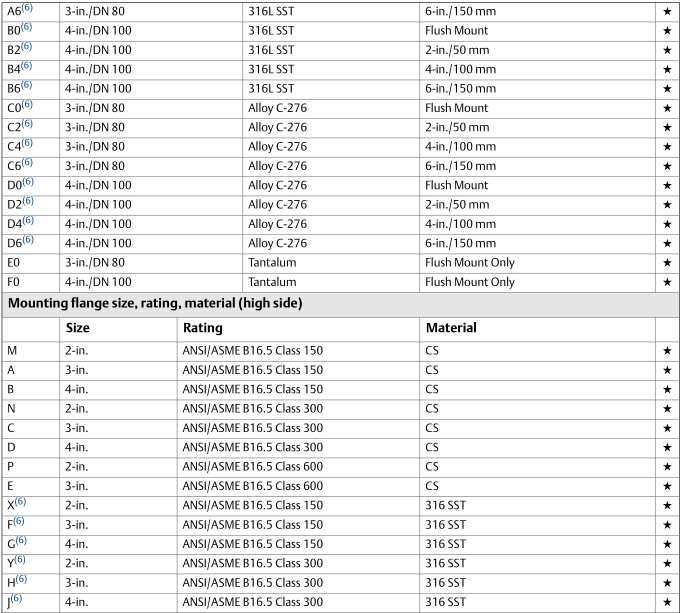

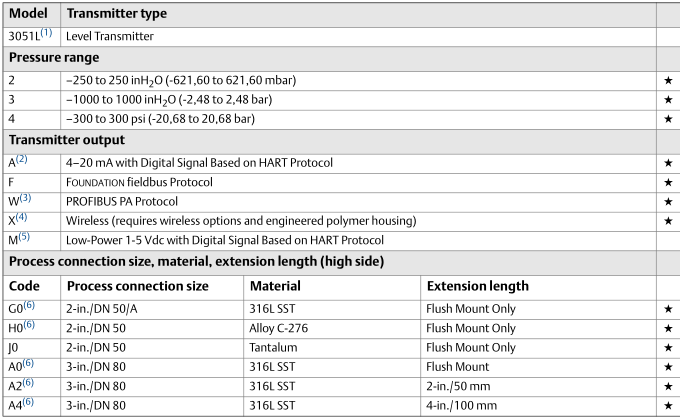

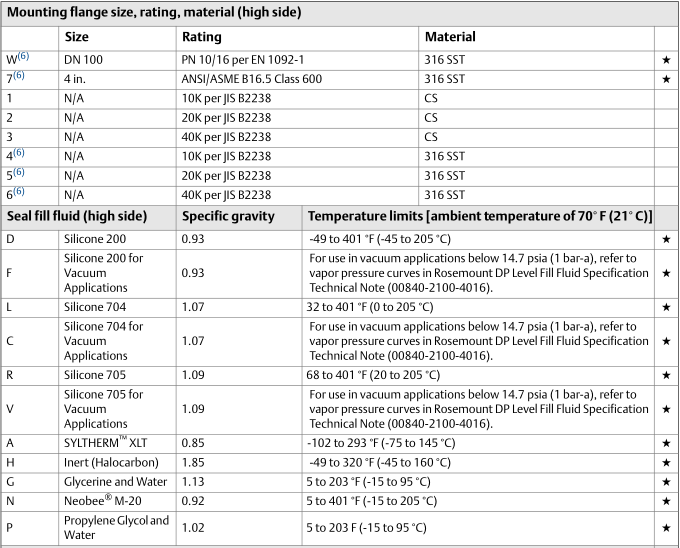

Rosemount 3051L Level Transmitter Ordering Information
The Standard offering represents the most common options. The
starred options should be selected for best delivery.
The Expanded offering is subject to additional delivery lead time.
If you need more order information, we can send you the complete datasheet.

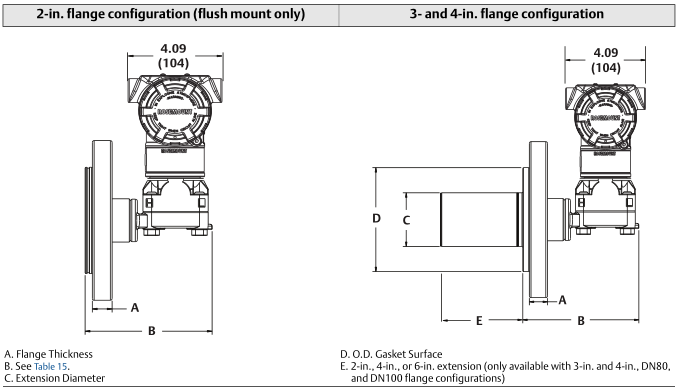

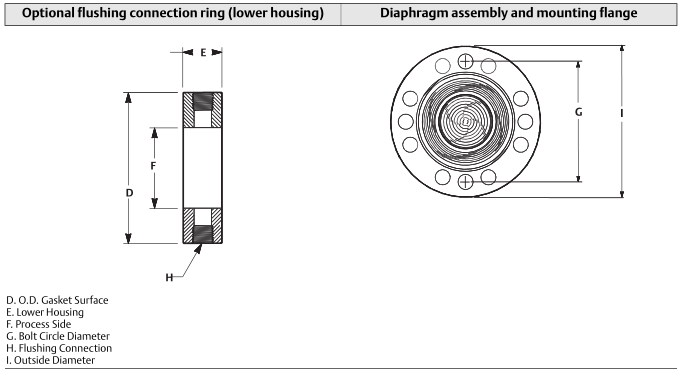

Rosemount 3051L Dimensional Drawings
Certifications:
1. Certificate of Origin
2. Calibration Certificate
3. Material Traceability Certification
Typical model number: 3051L 2 A A0 D 21 A A F1
Good Service in WTL:
> We offer high quality, fast delivery, competitive price for
Rosemount Flowmeter.
> Please send your RFQ to get the latest price.
> Normally, we will ship the items in 1-2 weeks after receive
the payment.
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us
and we will use your preferred ways.
> We have a large stock and the prices are variable, so
sometimes the prices we post are not accurate. If needed, please
contact us for specific prices.
