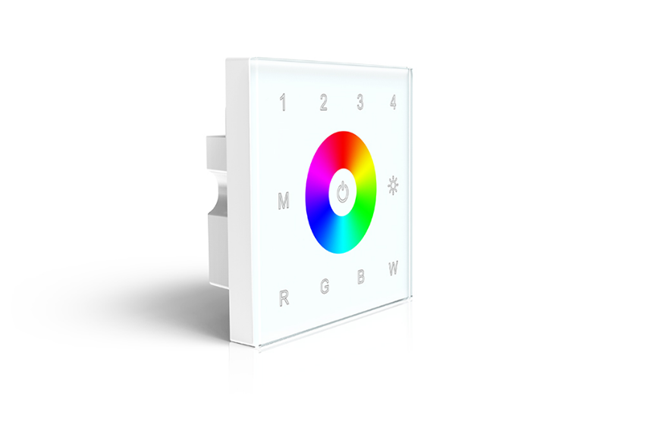

PWM LED Light Controller Touch Screen Panel Switch For RGB / RGBW Led Light T3

Touch Panel PWM touch screen panel switch for RGB / RGBW Led Light T3

Production Description

● Touch panel RGB/RGBW PWM constant voltage controller , can also used as RGB/RGBW remoter.
● Select RGB or RGBW light type, whether as a remoter
through 2bit DIP switch .
● Ultra sensitive high strength glass touch panel with touch color wheel in the middle and backlighting .
● Smooth and accurate color adjustment by touching the color wheel .
● Independent brightness adjustment of each RGBW channel to achieve millions of colors .
● Built in 30 change mode optional, adjustable speed and brightness .
● Adopt 2.4GHz wireless technology, when used as controller , can accept up to 10 remoter control. when used as remoter , can remote control multiple RGB/RGBW controller .
● Can work with WiFi-relay controller after install APP on IOS and Android system .
● Work with power repeater to expand output unlimitedly .

Technical Parameters

● Input voltage 5 24VDC
● PWM constant voltage+RF(2.4G) Output type
● 4CH,3A/CH Output current
● 4 x (15-72)W Output power
● Light type: RGB/RGBW
● Grey levels: 4096/CH
● Dimming range: 0-100%
● Remote distance: 30m
● Working temperature: -30℃~55℃
● L86×W86×H36.5mm Product size
● Net weight: 152g

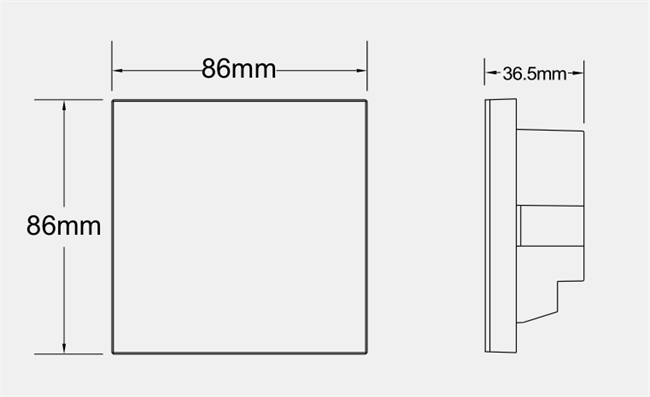

Product Size

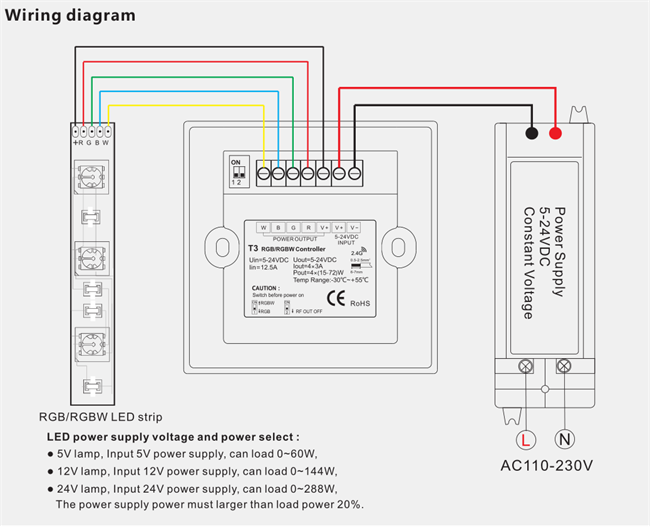

Wiring Diagram
