225L Constant High Low Climatic Temperature Humidity Test Machine Price
Application
The machine can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Test Standard
GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Specification
| Mode | LY-280 | LY-2150 | LY-2225 | LY-2408 | LY-2800 | |
Inner Size W×H×D(cm) | 40×50×40 | 50×60×50 | 60×85×80 | 60×85×80 | 100×100×80 | |
Outside Size W×H×D(cm) | 93×155×95 | 100×148×106 | 117×166×91 | 140×176×101 | 170×186×111 | |
| Volume (V) | 80 L | 150L | 225L | 408L | 800L | |
| Temp and Hum Range | A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C RH20%-98% | |||||
| Function | Fluctuation | ±0.5°C ±2.5%RH | ||||
| Deviation | ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH) | |||||
Controller Analytical Accuracy | ±0.3°C ±2.5%RH | |||||
| Material | Inner Wall | #SUS 304 Stainless steel | ||||
| Outer Skin | #SUS 304 Stainless steel | |||||
| Heat Preservation | High temperature resistant, high chlorine acid b vinegar foam insulation materials | |||||
| Wind Cycling Way | Centrifugal fan-broadband type forced air circulation | |||||
| Refrigeration Way | Single stage compression refrigeration | |||||
| Refrigerater | French Tecumseh | |||||
| Refrigerants | R4O4A USA Dupont environmental protection refrigerant(R23+R404) | |||||
| Condensing Way | Air-cooled or water-cooled | |||||
| Heater | Nickel chrome heating wire heater | |||||
| Humidifier | Semi-closed steam and wet | |||||
| Water Suplying Way | Automatic cycling water supply | |||||
| Standard Accessories | 1 Observe window(double-deck cavity toughened glass), 1 50mm test hole in the left, 1 PL inner chamber lamp, 2 clapboards, 1 bag of wet and dry bulb, 3 fuses, 1 power line. | |||||
| Safety device | Non- fuse-switch(compressor overload, refrigerant high low voltage, over-humidity and temperature protection, Protection switch,fuse stoppage warning system | |||||
Characteristics
1. Programmable Constant Temperature and Humidity Chamber Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2. Programmable Constant Temperature and Humidity Chambercontrol temperature&humidity well-distributed, precisely and steady.
3. Programmable Constant Temperature and Humidity Chamber Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.

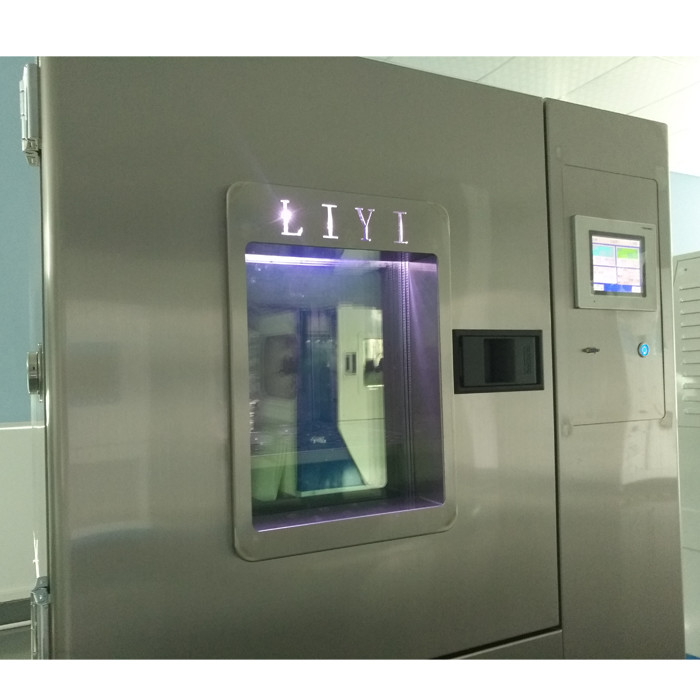

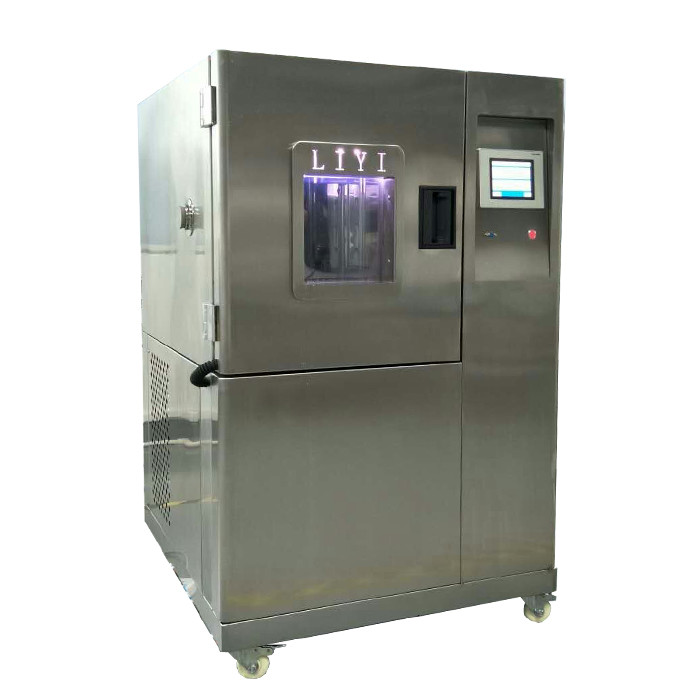

Product Picture:
|
