| Categories | Optical Fiber Patch Cord |
|---|---|
| Brand Name: | NewLight |
| Certification: | ISO ,ROSH |
| Place of Origin: | China |
| MOQ: | 1~100000 |
| Price: | 0.1~100 |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 1000000 |
| Delivery Time: | 7 working days |
| Packaging Details: | 1 pcs per pack |
| Name: | SC LC fiber patch cord |
| Diameter: | 2.0mm |
| Model: | Single |
| Connector: | SC-LC |
| Color: | Green |
| Length: | 3 meter |
| Company Info. |
| NEW LIGHT OPTICS TECHNOLOGY LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

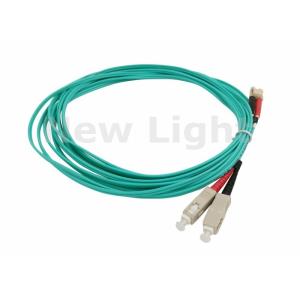

SC-LC UPC 3M Single mode duplex fiber optic patch cord cable SC-LC 2.0mm FTTH fiber optic jumper cable
Characteristics
1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4,
SMA
2) Ferrule End-face: PC, UPCAPC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or
62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores,
24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
Specifications
| Specification | Unit | FC, SC, LC/Armored Cables | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion loss | dB | ≤2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥550 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
| Interchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | ℃ | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | ℃ | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
Applications
CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications
Features
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
CE,ROHS,FCC
|
