4x2 Double Axle Dump Truck , Multi Purpose 10 - 15 15 Tonne Tipper Truck

Categories Utility Dump Truck
Brand Name: FAW
Model Number: CA3169
Certification: ISO9001
Place of Origin: Qingdao China
MOQ: 1 unit
Price: Negotiation
Supply Ability: 30 UNITS PER MONTH
Delivery Time: 30 Working Days
Packaging Details: Bulk cargo vessel, RO-RO vessel, 40/45 HQ container
Cabin: FAW J5K, DRAGON V
Driving type: 4x2
Truck type: Strengthened dump truck
Dump body material: Carbon steel, High-strength steel
Steering: Power-assistant, LHD
Color: Red
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

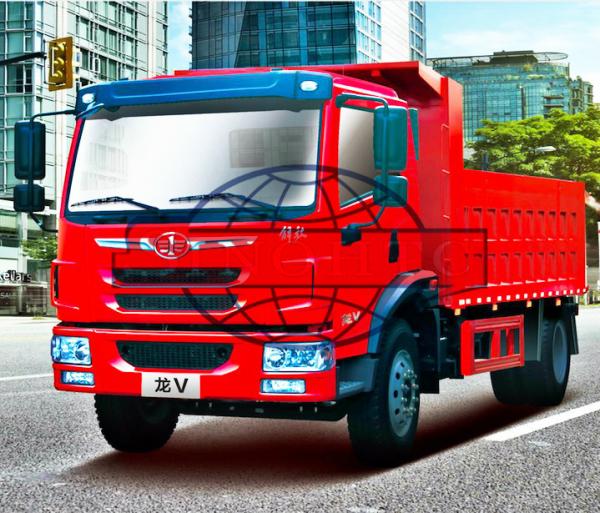

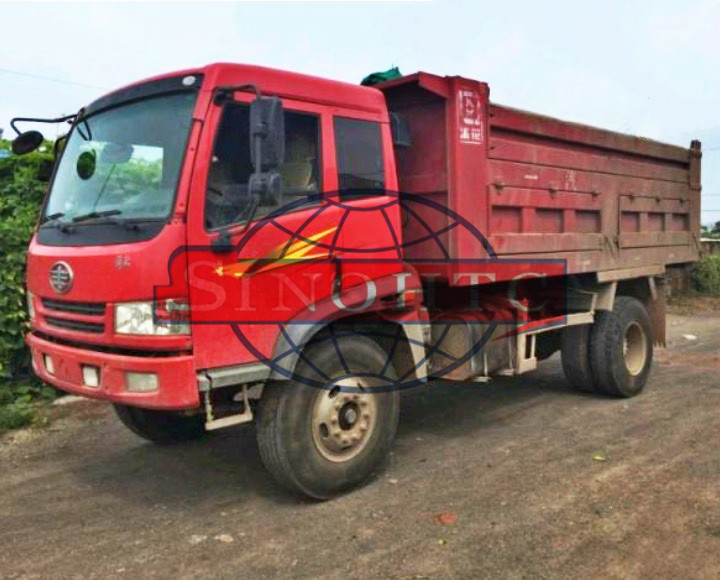

4x2 Double Axle Dump Truck , Multi Purpose 10 - 15 15 Tonne Tipper Truck

10 - 15 Tons 2 axles 4x2 Strengthened multipurpose Small Dump truck FAW


When you use the 10 - 15 Tons 4x2 Strengthened multipurpose Small Dump truck FAW, noticed please:


1. When used for paving asphalt transportation, the lifting mechanism requires slow lowering device.


2. When selecting a dump truck for iron ore powder, it is necessary to make a statement with the manufacturer to select a carrier for iron ore powder.


3. Do not use the shovel carriage to transport the sticky goods such as silt and clay. The structure of the dipper compartment makes the sticky goods more difficult to unload.


Truck modelCA3120PK2Y
Drive wheel4x2
Actual Loading capacity, tons12-15
EngineModelFAW CA6110/125Z1A2/// CA6DL-220 /// WP4.165
Maximum output170HP /// 220HP ///165HP
Emission standardEuro II
Number of cylinder6-cylinder in-line with water cooling, turbo-charging and intercooling
TransmissionCA6TB085M
Clutch380mm
Front Axle8E
Rear AxleImpulse Welding type 435 (rate:5.571)
ChassisFrame237*75*7 mm
Front suspension7
Fuel tank200L
SteeringAmerican TRW tech
BrakesDrum
Wheel Base(mm)3750
Wheels&TiresRadial 10.00R2016, DOUBLE COIN brand
Driver's cabinModel, descriptionJ5k,RHD,AC
Sleeper1
ElectricsOperating voltage24v
StarterChina brand
Alternator24v
Overall DimensionsOverall Length6698mm
Overall Width2496mm
Overall Heigth3280mm
WeigthGVW20000kg
Front axle capacity6500kg
Rear axle capacity13500kg
PerformanceMaximum speed85 km/h
Cargo Body DimensionsLxWxH, mm4000x2300x800
Thickness of platebottom 4mm, side 3mm
Lifting TypeMiddle lifting Ø160 mm Hydraulic cylinder
