| Categories | Automatic Bottle Filling Machine |
|---|---|
| Brand Name: | JINYATE |
| Model Number: | CGF40-40-12 |
| Certification: | CE SGS |
| Place of Origin: | China(Mainland) |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 99 sets per year |
| Delivery Time: | 35 working days |
| Packaging Details: | standard wooden cases |
| product name: | water bottling machine |
| function: | rising filling capping |
| Model: | CGF40-40-12 |
| capacity: | 16000-18000 B/H for 500ml bottle |
| suitable bottle: | PET plastic bottle |
| filling material: | mineral water, purified water, still water, juice |
| dimension: | 3500*2200*2250mm |
| weight: | 8000kg |
| material: | SUS304 |
| warranty: | 1 year |
Automatic Liquid Bottle Filling Machine, Water Bottle Production Line
Composition of the machine
The machine includes several sections listed bellows:
(1). Drive unit
(2). Locating bottle device
(3). Input bottle device
(4). Rinsing bottle device
(5). Rinsing-filling transferring bottle device
(6). Filling device
(7). Filling-capping transferring bottle device
(8). Capping device
(9). Unscrambling device
(10). Output bottle device
(11). Frame
(12). Electric control system
Technical parameter
| Model: | CGF40-40-12 |
| Capacity:500ml(b/h) | 16000-18000 |
| Suitable Bottle Height(mm) | 130-280 |
| Bottle material | PE, Plastic |
| Suitable Bottle Body Diameter(mm) | Φ40-φ80 |
| Suitable Cap Shape | Plastic Screw Cap |
| Filling Precision | ≤±5mm(Liquid Level) |
| Power: (KW) | 9.63 |
| Filling Temperature: | Room Temperature |
| Water Pressure of Washing Bottle(Mpa) | 0.18 |
| Water Consumption for Washing Bottle(kg/hr) | 1000 |
| Gas Source Pressure(Mpa) | Normal Pressure |
| Gas Consumption(m 3 /min) | 0.6 |
| Size L×W×H (mm) | 3500x2200x2250 |
| Total Weight:(kg) | 8000 |
| Power Supply | 380V/50HZ |

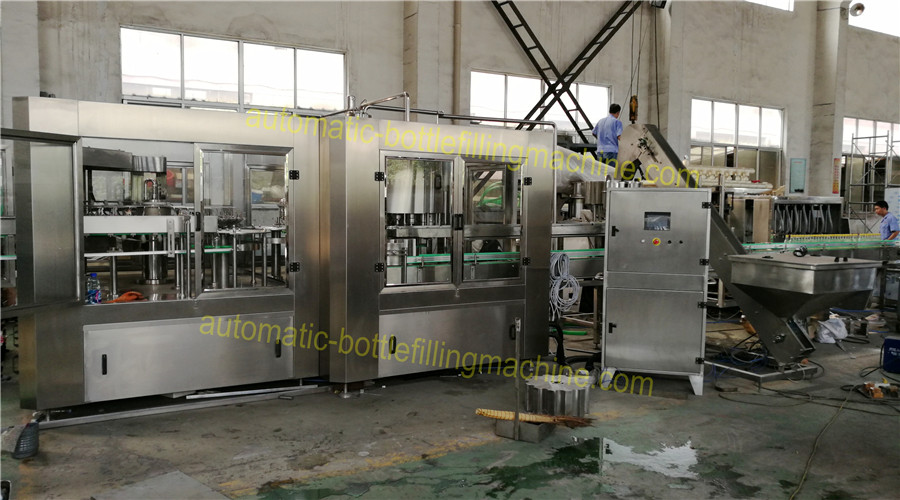

product pictures
(1) The pet bottle water filling machine pure water production line is suitable for different types of
PET bottles such as mineral water,juice drink,milk and so on .
(2) The pet bottle water filling machine pure water production line volume is 0.25L-
2L and speed is 16000-18000pcs/hour.
(3) The pet bottle water filling machine pure water production line uses SS304 and
SS316 stainless steel that accord with the CE standard and ISO9000.

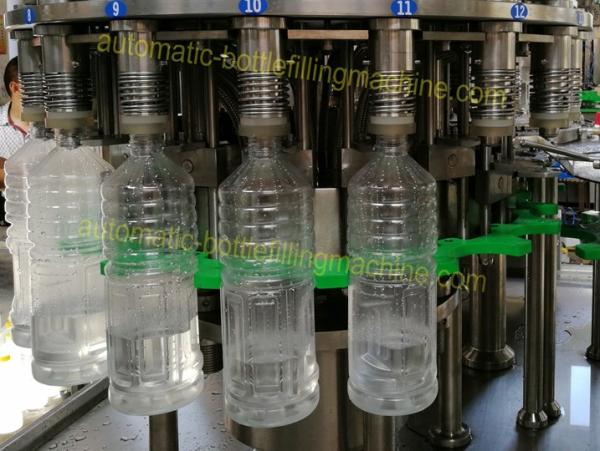

inner look

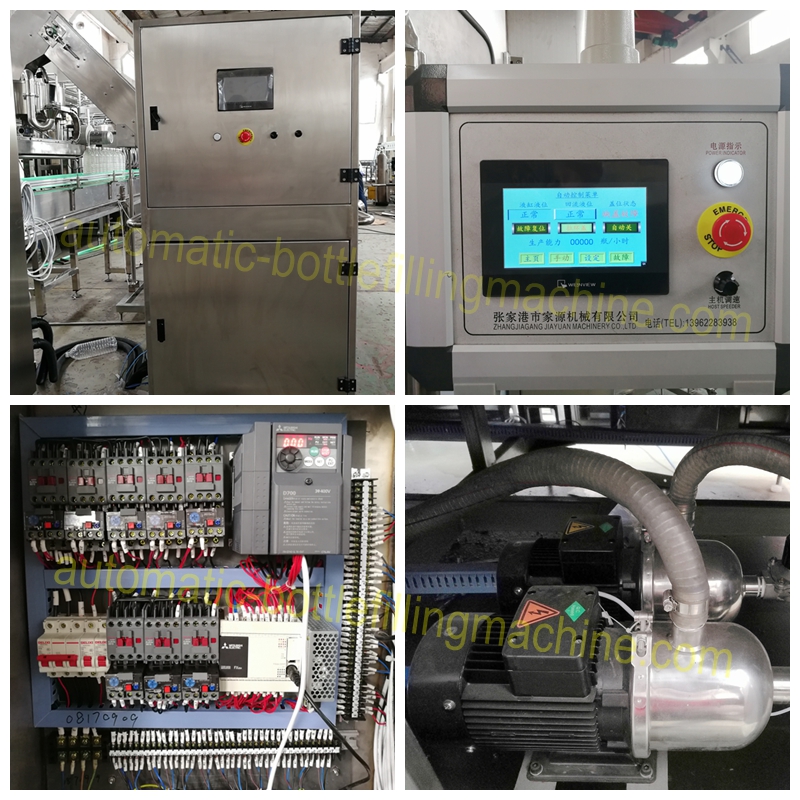

electrical system
besides this CGF40-40-12, we also have other capacity
| Model | CGF10-10-3 | CGF18-18-6 | CGF 24-24-8 | CGF 32-32-10 | CGF 40-40-12 | CGF 50-50-15 |
| Rinsing nozzles | 10 | 18 | 24 | 32 | 40 | 50 |
| Filling nozzles | 10 | 18 | 24 | 32 | 40 | 50 |
| Capping nozzles | 3 | 6 | 8 | 10 | 12 | 15 |
| Output(@500ml) | 4000BPH | 6000BPH | 8000BPH | 14000BPH | 18000BPH | 24000BPH |
| Applicable bottle size | Diameter=50~108mm, H=170~340mm, 330~2250ml | |||||
| Pressure of air source | 0.7MPa | 0.7MPa | 0.7MPa | 0.7MPa | 0.7MPa | 0.7MPa |
| Air Consumption | 0.25M3/min | 0.8 | 0.8 | 0.8 | 0.8 | 1 |
| Pressure of spraying water | 0.2-0.25MPa | |||||
| Consumption of rinsing water | 1T/H | 1.2T/H | 1.2T/H | 2T/H | 2.2T/H | 2.5T/H |
| Pressure of filling | 0.2-0.3MPa | |||||
| Power consumption | 2.5kw | 3.5kw | 4kw | 5.5kw | 6.5kw | 8kw |
| Machine body | SS304 | |||||
| Machine size(L*W*H,mm) | 2100*1800*2400 | 2300*2200*2400 | 3000*2200*2800 | 4000*2600*2800 | 4700*2900*2800 | 5100*4800*3000 |
| Machine weight(kg) | 2500 | 3000 | 4000 | 5000 | 6000 | 7500 |
| PLC | Japan Mitsubishi | |||||
Our company
Zhangjiagang JINYATE machinery Co., Ltd is a high-tech enterprise specialized in water
treatment project. Our company is located in zhangjiagang city, Jiangsu province, about 80
KM away from Shanghai Airport. Our company specializes in all kinds of water equipment,
such as Ro pure water equipment; automatic filling machine equipment, automatic vending
machines, seawater desalination equipment, household water filter and many related
equipment. Our products are sold to all over the world, for example, America, Australia,
Africa, India, Southeast Asia, Dubai, Middle East etc.
|
