ADAS Headway Monitoring Face Recognition Camera Lane Departure Warning Video Output

Categories Face Recognition Camera
Brand Name: Roadragon
Model Number: DB502
Certification: EC&FCC. ISO9000
Place of Origin: China
MOQ: 1
Price: negotiate
Payment Terms: D/A, D/P, L/C, T/T, Western Union, Western Union,paypal
Supply Ability: 2000pieces per month
Delivery Time: 1-3 days after the payment
Packaging Details: normal packing
CPU Frequency: 1.2GHz
Rated power: 3W
Operating Humidity: 0 ~ 90 RH%±5%
function1: Urban Forward Collision Warning
function2: Emergency Lockout
function3: Forward Collision Warning
function4: Headway Monitoring and Warning
Application: Car,Truck , Bus
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

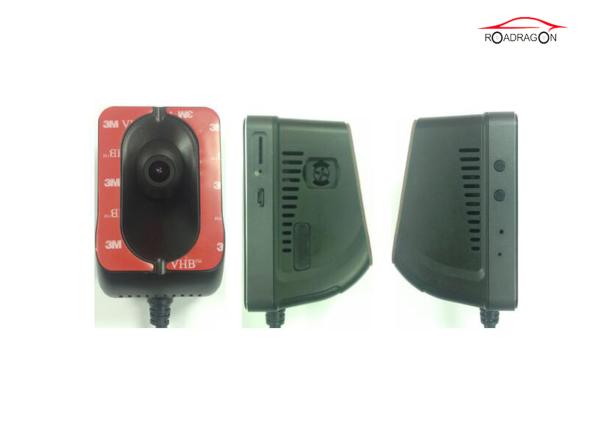

ADAS Headway Monitoring Face Recognition Camera Lane Departure Warning Video Output

ADAS Headway Monitoring and Warning Recognition Camera Lane Departure Warning


Installation


When DB-A502 is installed, the camera should be fixed onto the central location of the front windscreen, that is, a left or right position within a range of 10 cm from the central axis of the vehicle will be allowed and a position closer to the center will be more desired.


Note: the camera cannot be blocked by windscreen wipers; for a vehicle with its engine projecting from the front windscreen, the installation location should be appropriately raised in order to ensure that the camera is not blocked by the front projection.


The power line, ACC signal line, turning signal line, and brake signal line are well connected. (There is no need to connect the signal line when a variety of signal lines are acquired through communications with other devices.)


Product Introduction


Electrical Properties

Operating voltage

+9V ~ +36V

Rated power

3W

Alarm Instantaneous Power

4W

Operating Temperature Range

-20℃ ~ 75℃

Storage Temperature Range

-30℃ ~ 85℃

Operating Humidity

0 ~ 90 RH%±5%


Function Description


1. Driving Video Recording


DB-A502 can record 1080P HD videos and perform automatic cyclic recording every 3 minutes and store data into the high-speed class 10 SD card.


2. Emergency Lockout


When the vehicle encounters severe turbulence or collision during traveling,DB-A502 can immediately lock the current video and will not delete it from cyclic recording.


3. Driving Behavior Detection


The DB-A502 can detect the Rapidly Speeding-up, Hard Braking, and High-speed Turning of the vehicle through built-in sensors.


4. Video Output


DB-A502 supports video output in CVBS format, or support the PAL (default) or NTSC system for video recording by DVR.


5. Volume Adjustment


The volume can be lowered or increased by repeatedly pressing the button (-) or (+) on the side of the product, respectively; and the volume is at five levels of from 1 to 5.


6. Serial Port Communications


DB-A502 can support RS232 and can communicate with other devices to transmit vehicle information and various alarm information.


7. Signal Input and Output


DB-A502 has 3-way signal inputs which can be connected to the turn signal and brake signal.

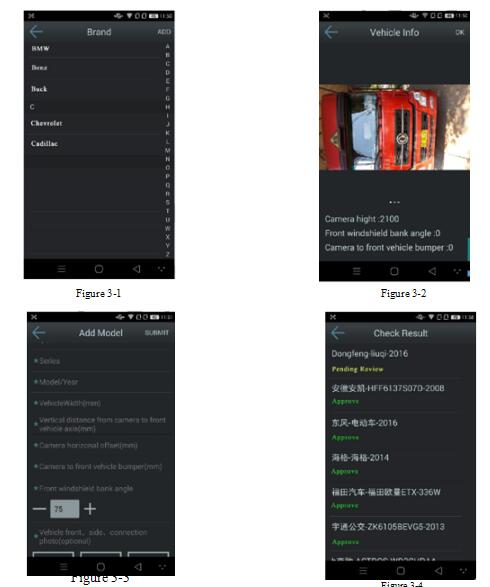

8. Mobile APP Linkage


An Android Phone may install ROADRAGON APP in “Road-Defend” and may be connected to the WiFi hotspot of the device, and the
