| Categories | Biometric Fingerprint Scanner |
|---|---|
| Brand Name: | SPEEDATA |
| Model Number: | KT80 china fingerprint scanner |
| Certification: | CE , IP65 , ISO9001, 3C |
| Place of Origin: | Beijing China |
| MOQ: | 1 piece |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 10000 pcs per month |
| Delivery Time: | 5- 8 working days |
| Packaging Details: | individual carton box per set |
| OS: | Android 5.1 |
| Screen Size: | 8 inch Tablet PC |
| CPU: | Eight-core 1.3GHz |
| Flash: | 16GB |
| RAM: | 2GB DDR |
| Battery: | 13600mAh |
| Dimension: | 270*176*20mm |
| Charging: | Micro USB + Magnetic charging |
USB Security Checking Handheld Fingerprint Scanner GSM GPRPS 4G Conneticon
Fingerprint Module Specifications | |
| 1:1 verification matching speed | < 400ms(Feature extraction and fingerprint matching) |
| 1:256 Fingerprint search time | < 2s |
| Resolutions | 500DPI |
| Image Size | 256x304 pixels |
| Security level | 5, adjustable |
| Capacity | 1776 fingerprints |
| FAR | <0.001% |
| FRR | <%1.5 |
| Supply power | 3.6V-7V |
| Working current | <80mA |
| Peak current | <100mA |
| Communication interface | TTL(RS232) |
| Communication Baud rate | 38400bps,57600bps,115200bps |
| Working temperature | -10°C~50°C |
| Working humidity | 45%RH~85%RH (no dew) |
| Module dimension | 55.0×22×24.5mm (L*W*H) |
The Specification of KT80 China Fingeprint Scanner
KT80 Rugged Tablet with Fingerprint Reader | |||||
| OS | Android 5.1 | ||||
| CORE | |||||
| Core | CPU | Eight-core 1.3GHz ARM® Cortex-A53 | |||
| WWLAN | FDD B1B3B7 TDD B38B39B40 WCDMA B1B2B5B8 EVDO BC0 GSM B2B3B5B8 | ||||
| Flash ROM | 16GB | ||||
| RAM | 2GB DDR3 | ||||
| General Configuration | |||||
| Display | 8 inch IPS 1024*768 | ||||
| touch screen | Multi-point touch capacitive screen | ||||
| GPS | Support GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS | ||||
| Bluetooth | v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE) | ||||
| WiFi | 802.11 a/b/g/n | ||||
| Protection class | IP65 | ||||
| Drop resistance level | 1.5m | ||||
| Camera | Rear camera | 13MP Camera | |||
| Front camera | 5MP Camera | ||||
| Keypad | Front /Side | 12keys | |||
| Interface | Micro-USB connector | USB2.0 OTG | |||
| SIM card slot | 2 Micro SIM slot | ||||
| TF card slot | *2 | ||||
| charging | Micro USB + Magnetic charging | ||||
| Audio Jack | *2 | ||||
| External Interface | USB HOST | *1 | |||
| RS232 | * 2 | ||||
| Battery | Type | rechargeable Li-ion battery 6800mAh*2 | |||
| Standby Time | 600hours | ||||
| Calls Time | Up to 6hours | ||||
| Charging Time | 8hours (magnetic charging) | ||||
| Physical Characteristics | Dimension | 270*176*20mm | |||
| Weight | >800g with battery (according config) | ||||
| Operating temperature | -20°C to 50°C / -4°F to 122°F | ||||
| Storage temperature | -30°C to 70°C / -22°F to 158°F | ||||
| Humidity (non-condensed) | Operating 10% to 90% / Storage 5% to 95% | ||||
| Electrostatic discharge | ± 15 kV air discharge, ± 8 kV contact discharge | ||||
| EMC regulation | CE | ||||
| OPTIONS | |||||
| Barcode scanner | option | HoneyWell 1D&2D barcode scanner | |||
| NFC | option | 13.56MHz NFC | |||
| IRIS recognition | option | The recognition distance is less than 20cm | |||
| PSAM | option | ISO7816 (SIM card interfance) | |||
| Infrared meter reading | option | IEC62056-21(IEC1107) communication protocol | |||
| Magnetic bracket | option | Apply to car or desktop fixation | |||
| Wrist strap | option | 360 degree rotation | |||
| Stylus | option | Capacitance touch pen | |||
| RFID | option 1 | LF RFID(134.2KHz, ISO11784/11785, FDX-B/HDX) | |||
| option 2 | LF RFID(125KHz) | ||||
| option 3 | HF RFID(13.56MHz ISO 14443A/B ISO 15693) | ||||
| option 4 | UHF RFID 860-960MHz ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with R2000 shipset, Long distance reader. | ||||
| Smart card reader | option | contact SMART card ISO7816 compliant | |||
| Fingerprint | Yes | crossmatch TCS1(With FBI, FIPS-201 ,ISO19794,ANSI,WSQ) | |||
| option2 | Other custom fingerprint modules | ||||
| MRZ | |||||
| Other customers custom module. | |||||
Shipping
| Delivery time : Samples 5-8 working days after order confirmation. Bulk order depend on the Quantity |

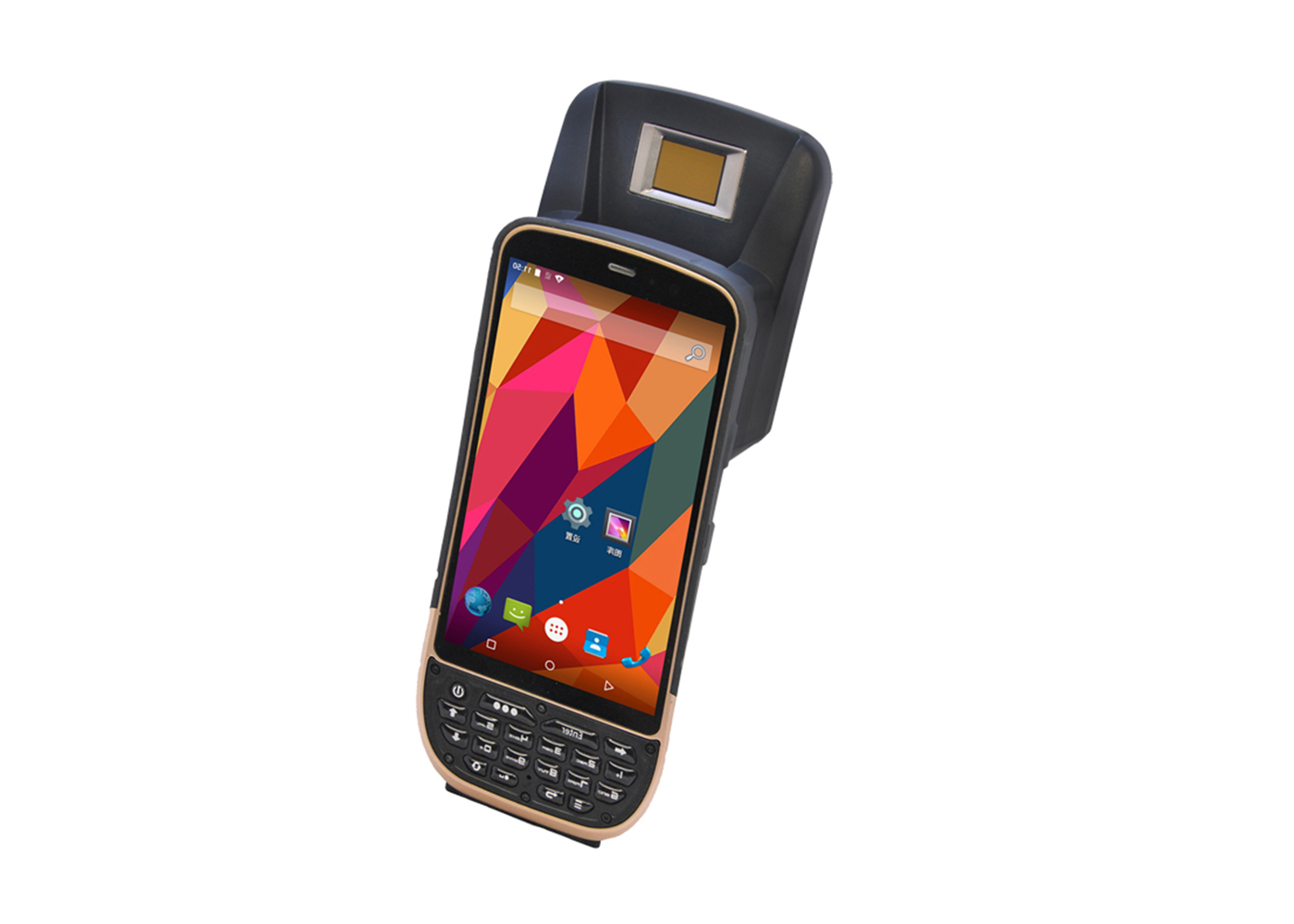

Relative Product KT50 Handheld Fingerprint Reader
Why choose us
1. Experienced
More than 9 years experience in Hardware IOT Platform !
R&D and oversea sales, we know how to be your good manufacturer and business partner!!!
2. High Quality Products
4. Satisfied Service
Before-Sale Service: quick response within ONE working day; patient communication
On-Sale Service: delivery on time; quality and quantity assured
After-Sale Service: One year warranty period; technology support during your project.
Free SDK fro secondary development
|
