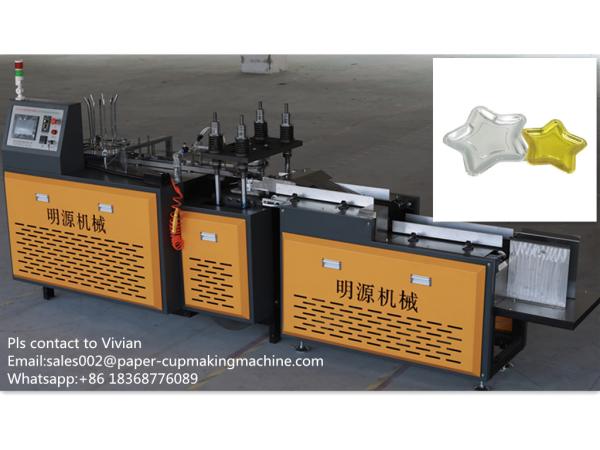

Single Station Paper Plate Machine
Quick Details
Paper Plate Size range: 3-11 inch (mould exchangable)
Productivity: 50-60 Pcs/min
Warranty: 1 year
Usage: Round Plate or other plate( other shape plate )
after-sales service: Engineers available to service machinery
overseas
It has the functions of full automatic pneumatic paper feeding, up
and down mould heating forming, automatic output, constant
temperature control, automatic counting and so on.Compared with the
traditional paper platen machine, the new paper platen machine
adopts the principle of mechanical CAM, which has the advantages of
higher production speed, no air compressor support, more stable
operation, less waste rate of paper and more humanized structure
design.
Widely used in the production of paper or aluminum foil for the
production of plates.By replacing the mold, we can produce round or
square plates and plates of different specifications and shapes.
Technical Specification: | ||
| Model | ZDJ-1000 paper plate machine | |
| Paper Plate Size | 2-10 inch (mold exchangeable) | |
| Raw Material | Paper, Aluminum foil coated paper, One side PE coated paper or other; | |
| Suitable Paper Weight | 180-500g/m2 Paper/paperboard, aluminum foil coated paper, one side PE coated paper or other | |
| Rated Productivity | 50-60 piece/minute (one working station) | |
| Power Source | 220V/380V 50Hz or other required | |
| Total Power | 3 KW | |
| Total Weight | 400KG | |
| Package Size(L x W x H) | 3500*1200*1300 mm | |
| Working Air Source | Working pressure 0.8Mpa, Air out-put 1.5 m3/minute (No need to buy Air comprssor); | |
| Pressurizing Air Cylinder Technical Specification | Air flow vlume | 0.8 cubic/min |
| Air pressure | 0.6-0.8Mpa | |
| Air cylinder stroke | 150mm | |
After service
1 Spare parts guarantee for one year.
2.We will provide the operation CD and manual, we also supply the 24 hours online service.
3.We offer the most professional suggestion to help you start expand your business.
Advantage:
1. Quenching treatment for all the machinery,so its hardness is much more better than others by 20%.
2. Divided box: 125’ type, it has the long life than 100’
3. Base board is nearly double than others,guarantee the machinery working stable ,longer using.
4. Our equipment of the heating use aluminum,it has better thermal conductivity.
5. Double Belt and Three Tier Chain make machine running stable, long strong use life.
Advantage
| Mold Installment | The machine is with two free molds installed |
| Paper Clamping Manipulator | The paper plate machine is using the automatic paper clamping manipulater system, which save a lot of time and labor costs |
| Free Spare Parts | one year guarantee,will give spare parts with machine while packing (enough for 2 years using) with one year,all parts given for free, after that we need charges and delivery cost |
|
