Hotel laundry machine 100kg Fully automatic laundry machine Stainless steel Computer frequency conversion

Categories Hotel laundry equipment
Brand Name: TONGYANG
Model Number: XTQ-100
Certification: CE ISO9001
Place of Origin: JIANGSU TAIZHOU
MOQ: 1
Price: USD 11000
Payment Terms: T/T
Supply Ability: 1000
Packaging Details: plywood
Material: stainless steel
Operation: computer frequency conversion
Capacity: 100kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Hotel laundry machine 100kg Fully automatic laundry machine Stainless steel Computer frequency conversion

Hotel laundry machine 100kg Fully automatic laundry machine,

Model NO.: XTQ Series

Automatic Grade: Automatic

Roller Fixing Type: Submerged Floating

Fuel: Steam or Electrical Heating

Capacity: From 15kg to 100kg

Certificates: ISO CE

Transport Package: With Wooden Box

Origin: China

Washing Capacity: From 15kg to 100kg

Type: Vertical

Brand: Tongyang

Material: All Stainless Steel 202 or 304 or 316 Grade

Automation Degree: Automatic-Fully Washing Machine

Trademark: Tongyang

Specification: CE, ISO9001

HS Code: 8451400000

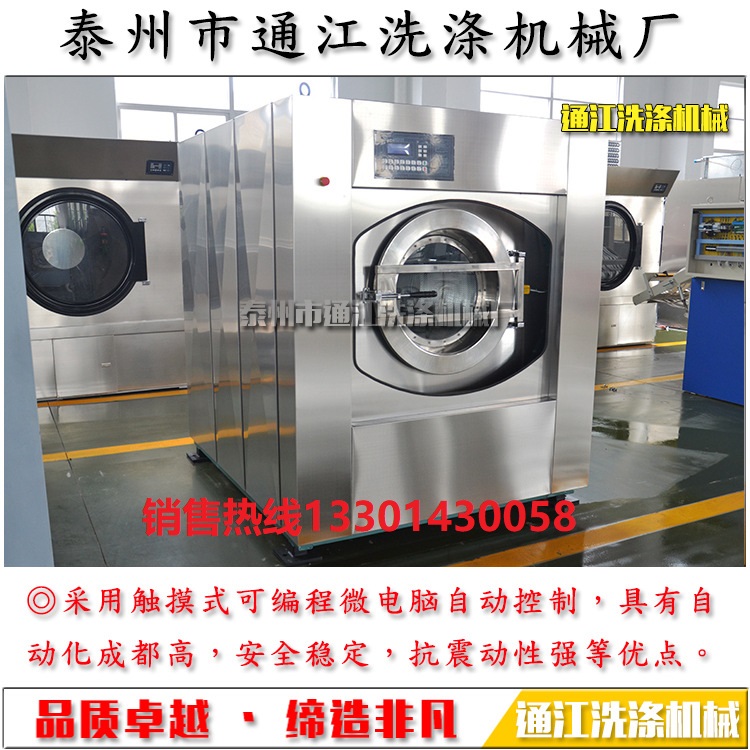

XTQ series automatic-fully washer extractor:

1. Automatic-fully washing and extracting machine, drum and body all made of 304 stainless steel, easy to operate and it gathers the washing and extracting these two functions together.

2. Steam or electrical heating.

3. Its capacity is from 15kg to 100kg.

4. Adopt touch-type programmable computer control system, it is highly automatic, safe, stability and proof-shock.

5. Adopt the international latest complete suspension structure to reduce shock, replace the original shock design by liquid pressure buffer with springs, it can ensure an ideal proof-shock effect even on higher floors.

6. It is with a drum without compartment and single door structure convenient to loading or unloading, and reduces the labor intensity and improves the clean level.

7. With fully-closed and rear-drainage structure, it is good for environmental protection, the drum and case are both made of high quality stainless steel with the advantages of stain resistance and durability.

8. The new micro-computer control washer-extractors offer our customers with easy programming, and tremendous energy savings compared. Owners will be impressed with the water savings they achieve and the benefits to their operation. The easy-to-use controls and flexibility of the pre-programmed cycles will be a hit with customers. They can add an extra wash, rinse or choose both to create a personalized wash cycle based on their individual needs. Customers will appreciate the large LED display that leads the user through the washing process.

9. The automatic-fully washer extractor are usually used for hotel, restaurant, school, hospital, counterpane factory and laundry house, etc.

10. With CE and ISO9001 certificates.

ModelXTQ-15HXTQ-20HXTQ-30HXTQ-50HXTQ-70HXTQ-100H
Rated capacity (kg)10-15kg15-20kg20-30kg35-50kg50-70kg70-100kg
Motor power (kw)2.2kw2.2kw4.0kw5.5kw7.5kw7.5kw
Electrical power(kw)12kw15kw24kw36kw----
Roller dimension (mm)650mm673mm902mm1060mm1200mm1200mm
Roller deep (mm)450mm550mm500mm605mm626mm815mm
Roller volume149Lit195Lit320Lit504Lit708Lit920Lit
Average speed (r/min)90r/min90r/min72r/min75r/min70r/min65r/min
Washing speed (r/min)50r/min45r/min36r/min35r/min33r/min31r/min
Middle dewater speed (r/min)450r/min400r/min420r/min380r/min350r/min310r/min
High dewater speed
(r/min)
890r/min820r/min780r/min760r/min680r/min680r/min
Steam pipe3/4"3/4''1"1"1"1"
Cold water pipe3/4"3/4''3/2"3/2"3/2"3/2"
Hot water pipe3/4"3/4''3/2"3/2"3/2"3/2"
Drain valveφ70mmφ70mmφ140mmφ140mmφ140mmφ140mm
Power supplyStandard :380+N-3PH-50HZ
Overall size
(length*width*height) mm
1010*1110
*1510
1100*1020
*1500
1410*1430
*1760
1650*1750
*1900
1850*1800
*2300
1850*2000
*2300
Weight (kg)950kg980kg1900kg2600kg2800kg3130kg
