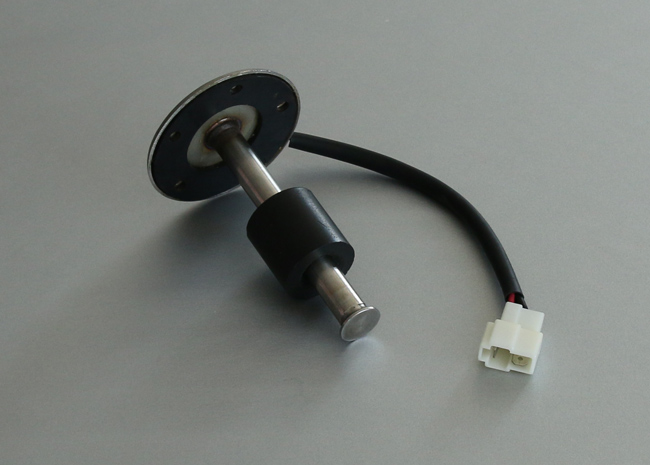

Resistance Output Type Vehicle Fuel Level Sensor 100mm Length 0 ~ 190 Ohms

Fuel Tank Level Sensor / Fuel Tank Level Sender 100mm, 0~190 ohms

Product Description

• Material: SUS316 or SUS304 stainless steel
• Length range: 100 to1,000mm for standard (can be customized)
• Assembly: BSP1 1/4-inch thread twist-in, or NPT thread twist-in
• Various types of flanges are available for fitting fuel tank if necessary
• Mounting: 38 x 2.6mm O-ring/43 x 3.5mm O-ring

• Connector: Brand Delphi,Tyco or others is available according to customer’s Requirement
• Supply voltages: 10 to 32V
• Rated current for alarm switch: 500mA
• Output signal:
♦ Resistance range: 0 to 190Ω
♦Current range: 0 to 20mA or 4 to 20mA
♦Voltage range: 0.5 to 4.5V or 0 to 5V (can be customized)
• Resolution range: 10 to 40mm
• Operating temperatures: - 40 to 85°C
• Protection rank: IP67
• Option: high/low alarm

Features:

- Material: Metal+Rubber
- Item Type: Fuel Tank
- Output Type: Resistance
- Color: Silver
- Protection Rank: IP67
- Resolution Range: 10-40mm
- Operational Temperature: -40°F ~ +185°F (-40℃ ~ +85℃)
- Mounting Methods: Standard SAE 5 hole pattern
- Suitable for truck, generators/gen set, bus and marine field
- Widely used in fuel, water, kerosene and chemical tanks
- Reed switch, steady output signal
- Simple and strong structure , Advanced corrosion resistance
- Long using life, anti-vibration,anti-explosion
- High quality fuel level sensor
- Economical level sensing solution, long service lifespan

Our Service

1. Our quotation is always valid for you if there is no world market unrest.
2. Receiving your new inquiry, the details of products & the best price will be provided you asap.
3. 7 days replacement and 12 months repair free of charge for quality problem.
4. Port: Shanghai.
5. Payment: T/T.
6. OEM available
7. Delivery time is 7-10 working days.
8. All goods will be fully checked by our QC.
9. Package: The goods will be put into the packing box with instructions and certificate of quality first. Then we pack them into the box with polystyrene foam avoiding the damage to the products.
10. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder.
