| Categories | Refractory Mixer Machine |
|---|---|
| Brand Name: | PERMIX |
| Model Number: | PMC100 |
| Certification: | CE |
| Place of Origin: | JIAOZHOU CHINA |
| MOQ: | 1 unit |
| Supply Ability: | 5-10 units per month |
| Packaging Details: | Export Standard Package |
| Price: | Negotiation |
| Delivery Time: | 5-8 days |
| Material: | Steel |
| Mixing Power: | 30kw |
| Input weight: | 180kgs |
| Blade QTY: | 1*3 |
| Color: | Orange/White/Red |
| Output capacity: | 750L |

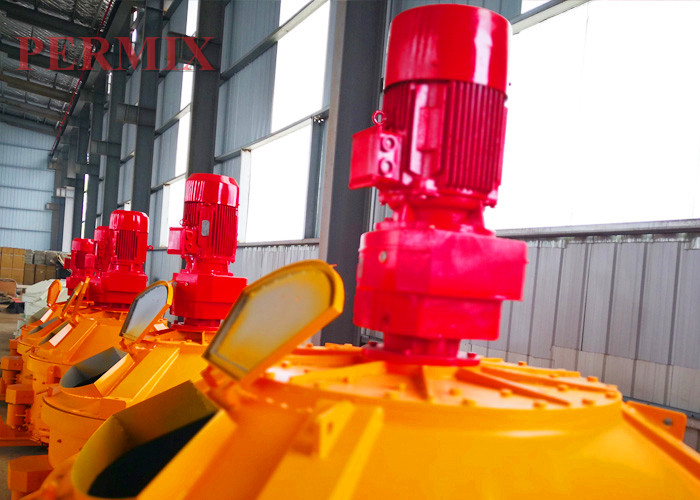

No Hidden Corners Refractory Mixer Machine Low Noise PMC100
Performance Characteristics:
1) Low Energy Consumption, 30% to 50% reduced comparing same capacity mixers!
2) High Homogenization up to 97-99%!
3) Short Mixing Time as 1-3min!
4) Simple Structure, Simple and Convenient Maintenance
5) Flexible Layout, 1-3 unloading doors are optional for different production lines.
6) Compact Structure and Small Space required
Discharging Door
The limited switch installed, can be convenient to set the size of the door according to the need. At most three discharge doors can be opened.
According to the material situation, different device can be selected to make the stirring speed faster, and the stirring is more uniform, without the phenomenon of stacking.
Protection Against Wear
The materials and coatings used to manufacture those components that come into contact with abrasive substances are specially selected for each individual application.
(1) wear - resistant alloy plates.
(2) surfacing materials.
(3) highchrome alloy.
(4) stainless steel materials.
(5) ceramic materials
(6) polyurethane material.
(7) high wear resistant rubber and cast stone materials.
Temperature and moisture sensor
To ensure concrete and prefabricated parts quality, sensors of temperature and moisture made in Bikotronic of German can be selected
Hydraulic Coupling
High Pressure Washing System
| Technical Data | ||||||||||||||
| PMC50 | PMC 100 | PMC 150 | PMC 250 | PMC 330 | PMC 500 | PMC 750 | PMC 1000 | PMC 1500 | PMC 2000 | PMC 2500 | PMC 3000 | PMC 4000 | PMC 4500 | |
| Output capacity(L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 |
| Input capacity(L) | 75 | 225 | 375 | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 | 6000 | 6750 | |
| Input capacity(kg) | 120 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 | 9600 | 10800 | |
| Diameter of Mixing Tank(mm) | 1300 | 1540 | 1900 | 2192 | 2496 | 2796 | 3100 | 3400 | 3400 | |||||
| Mixing Power kw | 3 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 55 | 75 | 90 | 110 | 160 | 200 |
| Blade QTY | 1/2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 3*2 | 3/6 | 3/9 | 3/9 | 3/9 |
| Side Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bottom Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight(kg) | 700 | 1000 | 1200 | 1700 | 2000 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 | 16000 | 18000 | |
|
