| Categories | Electronic Universal Testing Machine |
|---|---|
| Brand Name: | wangtebei |
| Model Number: | WDW |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | negotiation |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per month |
| Delivery Time: | 15 working days |
| Packaging Details: | export package |
| Product Name: | Universal Testing Machine / Lab Equipment Tensile Universal Testing Machine |
| Standards: | GB/T1040\1041\9341\8804\9647\17200, GB/6491, ISO7500-1, ISO5893, ASTMD638\695\790 |
| Force-measuring Accuracy: | ≤1% (special order≤0.5%) |
| Deformation-measuring Range: | 2%~100%FS |
| Deformation-measuring Accuracy: | 1% (special order 0.5%) |
| Resolution: | 1/300,000 |
Lab Universal Testing Machine , Compressive Strength Testing Machine
1. introduction
The lab universal testing machine, compressive strength testing machine is applicable to make test of tensile, compression, bending, shear, peeling, shear, load keeping, cyclic, etc.
2. features
mechanical structure: driving system adopts AC servo motor and synchronous belt. Main loading frames adopts two column door type structure, very stable during loading.

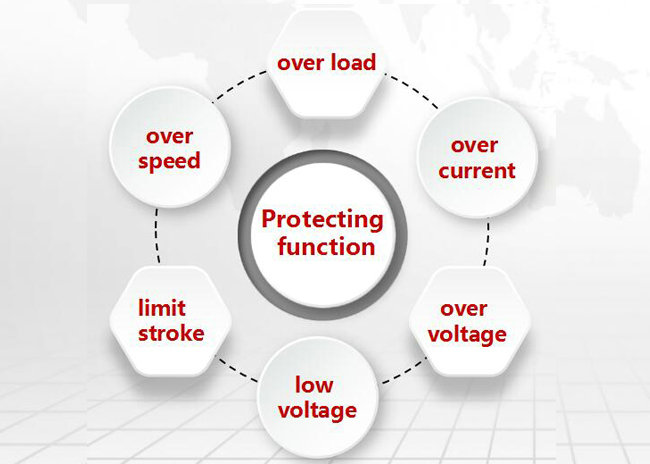

Mutiple protecting function: over load, over current, over voltage, crosshead limit moving space protection, auto stop at break.

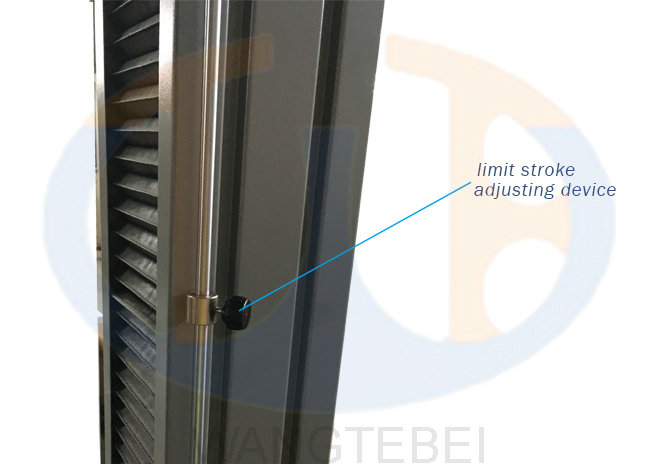

Stroke limitation of crossbeam: freely adjusted upper limit and lower limit of crossbeam moving.

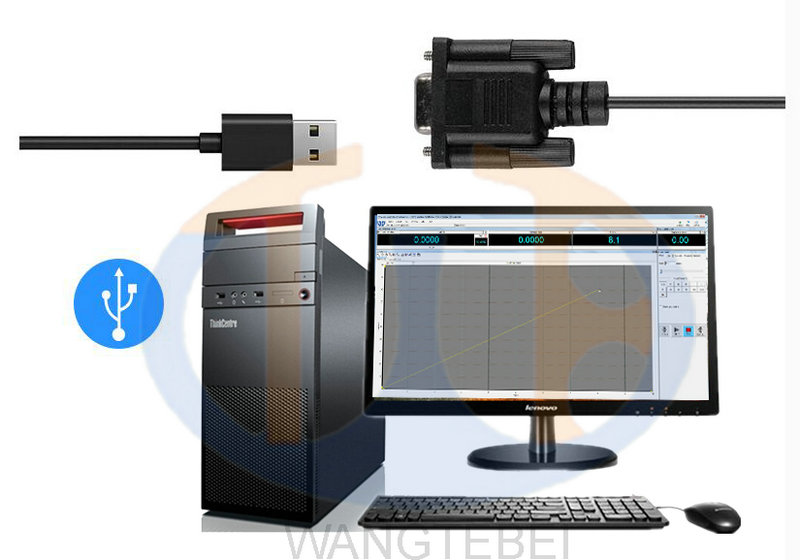

USB connection:more convenient to connect to the computer. Communications adopts USD or seriel port, very stable and reliable during data transmission, and high anti-interference capacity.
3. specification
| Model | WTD-5/10/20/50 | WTD-100 | WTD-200/300 | WTD-500/600 |
| Max. capacity(kN) | 5/10/20/50 | 100 | 200/300 | 500/600 |
| Measuring range | 1%~100%FS(0.4%-100%FS) | |||
| Grade | Grade 1(Grade 0.5) | |||
| Force resolution | 1/400000 | |||
| Deformation measuring range | 2%~100%FS | |||
| Relative error of deformation value | +/-1%(+/-0.5% | |||
| Deformation resolution | 1/4000000 | |||
| Force speed | 0.01-50 kN/s | |||
| Deformation speed | 0.01-30mm/min | |||
| Displacement speed | 0.01-500mm/min (can be 1000mm/min) | 0.01-300mm/min | 0.01-250mm/min | |

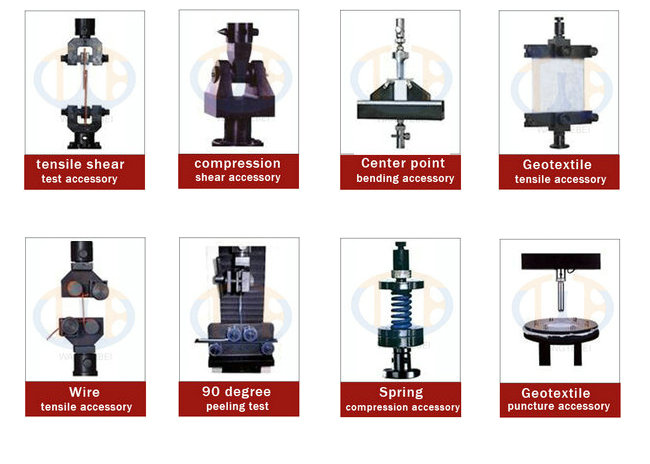

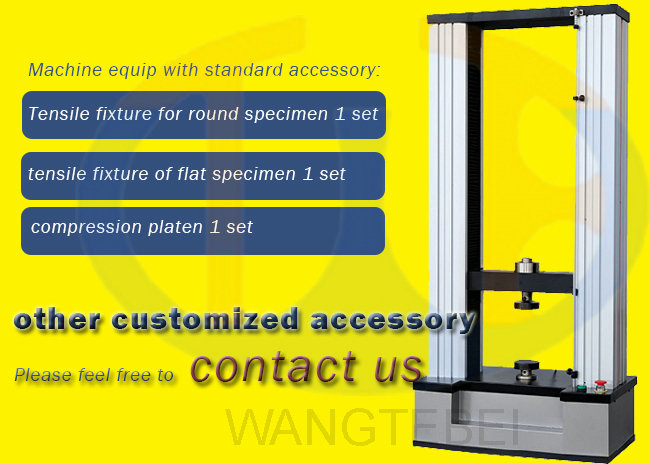

| Tensile fixture for round and flat specimen | Standard one set tensile fixture for round specimen, one set tensile fixture for round specimen, one set of compression platen, other test fixture can be equipped according to client’s requirement or relative test method | |||
| Extensometer | According to test materials or client’s requirement | |||
| High and low temperature test | According to relative test method or client’s requirement | |||
| Max. stroke of crossbeam | 1090mm | 1070mm | 1140mm | 1200mm |
| Effective tensile space (equip with metal tensile fixture) | 800mm | 700mm | 600mm | 600mm |
| Distance between columns | 430mm | 550mm | 600mm | 625mm |
| Power | 220V,1.0kw | 220V,2kw | 220V,3kw | 380V,4kw |
| Dim. Of loading frame(cm) | 79x43x186 | 92x50x198 | 110x60x241 | 130x87x250 |
| Weight | 400kg | 700kg | 1150/1250kg | 2500kg |
|
