| Categories | SMPS Flyback Transformer |
|---|---|
| Brand Name: | Shareway |
| Model Number: | C1154-BL_ |
| Certification: | CE UL RoHS ISO9001:2008 |
| Place of Origin: | Guangdong China |
| MOQ: | 100/500/1000 |
| Price: | Supportive |
| Payment Terms: | TT,Paypal |
| Supply Ability: | 3000K.PCS/Month |
| Delivery Time: | Stock or 3 weeks |
| Packaging Details: | 175pcs/Reel |
| Product name: | SMPS Flyback Transformer C1154-BL_ For PoE Interface/PWM Controller |
| Application: | PoE Interface/PWM Controller |
| Type: | SMPS Flyback Transformer |
| Size: | 17.2*21.97*8.64mm |
| Weight: | 4.9 g |
| Ambient temperature: | –40°C to +125°C |
| Company Info. |
| SHAREWAY TECHNOLOGY CO., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |
SMPS Flyback Transformer C1154-BL_ For PoE Interface/PWM Controller
Description:
• Flyback Transformer For Maxim MAX5941A PoE Interf ace/PWM Controller
• Dual-output continuous-current flyback transformer
• Operates with 18 – 72 Volts input
• 1500 Vrms, one minute isolation between the primary and the
secondary
Core material Ferrite
Terminations RoHS tin-silver (96.5/3.5) over tin over nickel over phos
bronze. Other terminations available at additional cost.
Weight 4.9 g
Ambient temperature –40°C to +125°C
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Part number | Inductance at 0 A ±10% (μH) | Inductance at Ipk min (μH) | DCR max (Ohms) | Leakage inductance max (μH) | Turns ratio | Ipk (A) | ||||
| N1 | N2 | N3 | N4 | N5 | N1 : N2 : N3 : N4 : N5 | |||||
| C1154-BL_ | 255.0 | 229.5 | 0.335 | 0.020 | 0.017 | 0.200 | 0.745 | 5.0 | 1 : 0.1 : 0.075 : 0.125 : 0.425 | 0.25 |
SMPS Flyback Transformer C1154-BL_ For PoE Interface/PWM Controller

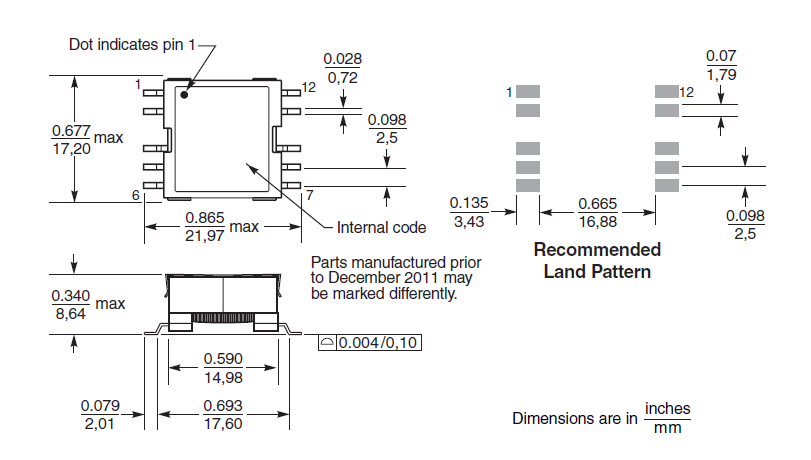

Shape and Dimensions:
Product picture:
|
