| Categories | 3nh Colorimeter |
|---|---|
| Brand Name: | 3nh |
| Model Number: | NR10QC |
| Certification: | CE,RoHs,ISO,etc |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1pc |
| Payment Terms: | T/T,Paypal |
| Supply Ability: | 1000pcs/month |
| Delivery Time: | 2 works days |
| Packaging Details: | Standard Export Package |
| Model: | SCI |
| Color: | White |
| Measuring Aperture: | 4mm |
| Color Space: | CIE L*a*b*c*h,CIEL*a*b, CIEXYZ |
| Delta e: | <0.03 |
| Calibration: | Manual |
| Locating: | Cross-Locating Illumination Locating |
Brief Introduction:

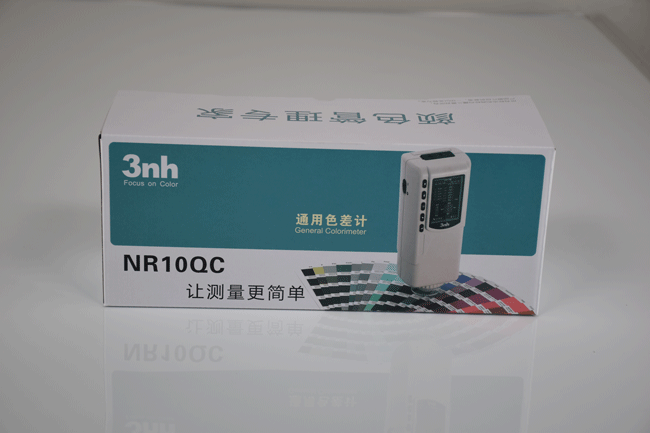

NR10QC is the cheapest 3nh precise colorimeter which is mainly used as a teaching tool for school study. It did not with white calibration board for data adjust. But NR10QC with all of the function for color measuring machine, it is useful for laboratory and school teaching.
Specifications:
| 3nh | NR10qc |
| Illuminating/Viewing Geometry | d/8 |
| Measuring Aperture | Φ4mm |
| Measurement End-face | Large stable end face and small concave-convex end face |
| Detector | Silicon photoelectric diode |
| Locating | Illuminating Locating/Cross Locating |
| Color Space | CIEL*a*b*C*h* CIEL*a*b* CIEXYZ |
| Color Difference Formula | △E*ab △L*a*b* △E*C*h* |
| Light Source | D65 |
| Light Source Device | LED blue light excitation |
| Errors Between Each Equipment | ≤0.80ΔE*ab |
| Storage | 100pcs standards |
| Repeatability | Standard deviation within ΔE*ab 0.03 |
| Weight | 500g |
| Dimension | 205×67×80 mm |
| Power source | Rechargeable lithium-ion battery 3.7V@3200mAh |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Charging Time | The charging time is 8 hours--100% electricity |
| PC Software | / |
| Printer (optional) | / |
Company Details:
Shenzhen 3nh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.After years of intensice research, 3nh has launched NS series spectrophotometer and NH, NR series colorimeter, ISO12233 resolution test chart, optical image test solution and specific standard illuminant which arewidely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world.
|
