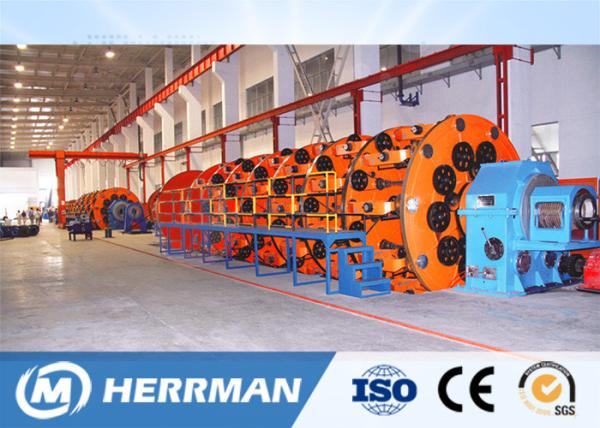

High Speed Cage Type Cable Stranding Machine For Overhead Conductor And Steel Wire

High Speed Cage Type Stranding Machine for Overhead Conductor and Steel Wire

Application

For the production of Overhead Conductor, Steel Wire, OPGW cables, armouring, laying up of insulated cables, cabling of control cables, overhead strands and submarine cables.

Specification:

with 100% back-twist

with variable back-twist

Number of bobbins per stranding cage from 6 to 36, max. 96 for armouring

Stranding bobbin dimensions from 400 to 800 mm flange diameter for standard machines.

Machine bearing system: Under roller type with the stranding cage supported on under roller bearings.

Individual assembly drives using controlled AC or DC technology

Tension control for each and every bobbin with individual load cells and controlled bobbin drive or bobbin brake control systems

Programmable control and operation via touch screen facilitating fully automatic process control

Main Technical Data

Machine Drawing

Anhui Herrman Machinery Co Ltd was found in 2010. It is 100% Private Owned by Anhui Herrman Group which was established in 1994. Our Target Goal is to serve customer with EPC business on Cable Production Projects. We have perfect Team on Engineering Design, OEM Production and High Quality Contractor. We have very good experience on supplying all kinds of cable making machineries which are related

to Power cable, control cable, insulated wires & Optical Fiber cable with Turn Key projects as well.

We have good reputations in 36 countries such as USA, Turkey, Czech Republic, Korea & India, Egypt, etc. . We supply not only High Quality machinery, but also good maintenance service to supply spare parts and engineering service. To achieve good satisfaction, you are mostly welcome to visit our factory and interview good machines which are running in China & other countries.
