| Categories | Rigid Flex PCB |
|---|---|
| Brand Name: | PY |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Negotiation |
| Delivery Time: | 3-10 days |
| Packaging Details: | Wooden box |

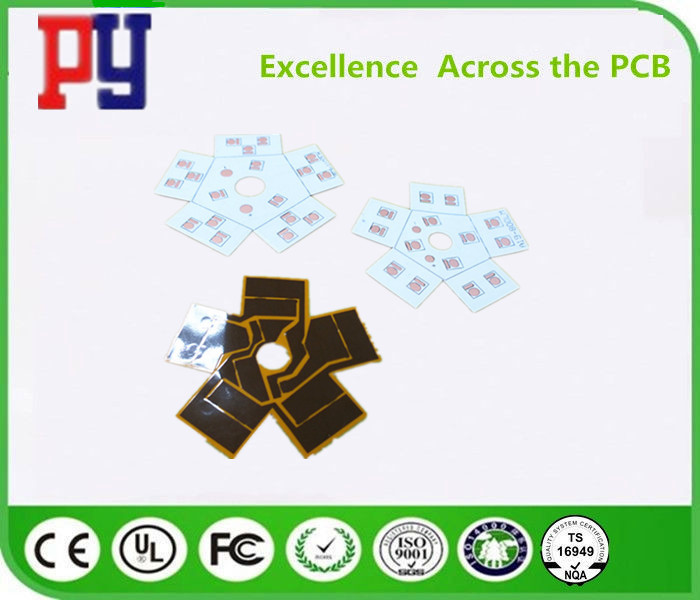

| Product Name: | FPC |
| Place Of Origin:: | China |
| Outer:: | Carton Box |
| Packaging Details:: | Inner: Vacuum-packed |
| Special Process: | OSP |
| Thickness range: | 0.15mm |
| Features: | Gerber/PCB File Needed |
| Certification: | ISO CE |
| Model Number: | Customizable |
| Payment Terms: | L/C, T/T, PAYPAL |
| Supply Ability: | 1000pcs/month |
| Quality: | 100% test |
| Warranty: | 1 year |
| Company Info. |
| Ping You Industrial Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
PCB And PCB Assembly For One-stop Service with Original Components According the BOM.
IC Imported from Digikey / Farnell etc.• On time delivery.
• Customer-focused.
• Weekly status reports (WIP).
Value
• Consistent high quality.
• Very competitive pricing.
• No surprises.
Our goal is long term relationships developed through customer
service excellence and our commitment to consistent delivery of
high quality, competitively priced products. We recognize that our
most valuable asset is our customer—we work for you.
Please feel free to send RFQ’s to gauge our competitiveness without
obligation. We welcome the opportunity to be of service.
Our Customers tell us that they buy from us because we are RELIABLE
. . . that they can count on us to do what we say we will do. It's
as simple as that!
Description
1. Professional manufacturer of PCB and PCB assembly specialized in
single-sided PCB, double-sided PCB, multilayer PCB, PCB layout and
design and PCB assembly
2. Material Type: FR4,non-halogen material ,Aluminium Base,Cooper
Base,high frequency material ,Thick copper foil,94-V0(HB),PI
Material,HIGH TG:SL S1000-2,ITEQ:IT180
3. Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion
silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion
silver,Immersion Tin)+Gold Finger
Application
Products are applied to a wide range of High-tech industries such
as: LED, telecommunication, computer application, lighting, game
machine, industrial control, power, automobile and high-end
consumer electronics, ect. By unremitting work and effort to the
marketing, products exports to American, Canada, Europe counties,
Africa and other Asia-pacific countries
Capability
| High precision prototype | PCB bulk production | ||
| Max Layers | 1-28 layers | 1-14 layers | |
| MIN Line width(mil) | 3mil | 4mil | |
| MIN Line space(mil) | 3mil | 4mil | |
| Min via (mechanical drilling) | Board thickness≤1.2mm | 0.15mm | 0.2mm |
| Board thickness≤2.5mm | 0.2mm | 0.3mm | |
| Board thickness＞2.5mm | Aspect Ration≤13:1 | Aspect Ration≤13:1 | |
| Aspect Ration | Aspect Ration≤13:1 | Aspect Ration≤13:1 | |
| Board thickness | MAX | 8mm | 7mm |
| MIN | 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm | 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm | |
| MAX Board size | 610*1200mm | 610*1200mm | |
| Max copper thickness | 0.5-6oz | 0.5-6oz | |
| Immersion Gold/ Gold Plated Thickness | Immersion Gold:Au,1—8u” Gold finger:Au,1—150u” Gold Plated:Au,1—150u” Nickel Plated :50—500u” | ||
| Hole copper thick | 25um 1mil | 25um 1mil | |
| Tolerance | Board thickness | Board thickness≤1.0mm:+/-0.1mm 1.0mm<Board thickness≤2.0mm:+/-10% Board thickness>2.0mm:+/-8% | Board thickness≤1.0mm:+/-0.1mm 1.0mm<Board thickness≤2.0mm:+/-10% Board thickness>2.0mm:+/-8% |
| Outline Tolerance | ≤100mm:+/-0.1mm 100< ≤300mm:+/-0.15mm >300mm:+/-0.2mm | ≤100mm:+/-0.13mm 100< ≤300mm:+/-0.15mm >300mm:+/-0.2mm | |
| Impedance | ±10% | ±10% | |
| MIN Solder mask bridge | 0.08mm | 0.10mm | |
| Plugging Vias capability | 0.25mm--0.60mm | 0.70mm--1.00mm | |
Advantages
1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 48hours.
5. Certificates (ISO/UL E354810/RoHS)
6. 9 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical
Inspection), QA/QC, flying porbe ,Etesting, etc
|
