Multilayer FR4 HDI Printed Circuit Boards 2oz HASL LF Surface Treatment

Multilayer FR4 HDI Printed Circuit Boards 2oz HASL LF Surface Treatment

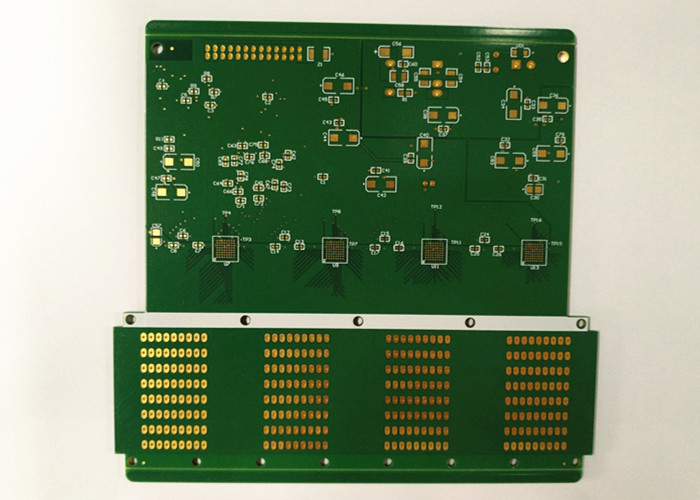

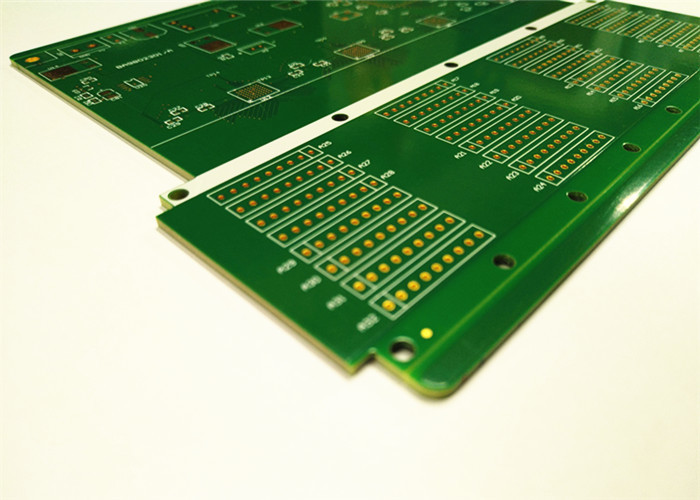

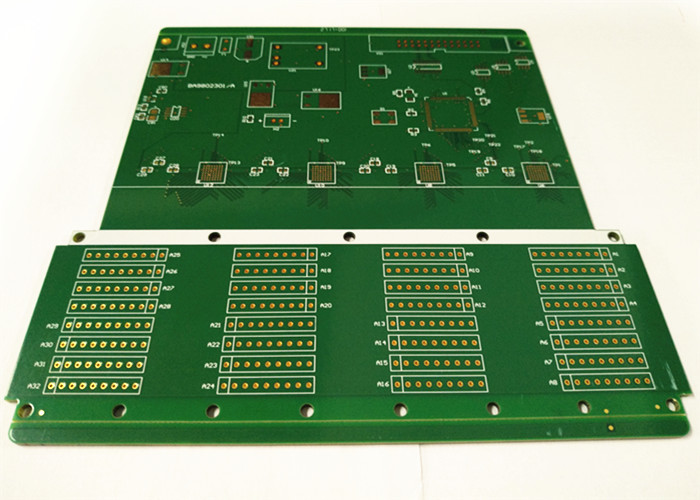

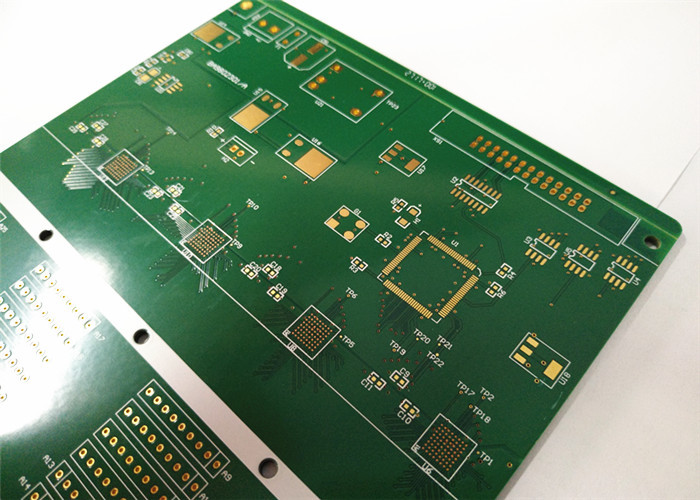

1. Pictures

2. Features of HDI PCB

1. One Stop OEM Service: Made in Shenzhen of China

2. Manufactured by Gerber File and Bom LIst Offered by Customers

3. SMT, DIP Technology Support

4. FR4 Material Meet 94v0 Standard

5. UL,CE,ROHS Compliant

6. Standard Lead Time: 4-5days for 2L;5-7 for 4L. Expedited Service is available

3. Detailed Specifications

1. Material: FR4

2. Finish Board Thickness:1.6MM

3. Finsh Copper Thickness: 1OZ

4. Layer : 10

5. Solder Mask Color: GREEN

6. Silkscreen: WHITE

7. Surface Treatment: HASL

8: Finished Size CUSTOMIZED

In the year of 2024, SHENZHEN KAIZUO ELECTRONIC TECHNOLOGY CO., LTD (KAZ CIRCUIT) has joined Kingsum group (www.kingsumpcba.com), to seek for a larger market share from PCB manufacturing, component sourcing, pcb assembly, and box build assembly with better price and lead time.

Founded in 2007, KaiZuo Electronic (hereinafter referred to as KAZ) is a professional & high quality provider of Electronic Manufacturer Service (EMS) from China. With about 300 experienced employees, KAZ can provide customers with one stop services including PCB manufacturing, Components Sourcing, PCB Assembly, Cable Assembly, Box Building, IC Programming, Functional and Aging Testing. Certified with ISO9001, UL, RoHS, TS16949.

Equipped with 5 high-speed SMT, automatic printing machine (DSP1008), MIRAE MX200/MIRAE MX400 high-speed production line, YAMAHA equipment (YS24/YG12F...), reflow soldering (NS-1000), AOI testing equipment (JTA-320-M), X-Ray inspection equipment (Nikon AX7200), 2 DIP production lines and Nitto wave soldering.

After focusing on the electronic manufacturer services for 13+ years, KAZ has established long-term cooperated & satisfied customers all over the world. Mainly from North America, European, Asia and Australia. Application fields including industrial control, IT/Networking, IoT, security, automotive, power electronics, consumer electronics, lighting, etc.

Some of KAZ Customers:

Certificates including:

• ISO9001
• TS16949
• UL
• RoHS
