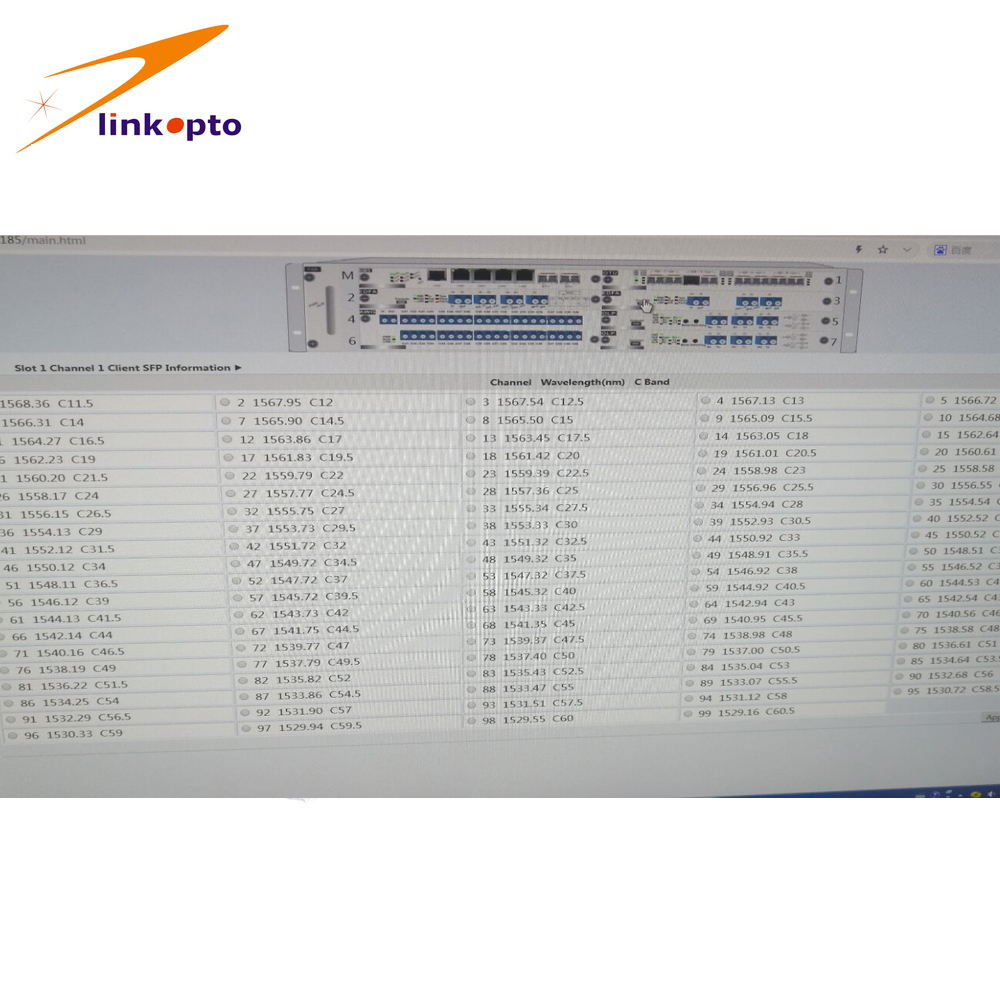

Up to 82 channels C band DWDM 10G XFP Module , 50GHz Tunable Dwdm Xfp Transceiver

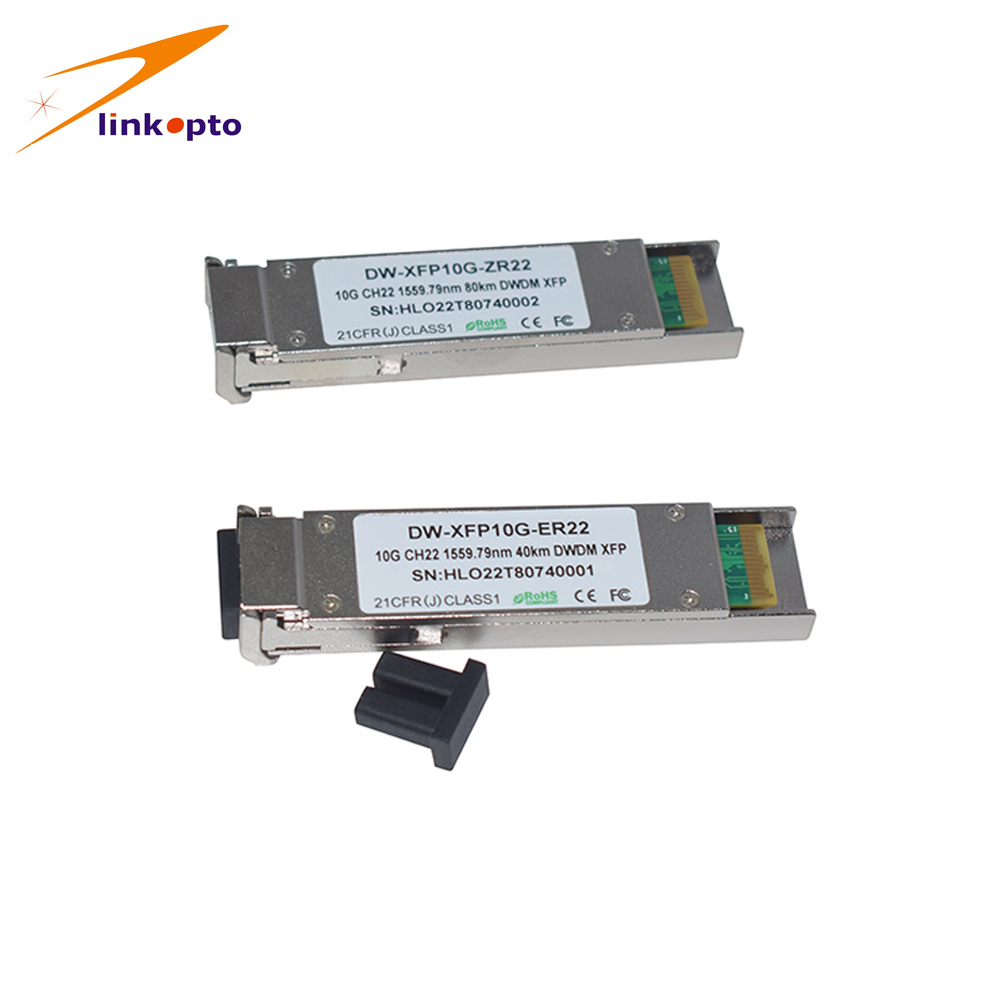

Linkopto 10G DWDM XFP Transceiver 10G XFP DWDM C-band tunable 50GHz 80km Duplex LC ,10G DWDM SFP Tunable available too

Tunable 10 Gb/s XFP transceiver is an integrated fiber optic transceiver that provides a high-speed serial link at signaling rates from 9.95 Gb/s to 11.35 Gb/s. The module complies with the 10 Gigabit small form factor pluggable (XFP) multisource agreement-MSA (INF-8077i) and Tunable XFP for ITU Frequency Grid Applications(SFF-8477).

It complies with the ITU-T G.698.1 standard with 50 GHz channel spacing for SONET/SDH, IEEE DWDM 10GBASE-ZR for 80 km reach (Ethernet), and DWDM 10GFC for 80 km reach (Fiber Channel) applications.

Features

Applications

Product Description

The transceiver integrates the receiver and transmit path on one module. On the transmit side, the 10Gbps serial data stream is recovered, retimed, and passed to a modulator driver. The modulator driver biases and modulates a C-band-tunable integrated laser Mach-Zehnder (ILMZ), enabling data transmission over single-mode fiber through an industry-standard LC connector. On the receiver side,the 10 Gbps data stream is recovered from an APD/ trans-impedance amplifier, retimed, and passed to an output driver. This module features a hot-pluggable XFI-compliant electrical interface.

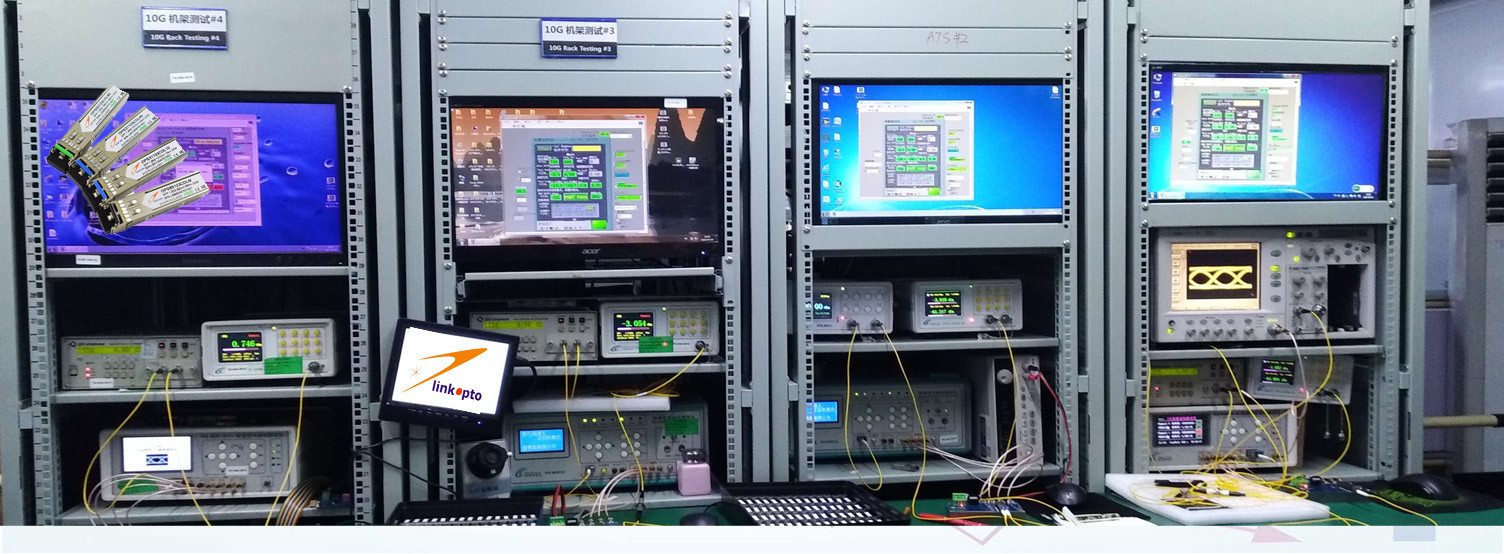

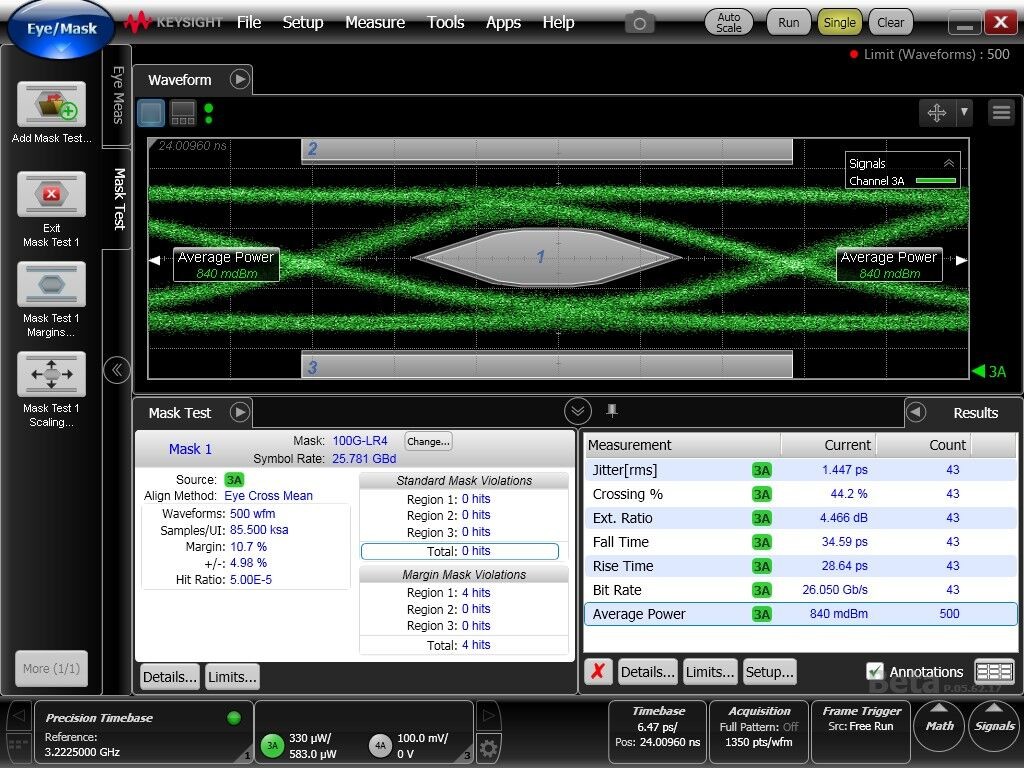

Quality Control

Related DWDM products
