| Categories | Medical Equipment PCB |
|---|---|
| Brand Name: | LEFANG |
| Model Number: | OT7004L514 |
| Certification: | ISO9001, ISO14001, ISO/TS16949, SGS, UL, RoHs,OHSAS18000 |
| Place of Origin: | Shenzhen,China |
| MOQ: | 1 Piece |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 290, 000sqm Per Month |
| Delivery Time: | 2-10 work days |
| Packaging Details: | Inner: Vacuum Packing; Dry Packing out Packing |
| Base Material/ Dielectric: | FR - 4 |
| Layer: | 4 Layers |
| surface treatment: | ENIG |
| Copper Thickness: | 1 OZ |
| Solder Mask: | Green |
| Min. Aperture: | 0.15 mm |
| Line Width/Spacing: | 0.076/ 0.076mm |
| Size: | / |
| Board thickness: | 1.6 Mm |

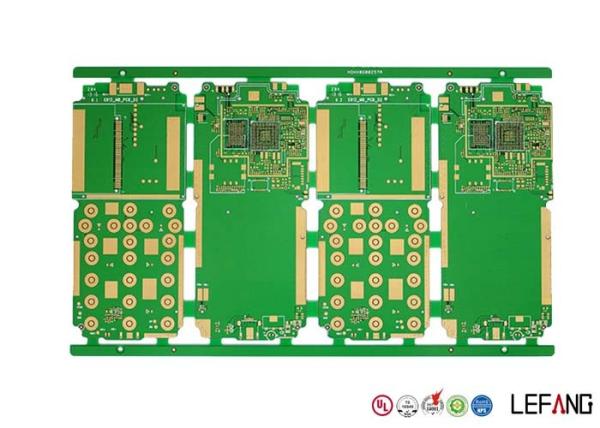

High Quality Circuit Board PCB Supplier for Medical Diagnostics Instrument
Technical Data
No. | Item | Data |
| 1 | Layer count | 1-20 layers |
| 2 | Raw material type | Halogen free FR-4, high Tg FR-4, thick copper FR-4, CEM-3, copper based, aluminum based |
| 3 | Raw material brand | Rogers,Isola,Arlon, ITEQ, Hitachi, SY, KB,etc |
| 4 | Board thickness | 0.1-6.0mm |
| 5 | Max board size | 600 mm * 700 mm |
| 6 | Solder mask | Green, red, blue, black, white, yellow |
| 7 | Surface treatment | HASL/HASL lead free , OSP, Immersion gold / silver / tin , gold plating (hard gold and soft gold), silver plating, tin plating, platinum plating, carbon ink, and ENEPIG(electroless nickel - electroless palladium - immersion gold) |
| 8 | Copper thickness | 0.05 Oz - 8 Oz (17 um-288 um ) |
| 9 | Min Line width /space | 0.065 mm / 0.065 mm |
| 10 | Finished hole size | 0.10 - 5.95 mm |
| 11 | Blind/buried via | 0.10 mm |
| 12 | Aspect ratio | 10:1 |
| 13 | PTH tolerance | + / - 0.05 mm |
| 14 | Hole location tolerance | + / - 0.05 mm |
| 15 | Impedance control tolerance | + / - 8% mm |
| 16 | Outline tolerance | + / - 0.10 mm |
How to get quick quotation?
| Step 1 Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc | ||||||||||||||||||||
| Step 2 Also please provide us the below details for quick quotation: | ||||||||||||||||||||
Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others | ||||||||||||||||||||
| Material brand: SY / KB / Rogers (optional) | ||||||||||||||||||||
| Material Specification:High Tg / copper based / aluminum based or others (optional) | ||||||||||||||||||||
| Board thickness: 0.1 - 6.0 mm | ||||||||||||||||||||
| Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um ) | ||||||||||||||||||||
| Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin | ||||||||||||||||||||
| Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc | ||||||||||||||||||||
| Board size and quantity | ||||||||||||||||||||
| ||||||||||||||||||||
SAMPLE: | ||||||||||||||||||||
| ||||||||||||||||||||
-- We have spent massively on purchasing below advanced automated production equipments.
| Equipment Name | Plant in Shenzhen | Plant in Dongguan |
| CCD exposure machine | 8 | 12 |
| AOI test machine | 6 | 8 |
| Mechanical drilling rig | 26 | 53 |
| Automatic edge finishing machine | 2 | 2 |
| Pressing machine | 2 | 2 |
| VCP | 0 | 2 |
| Electroplating line | 1 | 2 |
| CNC routing machine | 12 | 12 |
| Automatic tester | 10 | 16 |
Now send us your inquiry, and you will be replied within 8 hours!
PCBs Automotive Applications
More and more electronic components are used in automotive, including high frequency signals, microwave, millimeter-wave and radar. And all electronics components run regularly without PCBs. We can find it all round the automobile. The radar and camera with high quality PCBs can measure the distances and alert the driver to avoid the collision. Vehicle control and management system with PCBs could monitor and manage resources. Furthermore, the PCB boards are installed in the navigation devices and multimedia devices, which could help to locate the unfamiliar territory and make the driver to enjoy their long journey.
|
