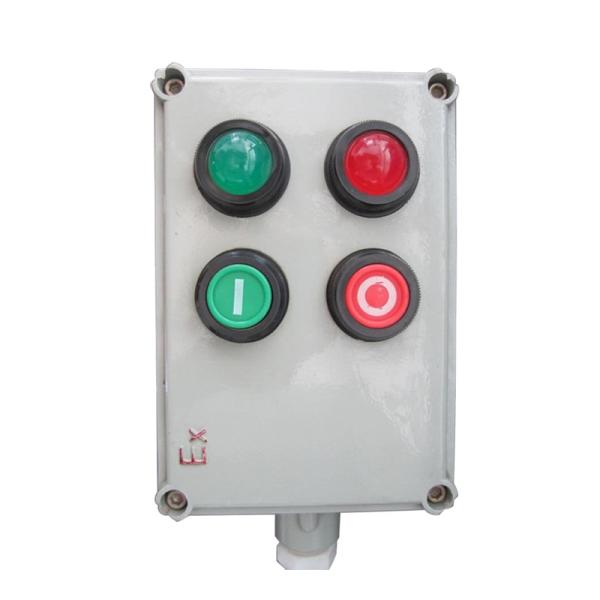

Cast Aluminum Ex Push Button Control Station , IP65 Flameproof Switch Panel

Ex push button cotrol station , flameproof switch panel IP65

Featuress:

1 Enclosure is die casted aluminum alloy with high voltage electrostatic powder coated surface after shot blasted.

2 Built-in components including indicator, pushbutton, changeover switch, ammeter, voltmeter, potentiometer, etc. And other Components as per request.

3 Over 30 types functions for changeover switch for client selection.

4 Rain resistance cover can be equipped as per request.

5 Specially designed seal structure efficiently improve ingress protection and meet the explosion protection requirements.

6 Hinge between cover and enclosure easy to maintain.

7 Steel pipe and cable wiring.

Technology Specifications:

Ex mark: Ex II 2GD Ex ed IIC T6 Ex tD A21 TA 80

Intended use: zone 1&2, 21&22

Ambient temperature: -40≤Ta≤55

Degree of protection:IP66

Rated voltage:380V

Rated current:16A

Component terminal:2.5mm2 PE terminals:4mm2

Material of enclosure: alloy plastic of static resistance

Meet the standards: IEC60079 IEC61241 EN60079 EN61241

Cable entry: one plastic cable gland M20 at the top or at the bottom

Size of enclosure:86×95mm or 86*135mm or 86*175mm or 100*175 or 100*215mm

Buit-in explosion-proof components module like : pushbutton,potentiometer,signal lamp,2-pole switch ,Ammeter,emergency pushbutton and so on .......Specially required please contact,will send you drawing

Application:

1. Can be used in hazardous areas: Zone 1 and Zone 2 .

2. Can be used in explosive gas atmospheres of Category IIA and II B IIC where the temperature classification is T6.

3. Two type of Ex d(IIB) and complex(IIC).

4. Flammable dust atmosphere.

5. Widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.
