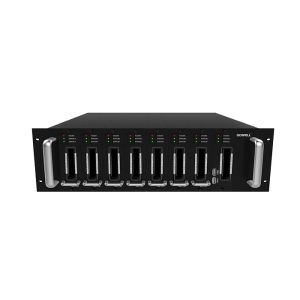

G3-S Next Generation Digital TV Monitoring System SD HD Programming Multi Screen Selection

Product Overview

The G3-S2 device is a new generation of digital broadcast program monitoring system for S2-RF signal input. Support 16 RF input, while supporting the CI card descrambling, the maximum 30 images simultaneously monitor the function. If the program signal abnormal phenomenon, will be through a variety of ways (SMS, e-mail, WeChat) to inform the management, subversion of the traditional program monitoring mode, the real unattended room, greatly reducing the radio and television operators in the equipment and human Input. G3-S2 uses Gauss Bell's newly developed "module authorization" to configure unique features such as scrolling in accordance with the authorization. It has a flexible customization and strong scalability, can be very good to meet customer demand for the current and future digital TV system.

Main Features

· Supports 16 RF inputs and 1 channel HDMI data output

· Support multi-screen selection, support 4,12,24,30 screen switch

· Support video image content monitoring (video and audio loss, video still frame, black field monitoring)

· Support audio monitoring, dynamic display volume size, color audio VU table

· Support SD, HD programming, broadcast program decoding display

· Supports CI card descrambling

· Single PCMCIA card input maximum code rate up to 72Mbps

· Supports 16 PCMCIAs, supporting separate and cascaded modes of operation

· Support program abnormal alarm (log, mail, cell phone text messages)

· Support software version, software date, Unit_No, CA_ID and other information access

· Support USB upgrade

· Use the authorization file to manage the expiration time

· Optimized scaling algorithm to ensure image quality

· Supports digital clock, date display

Support hierarchical authorization SMS real-time alarm

Product Specifications

RF Input Interface(DVB-S/S2)
Connector	F-Female
Number of connections	32
Frequency Range	950 ~ 2150MHz
Input Damping	75Ω
Demodulation method	QPSK/8PSK
Input level	-65 ~ -25dBm
Standard	EN302 307
LNB powered by	0V/+DC13V/18V Imax =400mA
0/22K	0/22KHz
IP Data Interfce
Connector	RJ-45
Number of connections	16
Physical Bandwidth	1000Mbps
Max transmission distance	Not less than 20 meters
Cable Requirements	Super 5 or 6 lines
CAM Module Interface
Connector	PCMCIA Type II
Number of connections	16
Single module maximum input bit rate	72Mbps
Descrambling mode	Independent and cascading
performance	Up to 128 programs simultaneously descrambled
CA Type	Same encryption or More encryption
Audio and Video Interface
HDMI	1
USB2.0
Number of connections	2
Video Decoding
Formatting Standards	MPEG-2 MP@HL, MPEG-4 ASP MPEG-4 AVC HP@L4.1, AVS
Resolution	576i, 480i(PAL, NTSC,SECAM) 720P, 1080i, 1080P
Aspect Ratio	4:3,16:9
Audio Decoding
Formatting Standards	MPEG-1/2/3, AC-3(Optional), HE AAC(Optional)
Sampling Rate	32 kHz, 44.1 kHz, 48 kHz
Power consumption
AC Input Voltage Range	110～240VAC
AC input frequency range	50～60Hz
Max Power Consumption	180W
environment
Operating Temperature	0℃ ~ 40℃(32℉ to 104℉)
Storage Temperature	-20 ~ 70℃(-4℉ to 158℉)
Pressure	86 ~ 106KPa
humidity	10% ~ 90%, non-condensing
Physical indicators
Product Size	L430 x W427 x H133 mm
Product Weight	19.5KG

Product Tags:


*From:	Your email address is incorrect!
*To:	Gospell Digital Technology Co.,ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Digital TV Monitoring System
Brand Name:	GOSPELL
Model Number:	G3-S
Certification:	ISO9001,FCC,CE
Place of Origin:	China
MOQ:	1
Flash:	1Gbit
VGA:	x 1
RF signal input:	x1
USB2.0:	x3
